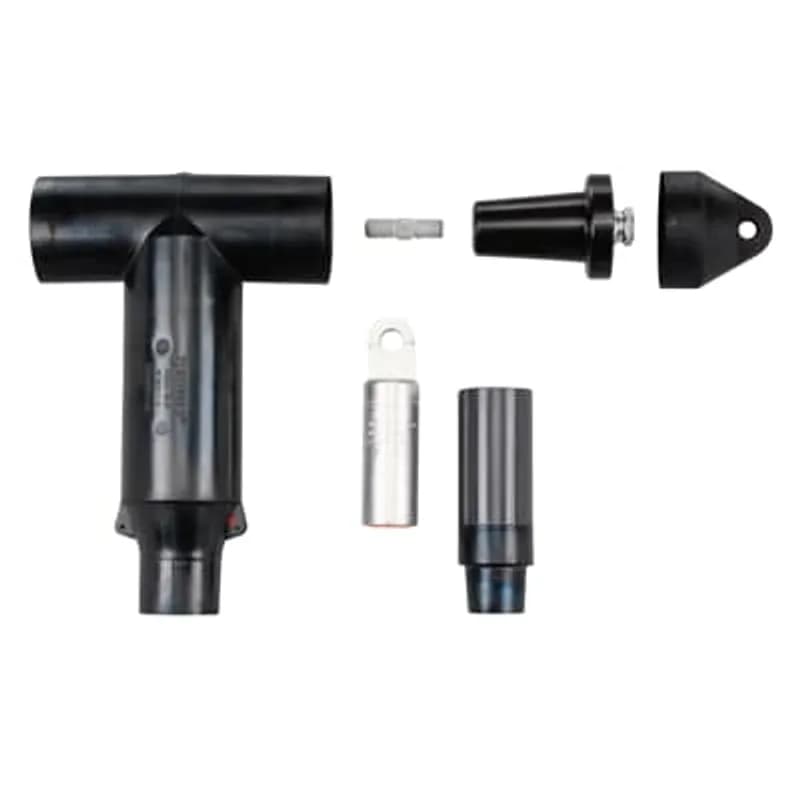

ABB Installation Products 755LR-H0230 600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable…
UPC: 783786552689
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 600A continuous current rating with 25kA symmetrical momentary rating
- Supports conductor sizes from #2 AWG to 1250 kcmil (aluminum/copper)
- Insulation diameter range: 0.760" to 2.120"
- Fully shielded, dead-front submersible molded rubber housing
- Meets ANSI/IEEE Standard 386 for 35kV applications
Specifications
Amperage Rating | 600 A |
Application | Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus |
Color | Black |
Conductor Range | #1 STR/COMPR AWG , 1/0 SOL/COMPT AWG |
Connection Type | Compression Lug |
Current Rating | 600 A |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Aluminum |
Material | Housing - EPDM-Rubber |
Series | 600 Series |
Size | Cable Insulation Diameter 0.850 inch to 1.050 inch |
Special Features | 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected Using Standard Hand Tools and Equipment in a De-energized State. Optional Accessories allow Visible External Separation, By-Pass, Isolation, Dead-Ending, Grounding, and Testing as well as Adding Taps, Surge Arrestors, and Fault Current Indicators |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
756LR-J0230-S
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded #1/ Compacted Solid 1/0 /mmSquared Compact 50. Cold-Shrinkable Jacket Seal Included.
161LR-B5230
15KV, 200 Amp, Loadbreak Elbow, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
376LR-L5270-SG3
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.180 inch to 1.465 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. 200ECS-G3 Jacket Seal and Grounding Kit Included.161LR-B5240-SG3
15 kV, Loadbreak, 200 Amps, Elbow Connector, with Sealing Kit, Cable Insulation Diameter .635 - .905 inches, Bi-Metal Lug, Conductor Size 1/0 Stranded/Compressed or 2/0 Solid/Compact.
755LR-G0260-S
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 3/0 /Compacted Solid 4/0 /mmSquared Compact 95. 200ECS Cold-Shrinkable Jacket Seal Included.755LR-H0240
600 Amp, 35KV, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.Frequently Asked Questions
What items are included in a 755LR kit?
Each kit includes an elbow connector housing, copper compression lug, stud, insulated plug with cap, lubricant, cable adapter, and installation instructions.
How is the 755LR connected or disconnected?
It can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
What materials are used in the 755LR construction?
It features 100% peroxide-cured construction, including insulation and conductive EPDM materials.
Is the 755LR elbow submersible?
Yes, it features a fully shielded, fully submersible molded rubber housing.
What standards does the 755LR meet?
The 755LR meets ANSI/IEEE Standard 386, Latest Revision.
What is the 755LR elbow connector used for?
The 755LR provides fully shielded, dead-front submersible cable connections to high-voltage apparatus.
What voltage class is the 755LR rated for?
The 755LR can be used through 35kV.
What insulation diameters does the 755LR support?
It supports insulation diameters from 0.760 inches to 2.120 inches.
What conductor sizes are compatible with the 755LR?
It is compatible with #2 AWG to 1250 kcmil for aluminum and copper conductors.
What is the continuous current rating of the 755LR?
The 755LR has a continuous current rating of 600 Amp.
How to Install 755/775LR Deadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of 755LR and 775LR deadbreak elbow connectors on 35kV class systems, including cable preparation, lug crimping, and connection to mating apparatus. All apparatus must be de-energized during installation.
Estimated time: 1h 30m
Tools needed:
Wire strippers, Measuring tape or ruler, Crimping tool, Wire brush, Torque wrench, Hotstick, Suitable sensing device (for capacitive test points)
Supplies needed:
755LR or 775LR Deadbreak Elbow Connector kit (Elbow, Cable Adapter, Compression Lug, Insulating Plug, Lubricant, Stud Prepack), Cable (appropriate type for connector), Grounding wire (at least No. 14 AWG Copper), Suitable connector (for grounding wire), HV insulated cap(s) or connector(s) (if replacing shipping covers), Silicone lubricant
- Prepare the Cable Position and Length
Position the cable so it is located in the final assembled position with enough slack to provide adequate clearance for removing the elbows. For concentric neutral cable, unwind the concentric neutral wires. Cut the cable 1-3/4 inches (45mm) from the center line of the mating product.
- Clean the Cable Outer Jacket
Clean the outer jacket of the cable a distance of 24 inches (610mm).
- Prepare the Cable for Connection
Remove the outer jacket (where applicable) and prepare the cable according to the specific cable type (e.g., non-jacketed, jacketed shield wires, flat metallic tape shield, fabric tape shield, or longitudinally corrugated shield) as shown in the provided diagrams, ensuring correct dimensions for cable insulation, semi-con shield, and tape markers. Refer to specific instructions for 20MA/21MA grounding devices, 600ECS Jacket Cable Seal, or 10TL cable shield adapter if applicable.
- Install the Cable Adapter
Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean, then lubricate cable insulation always working toward the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.
- Trim Cable Insulation and Verify Conductor Length
Remove the protruding cable insulation by cutting it even with the end of the cable adapter. Do not cut or nick the cable adapter or the conductor. The length of exposed conductor should be between 4-3/8 inches to 4-3/4 inches (111mm-121mm). Otherwise redo assembly.
- Install and Crimp the Compression Lug
For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it. Measure the 'Check Dimension' before crimping (should be less than 7 inches / 178mm). Crimp the compression lug following its supplied instructions. Wipe all excess inhibitor from the lug and cable adapter surface. The distance from the end of the lug to the cable adapter after crimping should be between 6-7/8 inches to 7-5/8 inches (175mm-194mm); otherwise redo assembly.
- Install the Elbow
Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Make sure the cable adapter is still flush with the tape marker; if not, reposition the cable adapter. Remove the tape marker.
- Prepare Mating Products
Remove protective caps from the elbow and the mating part. Hand tighten the threaded stud supplied with the elbow into the mating part, if the mating part is not equipped with a stud. Clean and lubricate both the elbow and the mating part with the lubricant supplied. DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. DO NOT ENERGIZE WHILE DISCONNECTED.
- Connect the Elbow to the Mating Part
Push the elbow onto the mating part, lining up the hole in the compression lug with the stud on the mating part.
- Connect the Opposite Mating Part
Clean and lubricate the mating part for the opposite end of the elbow. Insert the mating part into the elbow. Engage the threads and hand tighten. Torque the mating part according to the instructions supplied with that mating part.
- Install Insulating Plug and Voltage Detection Cap (If Applicable)
If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap and place it on the elbow. Push down hard until the cap snaps into place.
- Ground the Cable Shield
Insert one end of a piece of wire with ampacity at least equivalent to No. 14 AWG Copper through the grounding eye and twist to make a small loop. Do Not damage the eye. Connect the wire to ground using a suitable connector. The shield of the cable must be grounded according to the instructions supplied with the grounding device or through an alternate method. It is also recommended that the jacket of the cable be waterproofed at this point to prevent moisture from entering the cable.
- Perform a Voltage Test
The ELASTIMOLD deadbreak elbow connector is equipped with an integral capacitance test point. Remove the test point cap with a hotstick, peeling off at an angle. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Use a suitable sensing device made for capacitive test points to determine if the cable is energized. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
