UPC: 783786647460
Contact for Pricing
Overview

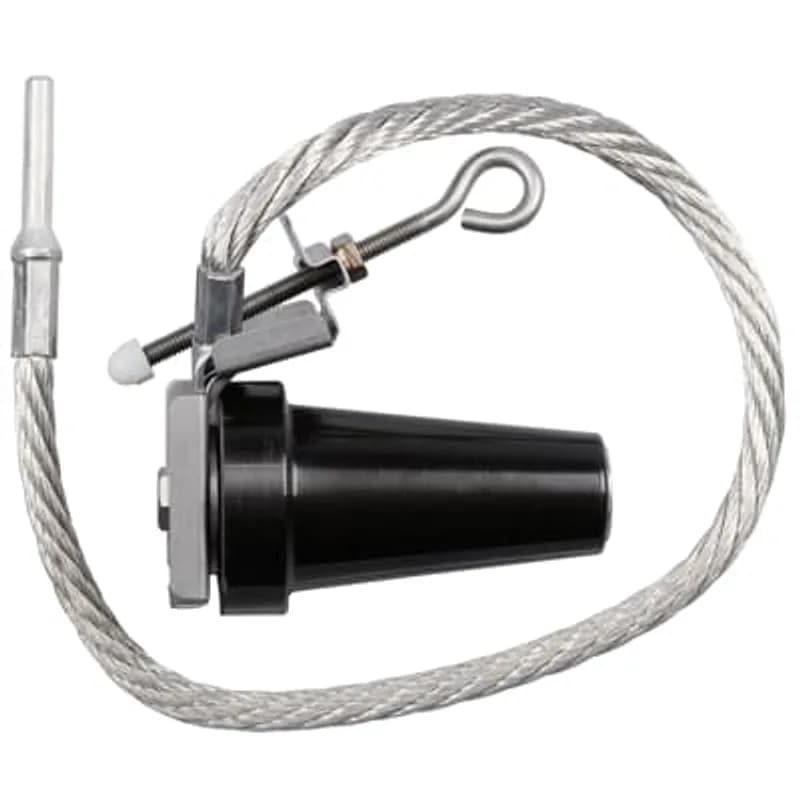

- Rated 35kV, 600 amperes for medium-voltage grounding applications
- Deadbreak interface compliant with ANSI/IEEE C119.4 standards
- Includes 2.29 ft (27.48 in) 1/0 AWG grounding cable for flexible installation
- Designed for pad-mounted transformers, switchgear, and underground distribution systems
- Enables safe connection/disconnection under load to reduce downtime
Specifications
Application | Grounding plug is inserted into a parking stand with an insulated hot stick and secured in place |
Material | Stainless Steel Mounting Bracket |
Size | (Ground Lead 1/0 AWG x 27.48 inches, 2.29 foot, 697.99 mm). Plug has 3 inch (76.2 mm) Diameter and is 5.00 inches long (127.0 mm). Center of Plug to Top of Eye Hook is 4.12 inches (104.7 mm) |
Special Features | Fully Rated 35kV, 600 Amps Deadbreak Grounding Plug. Allows visible external separation and grounding. Stainless Steel Bracket. Hot Stick Operable. 2.29 Foot (27.48 inch or 697.99 mm) 1/0 AWG Grounding Cable |
Standard | ANSI/IEEE Standard 386 |
Type | Grounding Plug |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 4.2500 L |
Package Weight (Metric) | 1.9280 kg |
14W47-Y
Watertite® Standard Molded Y Cordset, 2 Pole/3 Wire, Cordset Length 0.91m (3.0' ), NEMA 5-15, 125V
COMBINER
Solar combiners (solar panel combiner boxes) are engineered to combine power from several solar panels onto a common bus. They are specially designed for the types of wiring used in photovoltaic (PV) systems. The output would then be connected to a charge controller or inverter depending on the type of system. Solar combiners also allow for a transition to larger wires between the array and the batteries or inverter to minimize transmission voltage drop all while protecting the array. Streamline now offers a variety of premium plug and play solar combiner box solutions. Built in Streamlines UL 508-A panel shop just outside of Milwaukee Wisconsin these systems can be trusted to perform. All combiner boxes are hand-assembled using best-in-class name brand components and are built to stand up under even the harshest conditions. In addition they are highly serviceable. The polycarbonate enclosure features a full-length piano-hinged door with a non-metallic latch. They offer a variety of mounting options thanks to brass inserts on the rear wall of the enclosure and the lid. Made in the U.S.A the enclosures are UL/cUL NEMA Type 6P IP68 as well as UV and chemical resistant.
SP4
The Polaris SP4 Set Screw Plug is a replacement part that take the place of the secure removable plugs present in many Polaris pre-insulated connectors. This plug fits connectors sized for 4 AWG wires, covering the set screws used to tighten their connections. Protect the interior of your Polaris pre-insulated connectors, each port of which is pre-loaded with an oxide inhibitor to ensure a low-contact resistance connection, by guarding the set screws from outside contaminants. Polaris designs connectors for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
LCMA6-10-C
The LCMA6-10-C Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has a rounded tongue convenient for use in tight spaces and a beveled wire entry for fast and easy installation. The inspection window aids to visually assure full conductor insertion, and the tin-plated material helps to inhibit corrosion.Frequently Asked Questions
Is the 750GP grounding plug hot stick operable?
Yes, the 750GP grounding plug features hot stick operable mounting hardware.
What items are included in the 750GP kit?
Each kit contains one 750GP grounding plug, one tube of lubricant (82-08), and installation instructions (IS-0247).
What is the length of the grounding cable?
The grounding plug is equipped with a 6-foot 1/0 AWG grounding cable.
What are the voltage and continuous current ratings?
The grounding plug is rated for a 35kV voltage class and 600 Amp continuous current.
What is the model number for this grounding plug?
The model number for the 35kV, 600A deadbreak grounding plug is 750GP.
Is the 750GP grounding plug hot stick operable?
Yes, the 750GP grounding plug features hot stick operable mounting hardware.
What items are included in the 750GP kit?
Each kit contains one 750GP grounding plug, one tube of lubricant (82-08), and installation instructions (IS-0247).
What is the length of the grounding cable?
The grounding plug is equipped with a 6-foot 1/0 AWG grounding cable.
What are the voltage and continuous current ratings?
The grounding plug is rated for a 35kV voltage class and 600 Amp continuous current.
What is the model number for this grounding plug?
The model number for the 35kV, 600A deadbreak grounding plug is 750GP.
How to Install the LINK-C Deadbreak Cam Link Operable Connector System
This guide provides step-by-step instructions for the installation and initial setup of the LINK-C 600 amp deadbreak cam link operable connector system, including mounting, wiring, and grounding procedures.
Estimated time: 1h 30m
Tools needed:
Torque wrench with 1-inch hex socket, Hot stick, Wire strippers, Suitable tool for 1-inch hex portion
Supplies needed:
ELASTIMOLD supplied lubricant, 600 amp elbow, #14 AWG or #12 AWG solid copper wire, Appropriate connector for grounding wire, Desired mating 200 amp product, Hardware for alignment bracket clamps
- Prepare and Install 600 Amp Elbow
Ensure all apparatus is de-energized before beginning installation. Inspect all components for damage and compatibility. Install the 600 amp elbow onto the cable according to the separate installation instructions provided with the elbow. Ensure it will align with the standoff plug.
- Install Bushing Extender
Clean and thoroughly lubricate the apparatus bushing and both interfaces of the 600 amp bushing extender using ELASTIMOLD supplied lubricant. Install the bushing extender onto the apparatus bushing. Insert the 600ATM into the retainer contact, engage the internal hex broach, and thread into the apparatus bushing using a suitable tool applied to the 1-inch hex portion. Torque to 50-60 ft-lbs.
- Install Elbow onto Epoxy Standoff Plug
Clean and thoroughly lubricate the epoxy standoff plug and both interfaces of the 600 amp elbow with ELASTIMOLD supplied lubricant. Install the elbow onto the epoxy standoff plug. Insert the 600AMT into the retainer contact, engage the internal hex broach, and thread into the epoxy standoff plug through the compression lug hole using a suitable tool applied to the 1-inch hex portion. Torque to 50-60 ft-lbs.
- Install Alignment Bracket
Remove the bushing extender clamp and elbow clamp from the alignment bracket. Position the alignment bracket on the bushing extender 2.5 inches (63.5mm) from the grounding eye. Assemble the bushing extender clamp to the alignment bracket with the supplied hardware, alternating sides until clamp tabs are flush and tight.
- Secure Elbow in Alignment Bracket
Position the elbow in the alignment bracket so that the elbow cuff is lined up evenly with the bushing extender cuff. Assemble the elbow clamp to the alignment bracket with the supplied hardware, alternating sides until clamp tabs are flush and tight. Ensure the elbow clamp notch faces the cable entrance of the elbow.
- Install the LINK-C Connector
Clean and thoroughly lubricate both 600 ampere interfaces of the LINK-C with ELASTIMOLD supplied lubricant. Align the LINK-C so it is perpendicular to the switch faceplate when inserted. Insert the LINK-C into the bushing extender and elbow, ensuring both lever arms are inside the alignment bracket legs. Engage the pivot pin into the slots in the alignment bracket legs. While pushing inward, move the lever arms downward using a hot stick eye to engage the roller pin and move the LINK-C inward until the lever arms are perpendicular to the alignment bracket leg.
- Grounding and Mating Product Installation
Ground the elbow by feeding a #14 AWG or #12 AWG solid copper wire through the grounding eye, twisting it tight, and connecting it to ground. Clean and lubricate the 200 amp interface on the LINK-C. Ground the cable (twist concentric neutral wires or connect ground lead from 20/21MA device to ground). For three-phase installations, tie all grounds from all three phases to a common ground point. Install the desired mating 200 amp product on the 200 amp interface according to its specific installation instructions.
