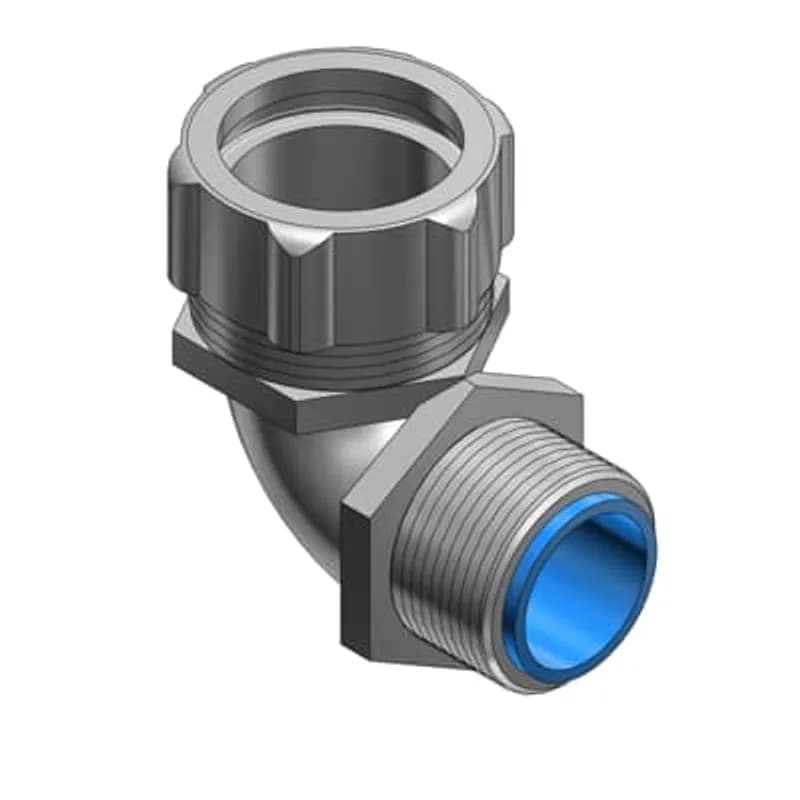

ABB Installation Products 7354 3/4 Inch 90 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate…
UPC: 786210073545
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 3/4 inch trade size with PG 21 thread for standard liquidtight conduit compatibility
- 90-degree bend design optimizes space while maintaining cable bend radius
- Steel construction with chromate finish for corrosion resistance
- Insulated design prevents electrical shorts and protects against moisture/dust
- Meets NEMA 4X and IP66/67 requirements for harsh environments
Specifications
Application | Nylon Insulated 90D Angle Fittings |
Material | Nylon Insulated |
Size | 3/4 Inch |
Special Features | CSA Certified Dusttight and Watertight. UL Listed Liquidtight |
Standard | CSA, UL E23018 |
Type | Liquidtight Flexible Metal Conduit Fittings |
Package Dimensions (L x W x H) | 3.3 IN x 5.6 IN x 4.9 IN |
Package Dimensions (L x W x H) | 8.382 cm x 14.224 cm x 12.446 cm |
Package Weight (Imperial) | 0.3500 L |
Package Weight (Metric) | 0.1590 kg |
ALAD-M506
Smart Line 45 Degree Black One-Piece Elbow with Integral Cone Seal, Material-Polyamide 6, Conduit Size NW36, Thread Size - M50x1.5
7366
1-1/4 Inch Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 367367
1-1/2 Inch Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 42
CI6603
Fitting, Straight Liquidtight, Trade Size 3/8 Inch, Knockout Size 3/8 Inch, Length 1.58 Inch, Width 1.18 Inch, Thread Length 0.53 Inch, Zinc Alloy
CI6604-IT
Fitting, Insulated Straight Liquidtight, Trade Size 1/2 Inch, Knockout Size 1/2 Inch, Length 1.52 Inch, Width 1.29 Inch, Thread Length 0.53 Inch, Zinc Alloy
CI6604
Fitting, Straight Liquidtight, Trade Size 1/2 Inch, Knockout Size 1/2 Inch, Length 1.52 Inch, Width 1.29 Inch, Thread Length 0.53 Inch, Zinc AlloyFrequently Asked Questions
What is the maximum voltage rating?
These fittings are suitable for use in electrical circuits up to 1,000 V.
What is the operating temperature range?
The working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA and -25 to +105°C (-13 to +221°F) for IEC/CE.
What ingress protection ratings do these fittings have?
They have UL Type 3, 3R, 4, 12, 13; CSA Type 3, 3R, 4, 12, 13; NEMA Type 3, 3R, 4, 12, 13; and IEC IP66, IP67 ratings.
What materials are used for construction?
Trade sizes 3/8 inches to 1-1/4 inches are steel, and 1-1/2 inches to 6 inches are malleable iron, both with Zinc Chromate finish. Seal rings and insulators are thermoplastic nylon.
Are these fittings suitable for hazardous locations?
Yes, they are suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.
What types of thread are available?
The fittings are available with NPT, ISO Metric, and PG thread types.
Are the seal rings and insulators halogen free?
Yes, the seal rings, insulators, and seal gaskets are halogen free.
What is required for ingress protection ratings?
Achieving the ingress ratings requires the use of Series 5260 Seal Gaskets.
Do these fittings come in different configurations?
Yes, they are available in straight, 45°, and 90° conduit body configurations, as well as insulated and non-insulated versions.
What standards do these fittings conform to?
They conform to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, JIC EGP1, JIC EMP1, and Federal Specifications.
How to Install T&B 7000 Series Liquidtight Connectors
This guide provides step-by-step instructions for properly installing T&B 7000 series liquidtight connectors onto flexible metallic conduit and securing them to a knockout box, ensuring high performance and reliability.
Estimated time: 15m
Tools needed:
Hacksaw, Metal jig (optional), Smooth jaw wrench (for PVC coated connectors), Torque wrench (recommended), Eye protection, Hand protection
Supplies needed:
T&B 7000 Series Liquidtight Connector, Liquidtight flexible metallic conduit, T&B 140 series locknut (for knockout applications), T&B 5260 series sealing gasket (for knockout applications), PVC cement (if gouging occurs on PVC coated connectors)
- Ensure Safety and Prepare Work Area
WARNING: Disconnect all power before beginning installation to prevent risk of shock. Wear appropriate hand protection and eye protection throughout the process. Ensure installation is performed by a qualified electrician in accordance with national and local electrical codes.
- Prepare the Flexible Conduit
Cut the flexible metallic conduit with a clean, square end. Use a metal jig and a sharp hacksaw (32 Tooth/In. no. set) or a power band saw (24-32 Tooth/In. wavy set, not more than 400'/minute). Avoid using an abrasive wheel to prevent damage to the conduit.
- Assemble the Connector Components
For 5000, 7000, and 9000 series connectors, first slide the gland nut onto the prepared conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the Safe Edge™ Cone into the conduit end, ensuring it is properly seated.
- Mount Connector to Knockout Box and Secure
For knockout applications, place a T&B 5260 series sealing gasket on the outside of the box. Insert the connector body through the knockout. Secure the connector by threading a T&B 140 series locknut onto the connector body from the inside of the box. For 7000 and 9000 series, ensure a locknut (ordered separately) is used to firmly attach the connector.
- Tighten the Connector
Thread the connector body onto the gland nut. Tighten the locknut to the body using a torque wrench to the specified values (e.g., 3/8" = 200 lb-in, 1/2" = 300 lb-in, 3/4" = 500 lb-in, 1" = 700 lb-in, 1 1/4" = 1000 lb-in, 1 1/2" = 1200 lb-in, 2" = 1600 lb-in, 2 1/2" - 4" = 1600 lb-in). For PVC coated connectors, use a smooth jaw wrench; if gouging occurs exposing metal, apply PVC cement.
