UPC: 786210073675
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview

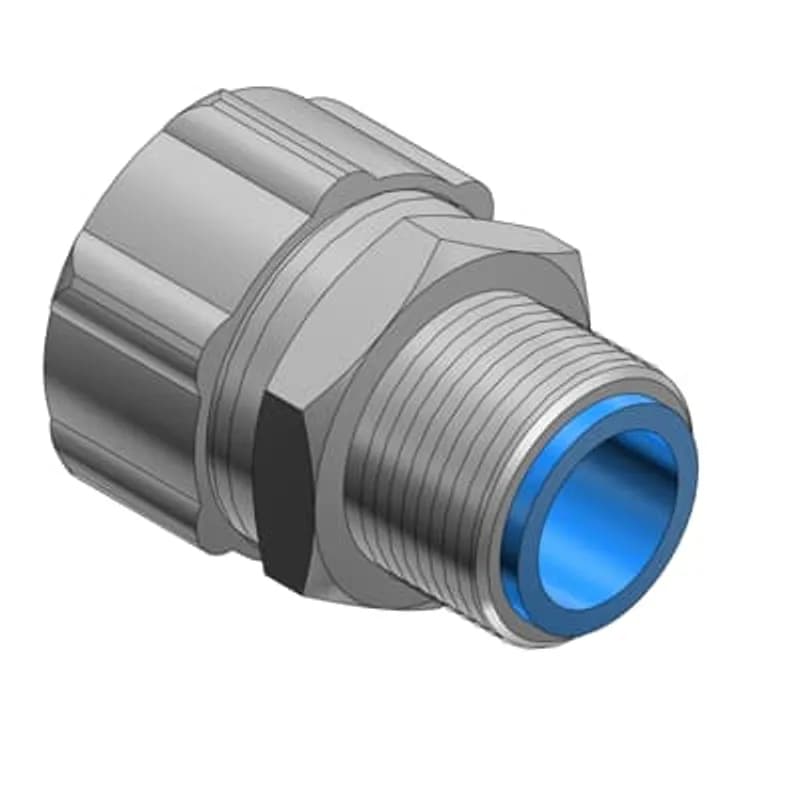

- 1-1/2 inch trade size for standard liquidtight conduit
- PG thread size 42 for broad compatibility
- Steel body with chromate finish for corrosion resistance
- Insulated throat protects conductors from abrasion
- Maintains IP66/IP67 ingress protection when installed
Specifications
Application | Nylon Insulated Straight Fittings |
Material | Nylon Insulated |
Size | 1-1/2 Inch |
Special Features | CSA Certified Dusttight and Watertight. UL Listed Liquidtight |
Standard | CSA, UL E23018 |
Type | Liquidtight Flexible Metal Conduit Fittings |
Package Dimensions (L x W x H) | 5 IN x 4.5 IN x 3 IN |
Package Dimensions (L x W x H) | 12.7 cm x 11.43 cm x 7.62 cm |
Package Weight (Imperial) | 1.0700 L |
Package Weight (Metric) | 0.4850 kg |
ALAD-M506
Smart Line 45 Degree Black One-Piece Elbow with Integral Cone Seal, Material-Polyamide 6, Conduit Size NW36, Thread Size - M50x1.5
CI6603
Fitting, Straight Liquidtight, Trade Size 3/8 Inch, Knockout Size 3/8 Inch, Length 1.58 Inch, Width 1.18 Inch, Thread Length 0.53 Inch, Zinc Alloy
CI6604-IT
Fitting, Insulated Straight Liquidtight, Trade Size 1/2 Inch, Knockout Size 1/2 Inch, Length 1.52 Inch, Width 1.29 Inch, Thread Length 0.53 Inch, Zinc Alloy
CI6604
Fitting, Straight Liquidtight, Trade Size 1/2 Inch, Knockout Size 1/2 Inch, Length 1.52 Inch, Width 1.29 Inch, Thread Length 0.53 Inch, Zinc AlloyCI6606-IT
Fitting, Insulated Straight Liquidtight, Trade Size 3/4 Inch, Knockout Size 3/4 Inch, Length 1.69 Inch, Width 1.57 Inch, Thread Length 0.53 Inch, Zinc Alloy
CI6606
Fitting, Straight Liquidtight, Trade Size 3/4 Inch, Knockout Size 3/4 Inch, Length 1.69 Inch, Width 1.57 Inch, Thread Length 0.53 Inch, Zinc AlloyCI6608
Fitting, Straight Liquidtight, Trade Size 1 Inch, Knockout Size 1 Inch, Length 2.06 Inch, Width 1.81 Inch, Thread Length 0.58 Inch, Zinc AlloyFrequently Asked Questions
What is the impact resistance rating?
The fittings meet IEC/EN 61386-1, -23 standard requirements for impact resistance, rated as Code 3 Medium; 6 Joules.
What are the available trade sizes?
The fittings are available in trade sizes from 3/8 inches to 6 inches (12mm to 153mm).
What is the maximum voltage rating?
These fittings are suitable for use in electrical circuits up to 1,000 V.
What is the operating temperature range?
The working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA and -25 to +105°C (-13 to +221°F) for IEC/CE.
What ingress protection ratings do these fittings have?
They have UL Type 3, 3R, 4, 12, 13; CSA Type 3, 3R, 4, 12, 13; NEMA Type 3, 3R, 4, 12, 13; and IEC IP66, IP67 ratings.
What materials are used for construction?
Trade sizes 3/8 inches to 1-1/4 inches are steel, and 1-1/2 inches to 6 inches are malleable iron, both with Zinc Chromate finish. Seal rings and insulators are thermoplastic nylon.
Are these fittings suitable for hazardous locations?
Yes, they are suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.
What types of thread are available?
The fittings are available with NPT, ISO Metric, and PG thread types.
Are the seal rings and insulators halogen free?
Yes, the seal rings, insulators, and seal gaskets are halogen free.
What is required for ingress protection ratings?
Achieving the ingress ratings requires the use of Series 5260 Seal Gaskets.
How to Install T&B Liquidtight Connectors for Flexible Metallic Conduit
This guide provides step-by-step instructions for the proper installation of T&B liquidtight connectors for flexible metallic conduit, ensuring a secure and reliable connection in accordance with electrical codes.
Estimated time: 30m
Tools needed:
Hacksaw (32 Tooth/ln. no. set), Metal jig (optional, for conduit cutting), Power band saw (optional, for high production), Smooth jaw wrench (for PVC coated connectors), Hand protection (gloves), Eye protection (safety glasses)
Supplies needed:
T&B Liquidtight flexible metallic conduit, T&B Liquidtight connector (e.g., 7367 series), T&B 140 series locknuts (for knockout applications, purchase separately), T&B 5260 series sealing gaskets (for knockout applications, purchase separately), PVC cement (if needed for PVC coated connectors)
- Prepare for Installation Safely
WARNING: Disconnect power before installation to prevent risk of shock. Wear hand protection and eye protection. CAUTION: This product must be installed by a qualified electrician in accordance with national and local electrical codes.
- Cut the Flexible Conduit
Cut the flexible metallic conduit with a clean, square end. Utilize a metal jig or a sharp hacksaw with a 32 Tooth/ln. no. set. For high-volume work, a power band saw with a 24-32 Tooth/ln. wavy set (max 400’/minute) is recommended. Avoid using an abrasive wheel for cutting.
- Assemble Connector Components
For 5000, 7000, and 9000 series connectors (including PVC coated 3300 series), begin by sliding the gland nut onto the flexible conduit. Then, slide the nylon sealing ring into place. Conclude this step by threading the Safe Edge™ Cone into the end of the conduit.
- Install Connector into Knockout (if applicable)
For knockout applications, position the connector body correctly on the outside of the box, observing any 'Box side' markings. Secure the connector using T&B 140 series locknuts and T&B 5260 series sealing gaskets, which are purchased separately. Note that for 7000 and 9000 series connectors, the locknut must be ordered independently.
- Tighten Gland Nut and Locknut
Securely tighten the gland nut onto the connector body, ensuring the conduit is firmly held. Consult the 'Tightening torque' table in the documentation for the precise torque value corresponding to the fitting's trade size (e.g., 3/8" requires 200 lb.-in., 1/2" requires 300 lb.-in., 3/4" requires 500 lb.-in., 1" requires 700 lb.-in., etc.). If working with PVC coated connectors, use a smooth jaw wrench to prevent damage; apply PVC cement if any metal is exposed due to gouging. Finally, ensure any locknut used is also securely tightened.
