ABB - Installation Products 5355-HT - 1-1/4 Inch 90 Degree Malleable Iron Insulated Liquidtight High Temperature Connector

ABB Installation Products 5355-HT 1-1/4 Inch 90 Degree Malleable Iron Insulated Liquidtight High Temperature Connector

UPC: 786210910550


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

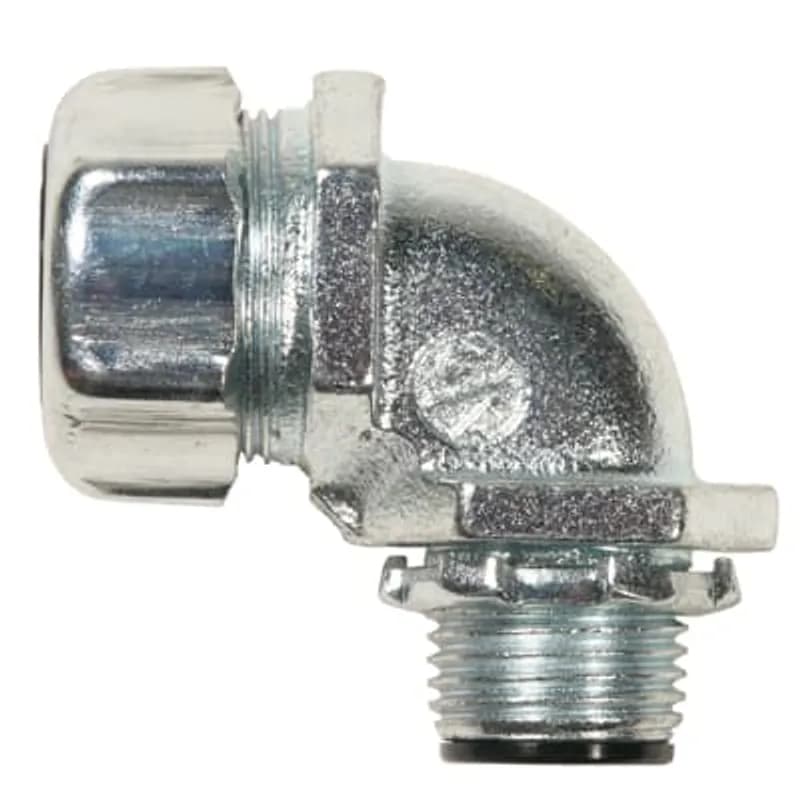

The ABB 5355-HT 1-1/4" 90° Malleable Iron Insulated Liquidtight High Temperature Connector is a rugged conduit fitting designed for industrial environments where cable protection and environmental sealing are critical. This connector features a 90° angled design to optimize space in tight enclosures while reducing bend radius stress on cables. Constructed from malleable iron with a zinc-plated finish, it provides superior durability compared to plastic alternatives and resists corrosion in harsh conditions. The black nylon insulator and sealing gasket ensure electrical insulation and maintain a liquidtight seal against oils, coolants, and chemicals. Rated for continuous operation up to 150°C (302°F), it is ideal for high-temperature applications such as welding stations, foundries, and outdoor installations. Compatible with liquidtight flexible metal conduit (LFMC) and liquidtight flexible nonmetallic conduit (LNFC) up to 1-1/4" trade size. Dimensions: A = 3.53 in, B = 2.12 in, C = 3.36 in. Standard packaging quantity: 5 units per box. The connector’s shoulder-type design with double bevel sealing ring conforms to J.I.C. requirements for reliable performance in industrial conduit systems.
  • 90° angled design optimizes space in tight enclosures and reduces cable bend stress
  • Malleable iron construction with zinc-plated finish for corrosion resistance
  • Black nylon insulator and sealing gasket for electrical insulation and liquidtight sealing
  • Rated for continuous operation up to 150°C (302°F) for high-temperature applications
  • Compatible with LFMC and LNFC up to 1-1/4" trade size; shoulder-type design with double bevel sealing ring

Specifications

Color
Black
Finish
Zinc Plating/Clear Chromate
Material
Malleable Iron
Material
Malleable Iron with Zinc-Plated Finish, Nylon Insulator
Size
1-1/4 Inch
Special Features
Double Beveled Sealing Ring Designed with 5 Unique Sealing Mechanisms and Cannot Be Installed Backwards
Type
Connectors-90 Degree
Package Dimensions (L x W x H)
9.5 IN x 6.5 IN x 4.5 IN
Package Dimensions (L x W x H)
24.13 cm x 16.51 cm x 11.43 cm
Package Weight (Imperial)
1.2500 L
Package Weight (Metric)
0.5670 kg
Liquidtight Conduit Fitting, Straight, Trade Size 2-1/2 Inch, Malleable Iron

LT250-SC

Liquidtight Conduit Fitting, Straight, Trade Size 2-1/2 Inch, Malleable Iron
Connector, Liquid Tight, 45 Degree, Size 1 Inch, Insulated Throat - 105 Degree C

452-SLTI

Connector, Liquid Tight, 45 Degree, Size 1 Inch, Insulated Throat - 105 Degree C
2 1/2 Inch 45 Degree Malleable Iron External Bonding Liquidtight Connector, Non-insulated

5248GR

2 1/2 Inch 45 Degree Malleable Iron External Bonding Liquidtight Connector, Non-insulated
3/4 Inch Aluminum Liquidtight Grounding Connector, Non-insulated

5233ALGR

3/4 Inch Aluminum Liquidtight Grounding Connector, Non-insulated
1 Inch 90 Degree Malleable Iron External Bonding Liquidtight Connector With Lay-in-lug, Non-insulated

5254GRX

1 Inch 90 Degree Malleable Iron External Bonding Liquidtight Connector With Lay-in-lug, Non-insulated
3 Inch External Bonding Liquidtight, Flexible Metal Conduit Connector, Straight, With Copper Lug for #2 to 4/0 Ground Wire, for Use In Wet Locations, Non-insulated

5239GR

3 Inch External Bonding Liquidtight, Flexible Metal Conduit Connector, Straight, With Copper Lug for #2 to 4/0 Ground Wire, for Use In Wet Locations, Non-insulated
2-1/2 Inch Aluminum Liquidtight Connector, Straight, Non-insulated

5238AL

2-1/2 Inch Aluminum Liquidtight Connector, Straight, Non-insulated
1-1/2 Inch 90 Degree Malleable Iron External Bonding Liquidtight Connector, Non-insulated

5256GR

1-1/2 Inch 90 Degree Malleable Iron External Bonding Liquidtight Connector, Non-insulated

Frequently Asked Questions

What conduit types are compatible with this connector?

The connector is designed for use with liquidtight flexible metal conduit (LFMC) and liquidtight flexible nonmetallic conduit (LNFC) up to 1-1/4" trade size.

What material is the connector made from?

The connector is constructed from malleable iron with a corrosion-resistant finish.

What is the trade size of this connector?

The connector has a 1-1/4" trade size designation.

What is the maximum operating temperature?

This connector supports continuous operation in environments up to 150°C.
