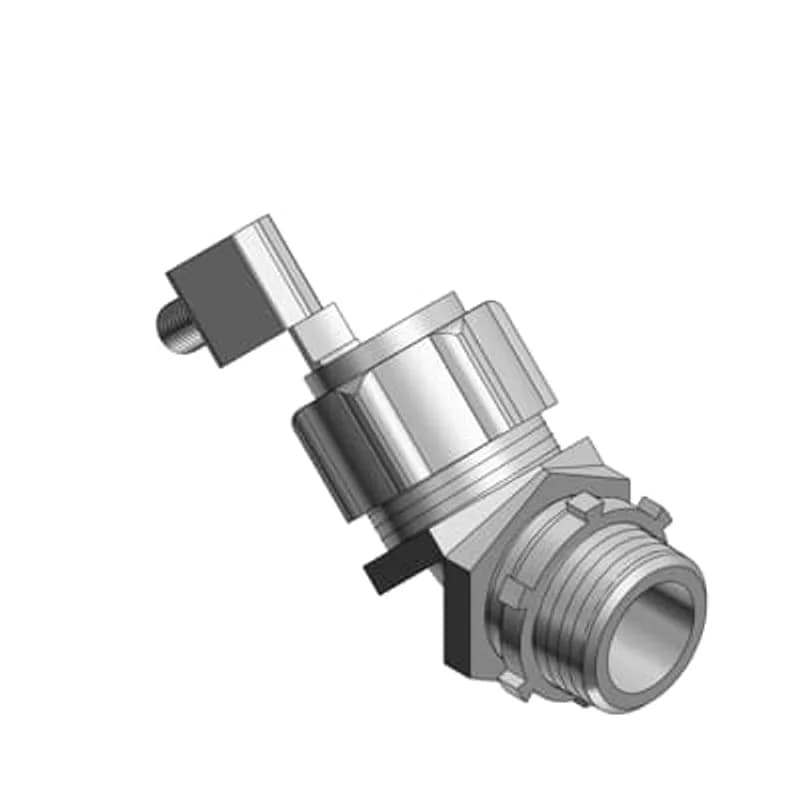

5248GR

The fittings are available in trade sizes from 3/8 inches to 6 inches (12mm to 153mm).

The general working temperature range is -20 to +105°C (-4 to +221°F) for UL and CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.

These fittings are suitable for use in electrical circuits up to 1,000 V.

Trade sizes 3/8 inches to 1 1/4 inches are steel with Zinc Chromate finish. Larger sizes, 1 1/2 inches to 6 inches, are malleable iron with Zinc Chromate finish.

Yes, the seal rings, insulators, and seal gaskets are halogen free.

They have UL Listed type ratings for Indoor (Type 4, 6, 12, 13) and Outdoor (Type 3, 3R, 4, 6). IEC ingress ratings are IP66, IP67, IP68, IP69.

Achieving the ingress ratings requires the use of Series 5260 Seal Gaskets.

Straight, 45°, and 90° fitting bodies are available, all with NPT threads.

Yes, both insulated and non-insulated versions of the fittings are available.

These fittings are suitable for liquid-tight flexible metallic raceway in outdoor or indoor locations exposed to moisture. They also protect against water, oils, cutting fluids, and mild acids.
