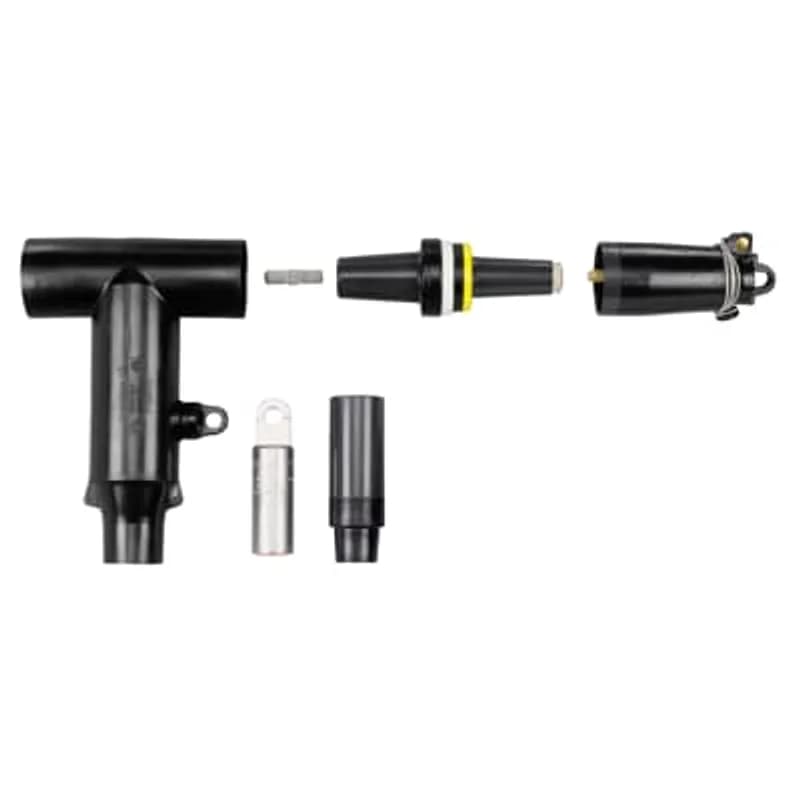

ABB - Installation Products 656ETP-N-AC04-DRG - 15kV, 600 Amp, Elbow Tap Plug, Test and Ground Connector Kit with Test Point. Includes Insulated Cap, Test and Ground Reducing Tap Plug, 600 Series Elbow Housing, Cable Adapter and Tin-Plated Aluminum ShearBolt Lug. Cable Insulation Diameter N - 1.515 to 1.780 inch. Conductor Size AC04 - 750 to 1250 kcmil Stranded/Compressed/Solid/Compact.

ABB Installation Products 656ETP-N-AC04-DRG 15kV, 600 Amp, Elbow Tap Plug, Test and Ground Connector Kit with Test Point. Includes…

UPC: 075114354264

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 656ETP-N-AC04-DRG is a comprehensive 15kV, 600 Amp Elbow Tap Plug Kit designed for reliable electrical connections and testing in medium voltage applications. This kit includes essential components for safe and efficient installation, featuring a test point for diagnostic capabilities. The core of the kit is the 600 Series Elbow Housing, engineered to accommodate a cable insulation diameter ranging from 1.515 to 1.780 inches. This ensures a secure and insulated fit for a variety of cable types. Included in this kit is a reducing tap plug, specifically designed for use with conductors ranging from 750 to 1250 kcmil. The conductor types supported include stranded, compressed, solid, and compact configurations, offering versatility for different project requirements. The tap plug itself is constructed from tin-plated aluminum, providing excellent conductivity and corrosion resistance. This material choice is critical for maintaining signal integrity and long-term performance in demanding electrical environments. For secure and dependable termination, the kit comes with a tin-plated aluminum shear bolt lug. This lug is designed for robust mechanical connection and electrical conductivity. The kit also features an insulated cap, which provides an additional layer of protection and insulation when the test point is not in use or during specific operational phases. The inclusion of a test point directly on the tap plug allows for easy and safe voltage testing without the need to disconnect the primary circuit, enhancing operational safety and efficiency. This ABB kit is a complete solution for establishing safe, testable, and grounded connections for 15kV systems. SKU: 656ETP-N-AC04-DRG. Manufacturer: ABB - Installation Products.
  • 15kV voltage rating for medium voltage applications
  • 600 Amp current rating for robust power handling
  • Includes test point for safe and efficient diagnostics
  • Accommodates cable insulation diameters from 1.515 to 1.780 inches
  • Supports 750 to 1250 kcmil conductors (stranded, compressed, solid, compact)

Specifications

Amperage Rating
600 A
Application
600 Amps, 15kV
Color
Black
Conductor Range
750 to 1250 kcmil
Connection
Shear Bolt
Insulation
True
Material
Housing - EPDM-Rubber
Size
Cable Insulation Diameter 1.515 inch to 1.780 inch
Special Features
Capacitive Test Point, Insulated Cap
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Window-Op Connector
Voltage Rating
15 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
