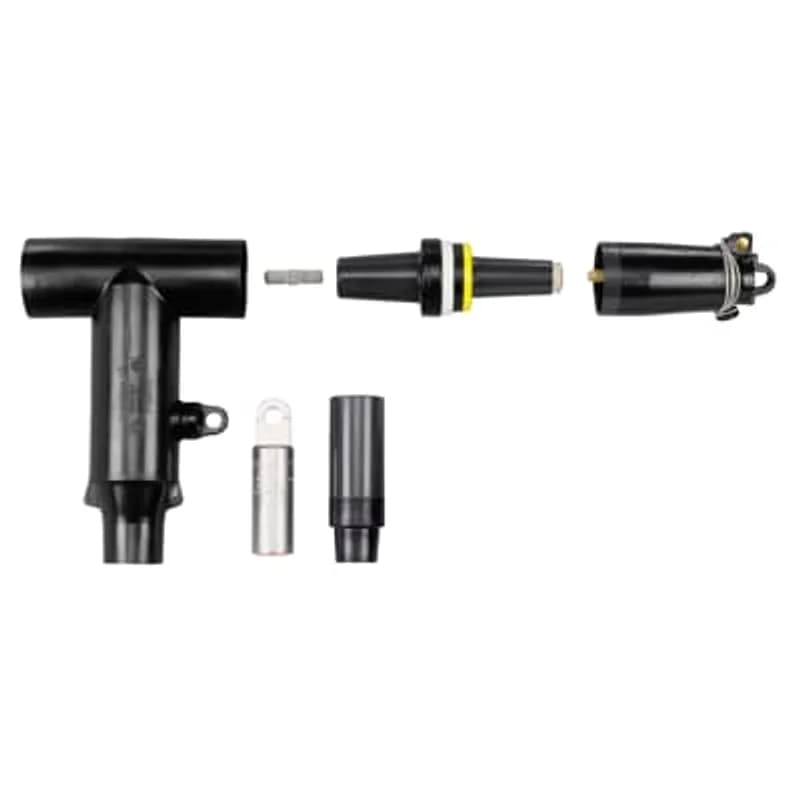

ABB - Installation Products 656ETP-M0380-DRG-S - 600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit withCapacitive Test Point, 15KV, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 700/750, Solid 900. 200ECS Jacket Seal Included.

ABB Installation Products 656ETP-M0380-DRG-S 600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit withCapacitive Test…

UPC: 783786398324


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB 600 Amp Dead Break Elbow Connector Kit (SKU: 656ETP-M0380-DRG-S) is engineered for reliable 15KV applications. It features a capacitive test point for safe and accurate testing, along with an integrated ground connector. Designed for cable insulation diameters ranging from 1.370 inches to 1.630 inches, this kit ensures a secure fit for specified cable sizes. The included aluminum compression lug accommodates conductor sizes of 700/750 AWG compressed stranded and 900 AWG solid conductors. A 200ECS jacket seal is provided to maintain environmental integrity. This dead break elbow connector is suitable for medium voltage power distribution systems where secure and tested connections are paramount. The dead break design ensures that the connector is de-energized before being disconnected, enhancing safety during maintenance and fault scenarios. The capacitive test point allows for voltage presence verification without direct contact with live conductors, further contributing to operational safety. The robust construction and precise specifications make this kit a dependable choice for utility and industrial power systems.
  • 600 Amp current rating
  • 15KV voltage class
  • Capacitive test point for safe testing
  • Integrated ground connector
  • Accommodates cable insulation diameters from 1.370" to 1.630"

Specifications

Amperage Rating
600 A
Application
600 Amps, 15kV
Color
Black
Conductor Range
700 to 750 kcmil , 900 kcmil
Connection
Compression
Connection Type
Dead Break
Current Rating
600 A
Insulation
True
Material
Aluminum
Material
Housing - EPDM-Rubber
Mounting Type
Elbow Connector
Series
656ETP
Size
1.370 inch to 1.630 inch
Size
Cable Insulation Diameter 1.370 inch to 1.630 inch
Special Features
Capacitive Test Point, Insulated Cap and Sealing Kit
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Window-Op Connector
Voltage Rating
15 kV
Voltage Rating
15kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 700/750 kcmil or Compacted Solid 900 kcmil.

656ETP-M0380-DRG

600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 700/750 kcmil or Compacted Solid 900 kcmil.
Single cable clamp 150-300mm2 for power terminal type 5

45000034

Single cable clamp 150-300mm2 for power terminal type 5
600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit withCapacitive Test Point, 15KV, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 500 /Solid 600 /mmSquared 250/300. 200ECS-G2 Jacket Seal and Grounding Kit Included.

656ETP-K0330DRGSG2-2

600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit withCapacitive Test Point, 15KV, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 500 /Solid 600 /mmSquared 250/300. 200ECS-G2 Jacket Seal and Grounding Kit Included.
600 Amp, 25KV, DeadBreak, Elbow Connctor, Test and Ground Connector Kit, with Insulated Cap, Reducing Tap Plug, Elbow Housing, Cable Adapter, and Lug, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 600 /Compacted Solid 700.

K655ETP-K0350-DRG

600 Amp, 25KV, DeadBreak, Elbow Connctor, Test and Ground Connector Kit, with Insulated Cap, Reducing Tap Plug, Elbow Housing, Cable Adapter, and Lug, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 600 /Compacted Solid 700.
600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit with Capacitive Test Point, 15KV, Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.

656ETP-F0230-DRG-S

600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit with Capacitive Test Point, 15KV, Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
600 Amp, Test and Ground Connector Kit, 35KV, DeadBreak, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.

755ETP-J0230-DRG

600 Amp, Test and Ground Connector Kit, 35KV, DeadBreak, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
600 Amp, 25KV, DeadBreak, Elbow Connctor, Test and Ground Connector Kit, with Insulated Cap, Reducing Tap Plug, Elbow Housing, Cable Adapter, and Lug, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

K655ETPL0320DRGSG3

600 Amp, 25KV, DeadBreak, Elbow Connctor, Test and Ground Connector Kit, with Insulated Cap, Reducing Tap Plug, Elbow Housing, Cable Adapter, and Lug, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
600 Amp, Test and Ground Connector Kit, 35KV, DeadBreak, 600 Amp, Test and Ground Connector Kit, 35KV, DeadBreak, Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.

755ETP-P0380-DRG

600 Amp, Test and Ground Connector Kit, 35KV, DeadBreak, 600 Amp, Test and Ground Connector Kit, 35KV, DeadBreak, Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
