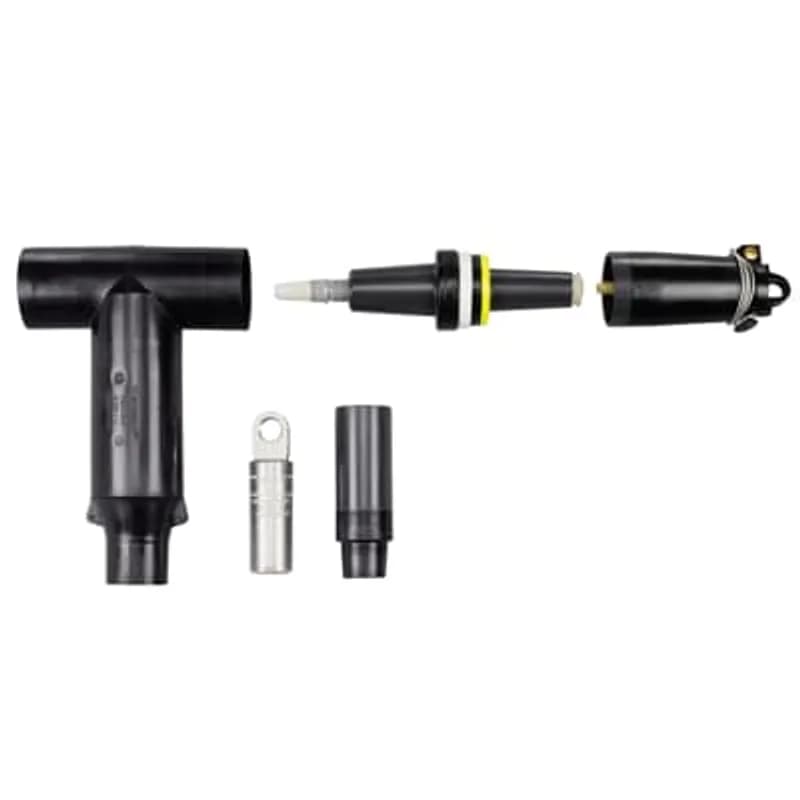

ABB Installation Products 655LRTP-J0260-DRG-S 600 Amp, 15kV, Deadbreak Stick-Op Connector Kit, With Insulated Cap. Cable Insulation…
UPC: 783786852536
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 600 Amp continuous current rating
- 15kV maximum phase-to-ground operating voltage
- Accommodates cable insulation diameters from 0.980" to 1.180"
- Includes aluminum compression lug, insulated cap, and 200ECS Cold-Shrinkable Jacket Seal
Specifications
Amperage Rating | 600 to 200 A |
Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
Color | Black |
Conductor Range | 3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG |
Enclosure | Yes, EPDM Rubber |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Special Features | Reducing Tap Plug 600 to 200 Amps. Provides an External Visible Break by Hotstick Removal of the Elbow |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Stick Op Reducing Tap Plug Connector |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |

656ETP-H0260-DRG-S
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. 200ECS Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 3/0 /Compacted Solid 4/0 /mmSquared Compact 95.
756LRTP-K0270-DRG
600 Amp, 35kV, Deadbreak, Stick-Op Connector Kit, with Capacitive test point, Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125. With Insulated Cap.
K655LRTP-K0300
600 Amp, 25kV, Stick-Op Connector Kit. Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.
756LRTP-P0410-DRGS
600 Amp, 35kV, Deadbreak, Stick-Op Connector Kit, with Capacitive test point, Aluminum Compression Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size AWG or kcmil, Compressed Stranded 1000. With Insulated Cap. Cold-Shrinkable Jacket Seal Included.
K656LRTP-P0380-DRG
600 Amp, 25kV, Deadbreak, Stick-Op Connector Kit with Test Point, Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. With Insulated Cap.
656CETPJ0270DRG-S
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125. 200ECS Cold-Shrinkable Jacket Seal Included.
675CETP-L2330
15kV, 200/900 Amp Series Loadbreak, ComboT Elbow with 200 Amp Reducing Tap Plug, Stud, Cable Adapter and Lug Kit without Test Point. Cable Insulation Diameter 1.180-1.465 inches (30.0-37.2mm). Copper Lug, 330-Conductor Size 500 kcmil Stranded/Compressed or 600 kcmil Solid/Compact or 250/300 mmsq. Includes Elbow Housing, Stud, Compression Lug, Tube of Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. No Sealing Kit.
656CETP-N0410-DRG-S
15kV, 600 Amps, Combo T Elbow with Bus Stud, Cable Adapter and Lug. Cable Insulation Diameter 1.515-1.780 inches, Aluminum Lug, Conductor Size 1000 kcmil Stranded/Compressed. Cold Shrinkable Jacket Seal.Frequently Asked Questions
What is the voltage rating of this connector?
The connector is rated for 15kV.
What is the maximum phase-to-phase voltage?
The maximum phase-to-phase voltage is 15.0 kV.
What is the momentary current rating?
The momentary current rating is 25kA Sym for 10 Cycles.
What is the DC 15-minute withstand voltage?
The DC 15-minute withstand voltage is 53 kV.
What is the AC one-minute withstand voltage?
The AC one-minute withstand voltage is 34 kV.
What is the impulse withstand rating (BIL)?
The impulse withstand (BIL) is 95.0kV (1.2 x 50 microsecond wave).
What is the maximum phase-to-ground operating voltage?
The maximum phase-to-ground operating voltage is 8.3 kV.
What standards does this connector meet?
It meets ANSI/IEEE Standard 386, Latest Revision.
What material is the connector constructed from?
The connector is constructed of EPDM molded rubber with an all copper current path.
What is the current rating of the loadbreak connector?
It has a 600/200 Amp rated loadbreak, with a 600 Amp continuous rating.
How to Install the 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides instructions for safely installing the 160DRG and 167DRG Insulated Cap with Ground Lead on 15kV class loadbreak bushing interfaces, ensuring proper insulation, shielding, and watersealing.
Estimated time: 15m
Tools needed:
Hotstick (live-line tool)
Supplies needed:
160DRG or 167DRG Insulated Cap with Ground Lead, Lubricant (supplied or ELASTIMOLD approved)
- Prepare for Installation and Ensure Safety
Before beginning, ensure all apparatus is de-energized. Inspect the contents of the package for completeness and damage, and verify all components fit properly with the cable and/or mating products. Confirm you have all required tools and maintain cleanliness throughout the procedure. This product must be installed only by competent personnel trained in high voltage electrical equipment safety practices.
- Connect the Electrostatic Grounding Wire
Connect the free end of the electrostatic grounding wire from the insulated cap to the system ground. Leave sufficient slack to allow for hot-stick operation of the insulated cap. CAUTION: Ensure the electrostatic grounding wire is positioned so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap's internal mating surface using only the supplied lubricant or an ELASTIMOLD approved lubricant. Do not substitute other lubricants as they may be harmful to this product and its mating products. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Install the Insulated Cap onto the Bushing
Firmly attach a hotstick to the pulling eye of the insulated cap. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, and straight motion, ensuring it is fully mated and the locking ring is seated. Detach the hotstick from the insulated cap.
