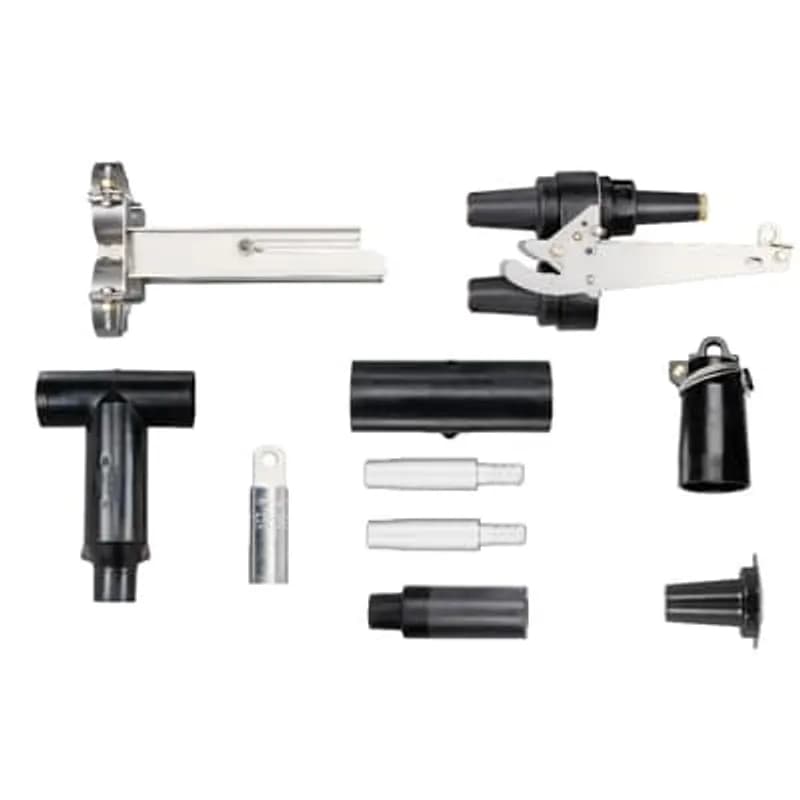

ABB - Installation Products 655LINKCLRL0360BDRG - 600 Amp, 15kV, Deadbreak Cam-Op Connector Kit with Insulated Cap, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.

ABB Installation Products 655LINKCLRL0360BDRG 600 Amp, 15kV, Deadbreak Cam-Op Connector Kit with Insulated Cap, Cable Insulation…

UPC: 783786013180


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB Installation Products 600 Amp, 15kV Deadbreak Cam-Op Connector Kit (SKU: 655LINKCLRL0360BDRG) provides a reliable connection for high-voltage applications. Designed for deadbreak operation, it features an insulated cap for enhanced safety and ease of use. The kit accommodates cable insulation diameters ranging from 1.180 inches to 1.465 inches, ensuring compatibility with a range of medium-voltage cables. The connector utilizes an aluminum compression lug for secure and efficient electrical contact. It supports various conductor sizes, including compressed stranded 650 kcmil, compacted solid 750 kcmil, and mm² compact 400. This connector is suitable for applications requiring robust and dependable power distribution in utility, industrial, and commercial settings where 15kV service is standard. The Cam-Op mechanism simplifies connection and disconnection procedures, contributing to operational efficiency. Key specifications include: * **Amperage Rating:** 600 Amps * **Voltage Rating:** 15kV * **Cable Insulation Diameter Range:** 1.180" - 1.465" * **Lug Material:** Aluminum Compression * **Conductor Compatibility:** 650 kcmil (Compressed Stranded), 750 kcmil (Compacted Solid), 400 mm² (Compact) * **Operation Type:** Deadbreak Cam-Op * **Included:** Insulated Cap
  • 600 Amp, 15kV rating for medium-voltage applications
  • Deadbreak Cam-Op connector with insulated cap for safety
  • Accommodates cable insulation diameters from 1.180" to 1.465"
  • Aluminum compression lug ensures secure electrical connection
  • Compatible with various conductor sizes: 650 kcmil, 750 kcmil, 400 mm²

Specifications

Amperage Rating
600 A
Application
External Visible Break, Testing, Grounding and Isolation
Color
Black
Conductor Range
650 kcmil , 750 to 800 kcmil
Connection
Compression
Connection Type
Deadbreak Cam-Op
Current Rating
600 A
Insulation
True
Material
Aluminum
Material
EPDM-Rubber
Size
Cable Insulation Diameter 1.180 inch to 1.465 inch
Size
20.50 inches from edge of Lever to Bushing Flange
Special Features
Easily Installed or Removed by Hotstick Operation of the Cam Action Disconnect Lever
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Cam_OP Connector Kit
Voltage Rating
15 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Window-Op Connector Kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.

656ETP-M0360

600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Window-Op Connector Kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.
Single cable clamp 150-300mm2 for power terminal type 5

45000034

Single cable clamp 150-300mm2 for power terminal type 5
600 Amp, 15kV, Deadbreak Cam-Op Connector Kit with Insulated Cap, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.

655LINKCLRJ0300BDRG

600 Amp, 15kV, Deadbreak Cam-Op Connector Kit with Insulated Cap, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.
15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size 650 kcmil Stranded Compressed or 750 kcmil Compacted Solid.

K656CY-M0360

15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size 650 kcmil Stranded Compressed or 750 kcmil Compacted Solid.
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed/Stranded 1 or Compact/Solid 1/0 or mm2 Compact 50. Cold-Shrinkable Jacket Seal Included.

K656LR-L0230-S

15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed/Stranded 1 or Compact/Solid 1/0 or mm2 Compact 50. Cold-Shrinkable Jacket Seal Included.
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size kcmil Compressed Stranded 350 or Compacted Solid 400 or mmSquared Compact 185.

756LR-L0300

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size kcmil Compressed Stranded 350 or Compacted Solid 400 or mmSquared Compact 185.
600 Amp, 15/25 kV, Separable H Joint package 4-Way with Test Point, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size 650 Stranded Compressed or 750 kcmil Compacted Solid.

K656CH-M0360

600 Amp, 15/25 kV, Separable H Joint package 4-Way with Test Point, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size 650 Stranded Compressed or 750 kcmil Compacted Solid.
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed Stranded #1 or Compacted Solid 1/0. Cold-Shrinkable Jacket Seal Included.

756LR-L0230-S

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed Stranded #1 or Compacted Solid 1/0. Cold-Shrinkable Jacket Seal Included.

Frequently Asked Questions

What is the continuous current rating?

The continuous current rating for the CAM-OP Connector Kit is 600 Amps.

What is the maximum operating voltage?

The maximum operating voltage is 8.3kV phase-to-ground and 14.4kV phase-to-phase for a 15kV voltage class.

What is the continuous current rating?

The continuous current rating for the CAM-OP Connector Kit is 600 Amps.

What is the maximum operating voltage?

The maximum operating voltage is 8.3kV phase-to-ground and 14.4kV phase-to-phase for a 15kV voltage class.

What is the maximum operating voltage?

The maximum operating voltage is 8.3kV phase-to-ground and 14.4kV phase-to-phase for a 15kV voltage class.

What is the continuous current rating?

The continuous current rating for the CAM-OP Connector Kit is 600 Amps.

How do I order the correct CAM-OP Connector Kit?

To order, determine the cable insulation diameter for the W code and the conductor size for the X code, then insert these into the catalog number.

What conductor sizes are compatible with the compression lug?

The compression lug is compatible with a range of conductor sizes, from 2 AWG to 1250 kcmil, for stranded/compressed, solid/compact, and compact universal types.

What cable insulation diameters are compatible?

Compatible cable insulation diameters range from 0.640 inches to 1.935 inches, depending on the specific W code selected.

How is the connector kit installed or removed?

The connector kit is easily installed or removed by hotstick operation of the cam action disconnect lever.

How to Install the LINK-C Deadbreak Cam Link Operable Connector System

This guide provides step-by-step instructions for the safe and proper installation of the LINK-C 600 amp deadbreak cam link operable connector system. Follow these procedures for mounting, wiring, and initial setup.

Estimated time: 2h

Tools needed:

Hot stick, Torque wrench, Suitable tool for 1 inch hex (e.g., socket), Wire strippers, 600ATM Operating Tool

Supplies needed:

ELASTIMOLD supplied lubricant, Hardware supplied with alignment bracket (hex bolts, lock washers), #14 AWG or #12 AWG solid copper wire, Appropriate grounding connector, Desired 200 amp mating product

  1. Ensure Safety and Inspect Components

    De-energize all apparatus completely before beginning installation. Inspect all parts for damage, verify ratings, and ensure compatibility with mating parts. Read the entire installation instructions and gather all required tools and supplies before starting.

  2. Install the 600 Amp Elbow onto the Cable

    Install the 600 amp elbow onto the cable according to the specific installation instructions provided with the elbow. Ensure it is positioned to align correctly with the stand-off plug.

  3. Prepare and Install the Bushing Extender

    Clean and thoroughly lubricate the apparatus bushing and both interfaces of the 600 amp bushing extender with ELASTIMOLD supplied lubricant. Install the bushing extender onto the apparatus bushing. Insert the 600ATM into the retainer contact, engage the internal hex broach, and thread into the apparatus bushing using a suitable tool applied to the 1 inch hex portion of the 600ATM. Torque to 50-60 ft-lbs.

  4. Prepare and Install the 600 Amp Elbow onto the Epoxy Standoff Plug

    Clean and thoroughly lubricate the epoxy standoff plug and both interfaces of the 600 amp elbow with ELASTIMOLD supplied lubricant. Install the elbow onto the epoxy standoff plug. Insert the 600AMT into the retainer contact, engage the internal hex broach, and thread into the epoxy standoff plug using a suitable tool applied to the 1 inch hex portion of the 600AMT. Torque to 50-60 ft-lbs.

  5. Mount the Alignment Bracket to the Bushing Extender

    Remove the bushing extender clamp and elbow clamp from the alignment bracket. Position the alignment bracket on the bushing extender 2.5 inches (63.5mm) from the grounding eye. Assemble the bushing extender clamp to the alignment bracket with the supplied hardware, alternating sides until clamp tabs are flush and tight.

  6. Secure the Elbow in the Alignment Bracket

    Position the elbow in the alignment bracket, ensuring the elbow cuff is lined up evenly with the bushing extender cuff. Assemble the elbow clamp to the alignment bracket with the supplied hardware, alternating sides until clamp tabs are flush and tight. Ensure the elbow clamp notch faces the cable entrance of the elbow.

  7. Install the LINK-C Connector

    Clean and thoroughly lubricate both 600 ampere interfaces of the Link with ELASTIMOLD supplied lubricant. Align the Link to be perpendicular to the switch faceplate when inserted. Insert the Link into the bushing extender and elbow, ensuring both lever arms are inside the alignment bracket legs. Engage the pivot pin into the slots in the alignment bracket legs. While pushing inward, move the lever arms downward using a hot stick eye to engage the roller pin and move the Link inward until perpendicular to the alignment bracket leg.

  8. Ground the System

    Ground the elbow by feeding a #14 AWG or #12 AWG solid copper wire through the grounding eye, twisting it tight, and connecting it to ground. Clean and lubricate the 200 amp interface on the Link. Ground, then install the desired mating product on the 200 amp interface per its instructions. Ground the cable by twisting concentric neutral wires together or connecting the ground lead from 20MA/21MA devices to a common ground point.
