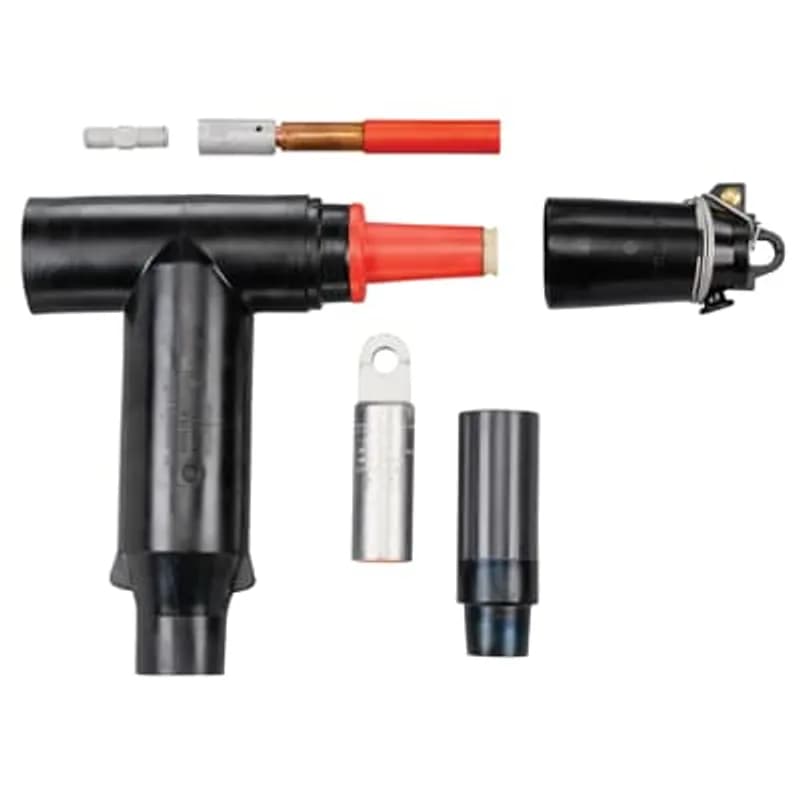

ABB - Installation Products 655CETP-L0320-DRG - 600 Amp, 15kV, Combo T Deadbreak Elbow with 200 Amp Reducing Tap Plug with Stud, Cable Adapter, Aluminum Compression Lug and Insulated Cap Kit, No Test Point, Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size kcmil 450 Compressed/Stranded or 500/550 Compact/Solid. Includes Lubricant, Installation Instructions and Crimp Chart.

ABB Installation Products 655CETP-L0320-DRG 600 Amp, 15kV, Combo T Deadbreak Elbow with 200 Amp Reducing Tap Plug with Stud, Cable…

UPC: 075114357715


Documents & Media
BrochureInstallation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 655CETP-L0320-DRG is a 600 Amp, 15kV rated Combo T Deadbreak Elbow designed for reliable medium-voltage cable connections. This unit features a 200 Amp reducing tap plug with a stud, compatible with equipment bushing threads. The Combo T design simplifies assembly by reducing the number of interfaces and inventory required, while the internal hex broach ensures proper installation torque. It meets ANSI/IEEE Standard 386 for 15kV voltage class, with ratings including 8.3kV Max Phase-to-Ground operating voltage and 14.4kV Max Phase-to-Phase. Impulse withstand is 95kV BIL (1.2 x 50 μs wave), with a 34kV AC one-minute withstand and 53kV DC 15-minute withstand. Corona extinction is 11kV AC at 3pC sensitivity. The 200 Amp loadbreak interface is rated for 200 Amp continuous and loadbreak, with a 10kA Sym 10 Cycles Momentary & Fault Close rating. The 600 Amp deadbreak connection is rated for 600 Amp continuous and 25kA Sym 10 Cycle Momentary. This kit includes a cable adapter, aluminum compression lug, and an insulated cap kit. It is designed for cable insulation diameters ranging from 1.180 inch to 1.465 inch, accommodating conductor sizes from 450 kcmil compressed/stranded to 500/550 kcmil compact/solid. Lubricant, installation instructions, and a crimp chart are included for ease of installation. The absence of a test point streamlines the design for direct cable connections. Applications include underground distribution systems, switchgear, and pad-mounted transformers.
  • 600 Amp continuous deadbreak connection rating
  • 15kV voltage class, meets ANSI/IEEE Standard 386
  • 200 Amp reducing tap plug with stud for equipment bushings
  • Accommodates cable insulation diameters from 1.180" to 1.465"
  • Includes aluminum compression lug and insulated cap kit

Specifications

Amperage Rating
600 A
Application
600 Amps, 15kV Connector
Color
Black
Conductor Range
450 kcmil , 500 to 550 kcmil
Connection Type
Deadbreak Elbow with Tap Plug
Current Rating
600 A
Environmental Conditions
All Weather Conditions
Insulation
True
Material
Housing - EPDM-Rubber
Material
Aluminum
Size
1.180 inch to 1.465 inch
Special Features
Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
ComboT Elbow
Voltage Rating
15 kV
Width
13.31 in
Width
338.074 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
600 Amp, 15KV, Stick Op Connector Kit, Fixed Bolt, Insulating Cap, Stick Op Load Break Reducing Tap Plug, Elbow Housing, Cable Adapter and Threaded Lug, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550.

655LRTP-K0320

600 Amp, 15KV, Stick Op Connector Kit, Fixed Bolt, Insulating Cap, Stick Op Load Break Reducing Tap Plug, Elbow Housing, Cable Adapter and Threaded Lug, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550.
600 Amp, 25KV, DeadBreak, Elbow Connctor, Test and Ground Connector Kit, with Insulated Cap, Reducing Tap Plug, Elbow Housing, Cable Adapter, and Lug, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included.

K655ETP-M0330-DRG-S

600 Amp, 25KV, DeadBreak, Elbow Connctor, Test and Ground Connector Kit, with Insulated Cap, Reducing Tap Plug, Elbow Housing, Cable Adapter, and Lug, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included.
600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit with Capacitive Test Point, 15KV, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 500 /Solid 600 /mmSquared 250/300.

656ETP-L0330-DRG

600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit with Capacitive Test Point, 15KV, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 500 /Solid 600 /mmSquared 250/300.
900 Amp, DeadBreak, 15KV, Window-Op Elbow Kit, Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.

675ETPSP-L2380

900 Amp, DeadBreak, 15KV, Window-Op Elbow Kit, Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit withCapacitive Test Point, 15KV, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 450 /Solid 500/550. 200ECS-G2 Jacket Seal and Grounding Kit Included.

656ETP-K0320DRGSG2-2

600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit withCapacitive Test Point, 15KV, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 450 /Solid 500/550. 200ECS-G2 Jacket Seal and Grounding Kit Included.
900 Amp, DeadBreak, 15KV, Window-Op Elbow Kit, Copper, Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.

675ETPSP-M2380-DRG

900 Amp, DeadBreak, 15KV, Window-Op Elbow Kit, Copper, Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
600 Amp, Dead Break, Elbow Connector, Window-Op Connector Kit with Capacitive Test Point, 15KV, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.

656ETP-H0270

600 Amp, Dead Break, Elbow Connector, Window-Op Connector Kit with Capacitive Test Point, 15KV, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit withCapacitive Test Point, 15KV, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 700/750, Solid 900. 200ECS Jacket Seal Included.

656ETP-M0380-DRG-S

600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit withCapacitive Test Point, 15KV, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 700/750, Solid 900. 200ECS Jacket Seal Included.

Frequently Asked Questions

Does this elbow include installation instructions?

Yes, the kit includes installation instructions and a crimp chart for proper installation.

Is a test point included with this elbow?

No, this elbow does not include a test point.

What is the maximum operating voltage for this elbow?

The elbow is rated for a maximum operating voltage of 15kV.

What cable insulation diameters are compatible?

The elbow is compatible with cable insulation diameters ranging from 1.180 inch to 1.465 inch.

What conductor sizes does this elbow support?

The elbow supports 450 kcmil compressed/stranded or 500/550 kcmil compact/solid conductors.

What is the tap plug rating?

The elbow includes a 200 Amp reducing tap plug with stud for secondary connections.

How to Install 655/656/675/676CETP Deadbreak Elbow Connectors

This guide provides step-by-step instructions for the safe and proper installation of 655/656/675/676CETP series deadbreak elbow connectors, including cable preparation, component assembly, and connection to mating apparatus. Adhere to all safety warnings.

Estimated time: 1h 30m

Tools needed:

Crimp tool, Wire brush, 600AT assembly tool (for products dated Sep 30, 2013 or earlier), 600ATM assembly tool (for products dated Oct 1, 2013 or later), Hotstick, Suitable sensing device (for capacitive test points), Wire strippers

Supplies needed:

Elbow, Cable Adapter, Compression Lug, Lubricant (supplied), Vinyl plastic tape, Tape retainer (if fabric tape shield), Tape marker, 10TL cable shield adapter (if UNISHIELD® or lead sheath cable), Wire (at least No. 14 AWG Copper), Suitable connector (for grounding wire), DR(G), ESA, GLR, or LR (for tap plug interface, if applicable), Insulated cap (if applicable), HV insulated cap(s) or connector(s) (to replace shipping covers), Waterproofing material (for cable jacket), Silicone grease

  1. De-energize Apparatus and Verify Safety

    Ensure all apparatus is de-energized during installation or removal of parts. For loadbreak products, follow operating instructions. All deadbreak connectors must be de-energized before operation. Secure all 200A deadbreak connectors mechanically with bails when connected. Do not touch or move energized products in the work area. Failure to follow these instructions will result in damage to the product and serious or fatal injury.

  2. Inspect Components and Gather Tools

    Check all package contents to ensure they are complete and undamaged. Verify all components for proper fit with the cable and/or mating products. Have all required tools at hand and maintain cleanliness throughout the procedure. If the product is supplied with protective shipping cover(s), remove them and replace with the appropriate HV insulated cap(s) or connector(s) before submerging or energizing the circuit.

  3. Position Cable and Prepare for Cutting

    Position the cable so it is located in the final assembled position with enough slack to provide adequate clearance for removing the elbows. For concentric neutral cable, unwind the concentric neutral wires. Cut the cable 1-3/4” (45mm) from the centerline of the mating product.

  4. Clean Cable Outer Surface

    Clean the outer surface of the cable for a distance of 24” (610mm) or up to the bent-back concentric neutral wires.

  5. Prepare Cable Outer Jacket and Shield

    Remove the outer jacket to the dimension shown in the instructions. Fold back shield wires. Depending on the cable type (flat metallic tape, fabric tape, longitudinally corrugated, UNISHIELD®, lead sheath, or semi-con), remove the shield and install tape markers or retainers as specified. If using UNISHIELD® or lead sheath cable, a 10TL cable shield adapter is required; refer to its instructions. Do not cut or nick the cable insulation during this process.

  6. Install Cable Adapter

    Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4” (6mm) back. Thoroughly clean, then lubricate (using the supplied lubricant) the cable insulation, always working toward the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.

  7. Prepare Conductor Length

    Remove the protruding cable insulation by cutting it even with the end of the cable adapter. Do not cut or nick the cable adapter or the conductor. The length of exposed conductor should be 4 3/8” – 4 11/16” (111mm – 119mm). If the length is outside this range, redo the assembly.

  8. Crimp Compression Lug

    For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it into the compression lug. Measure the “Check Dimension” before crimping (it should be less than 6 1/2” (165mm)). Crimp the compression lug following the crimping instructions supplied with the lug. Wipe all excess inhibitor from the compression lug and cable adapter surface after crimping. The distance from the end of the compression lug to the cable adapter after crimping should be 6 1/2” – 7 1/4” (165mm – 184mm). If not, redo the assembly.

  9. Install Elbow onto Cable Adapter

    Lubricate (using the supplied lubricant) the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until the elbow cannot advance further. Make sure the cable adapter is still flush with the tape marker. If not, reposition the cable adapter. Remove the tape marker.

  10. Connect Elbow to Mating Product

    DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. DO NOT ENERGIZE WHILE DISCONNECTED. Remove protective caps from the elbow and the mating part. Install the stud into the apparatus by hand until fully seated. Clean and lubricate both the elbow and the mating part with the supplied lubricant. For products dated September 30, 2013 or earlier, use the 600AT assembly tool to torque the contact assembly to 19-25 foot/pounds. For products dated October 1, 2013 or later, use the 600ATM assembly tool to tighten the contact assembly to 50-60 foot/pounds, DO NOT EXCEED 60 FOOT POUNDS TORQUE.

  11. Ground the Cable Shield and Waterproof Jacket

    Insert one end of a piece of wire with ampacity at least equivalent to No. 14 AWG Copper through the grounding eye and twist to make a small loop. Do not damage the eye. Connect this wire to ground using a suitable connector. The shield of the cable must be grounded; ground according to the instructions supplied with the grounding device or an alternate method. It is also recommended that the jacket of the cable be waterproofed at this point to prevent moisture from entering the cable.

  12. Install Tap Plug Interface (Optional)

    If using a tap plug interface, clean and lubricate (using the supplied lubricant) the entire loadbreak interface and either a DR(G), ESA, GLR, or LR of the appropriate voltage class. Install the DR(G), ESA, GLR, or LR to the tap plug interface following the instructions supplied with each of these products.

  13. Verify Full Seating

    Complete assembly of an insulated cap or elbow is indicated by no portion of the colored interface sleeve being visible when viewed from the side.

  14. Perform Voltage Test (656CETP Only)

    If using a 656CETP, remove the test point cap with a hotstick (peel off at an angle, rather than pulling directly). WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment. Use a suitable sensing device made for capacitive test points to determine if the cable is energized. Contamination, moisture, or wrong equipment can give a false “no voltage” indication. Treat the elbow as energized until confirmed by other means. After testing, clean, lubricate (with silicone grease), and replace the cap.
