UPC: 075114215510
Documents & Media
Contact for Pricing
Overview

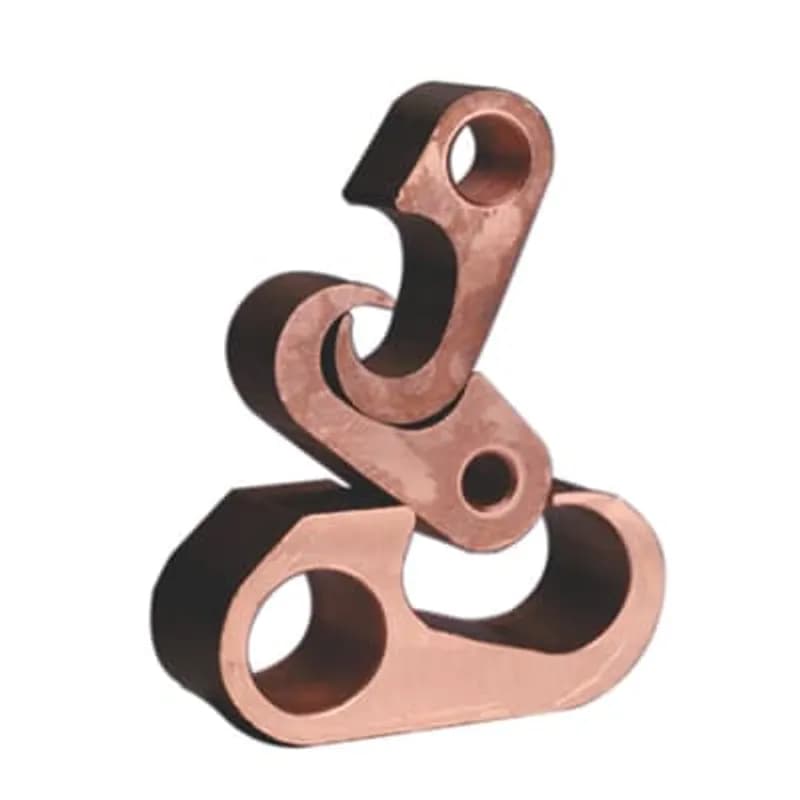

- Figure 6 Copper Compression Ground Tap Connector
- Application Main: 5/8 inch Rod
- Application Tap: 1/0 Stranded - 2/0 Stranded
- Die: 15506SS
- Dimensions: Width 1-1/2", Height 1-31/32"
Specifications
Conductor Range | 1/0 Str - 2/0 Str |
Material | Copper |
Special Features | E-Z-Ground® connectors are designed for direct burial and offer a safe, efficient alternative to exothermic welding products |
Standard | UL E3060, IEEE837-2014 |
Type | Figure 6 Copper Compression Ground Tap Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.6300 L |
Package Weight (Metric) | 0.2860 kg |
13682
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 204210MT Dragon Tooth Terminals, Brown. .301/.289 Gaging
RDC1/0
Ratchet Drive Crimping Tool APPLICATIONS: Ratchet Drive Crimping Tool is for non-insulated terminals from 6 to 1/0 AWG and insulated terminals from 22 to 8 AWG. Rugged, compact, and lightweight. Requires minimum effort due to ratchet action, ensuring an excellent crimp every time. FEATURES: TYPE: Insulated and Uninsulated ACTION: Ratchet INSULATED USE: Terminals 22 to 8 AWG NON-INSULATED USE: Terminals 6 to 1/0 AWG MANUFACTURER: NSi Industries PART NUMBER: RDC 1/0 UPC: 662381055309
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
F4-PS-W-NP
Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
Frequently Asked Questions
What size main rod does the 54860N connector accept?
The ABB 54860N Figure 6 Copper Compression Ground Tap Connector is designed to accept a 5/8 inch main rod.
What range of stranded conductors can be used for the tap connection?
The ABB 54860N connector accommodates tap connections for stranded conductors ranging from 1/0 AWG to 2/0 AWG.
What are the physical dimensions of the 54860N ground tap connector?
The ABB 54860N connector has a width of 1-1/2 inches and a height of 1-31/32 inches.
What is the specified die number for the 54860N connector?
The ABB 54860N Figure 6 Copper Compression Ground Tap Connector uses die number 15506SS.
What manufacturer produces the 54860N ground tap connector?
The 54860N Figure 6 Copper Compression Ground Tap Connector is manufactured by ABB - Installation Products.
How to Install the 54860N Ground Grid Connector
This guide provides step-by-step instructions for safely installing the 54860N ground grid connector onto a 5/8 inch ground rod and connecting 1/0 STR-2/0 STR electrical cables.
Estimated time: 30m
Tools needed:
Rough cloth, Wire brush, Knurling tool 240-31565-94 (optional), Hydraulic crimping tool (e.g., 13100A, TBM14M, TBM15), Die 15506
Supplies needed:
54860N Ground grid connector, 5/8 inch ground rod, Electrical cable (1/0 STR-2/0 STR)
- Prioritize Safety and Professional Installation
WARNING: Disconnect all power before beginning the installation to prevent risk of electrical shock. CAUTION: Ensure a qualified electrician performs this installation in accordance with all national and local electrical codes. Confirm the 5/8 inch ground rod is already driven to its final depth before proceeding with the connector installation.
- Prepare the Electrical Cable(s)
Clean all visible dirt from the electrical cable(s) using a rough cloth or brush. Achieve a bright copper finish on the cable(s) by wire brushing or using a similar process to ensure optimal conductivity.
- Optional: Prepare Smooth Ground Rod
If working with a smooth ground rod, use knurling tool 240-31565-94 to prepare the surface. This step is optional and may not be necessary for all ground rod types.
- Insert Cable(s) into Connector
Carefully insert the prepared electrical cable(s) into the 54860N ground grid connector. Verify that the cable end(s) protrude at least 3/4 inch beyond the connector opening to ensure a secure connection.
- Crimp the Connector
Select an appropriate hydraulic crimping tool (e.g., 13100A, TBM14M, TBM15) and install the specified die 15506. Crimp the connector onto the cable(s) and ground rod, performing 3 crimps as illustrated in Figure 2 of the product documentation to secure the connection.
