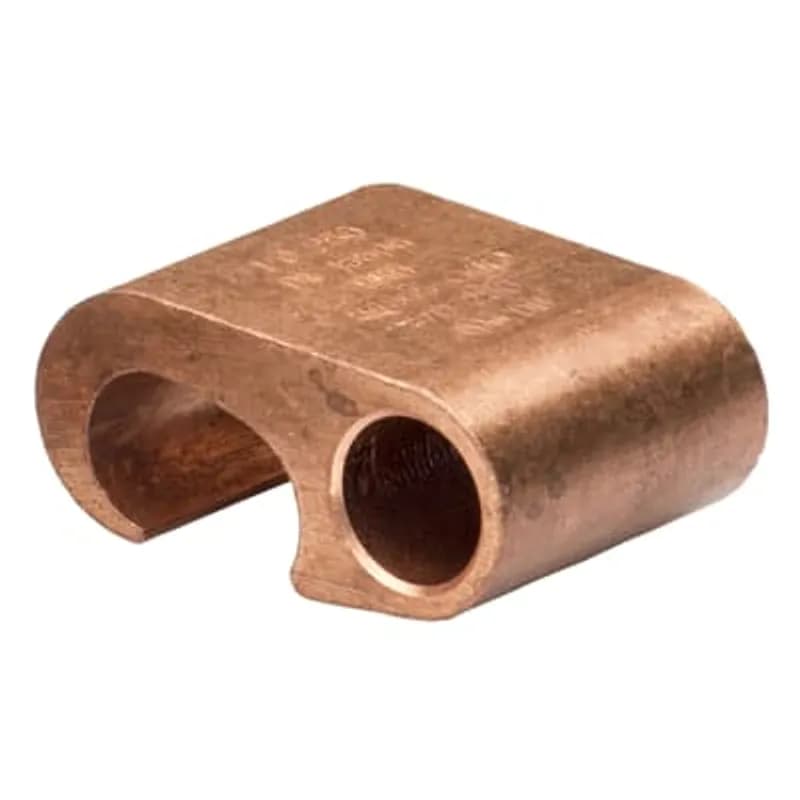

ABB Installation Products 54865-CKN Figure 6 Copper Compression Ground Tap Connector - Application Main 5/8 inch Rod…
UPC: 075114215497
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Connects 5/8-inch ground rod to 3/0 AWG stranded or 250 kcmil conductor
- Copper construction for high conductivity and corrosion resistance
- Requires pre-crimping ground rod with ABB Die 15506SS (45H)
- Dimensions: 1.5" width x 2.1875" height
- Meets NEC Article 250 and UL 467 grounding standards
Specifications
Conductor Range | 3/0 Str - 250 kcmil |
Insulation | None |
Material | Copper |
Special Features | E-Z-Ground® connectors are designed for direct burial and offer a safe, efficient alternative to exothermic welding products |
Standard | UL E3060, IEEE837-2014 |
Type | Figure 6 Copper Compression Ground Tap Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.6300 L |
Package Weight (Metric) | 0.2860 kg |
2D-8
Non-Insulated Butt Splice, Length 0.99 Inch, Width 0.27 Inch, Wire Range 10-8 AWG, Copper, Tin Plated
PAA12-B1
Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 4/0-2 ASCR 4/0 Str.-2 Sol. AL/CU, Tap: 4/0-2 ASCR 4/0 Str.-2 Sol. ALCU
PAE4141-9-P-7
Parallel Extruded Type Groove Clamp, Tin Plated, Pre-fillerd with Contax Inhibitor, Conductor Range Main 4/0 ACSR - #2 Solid, #4-#6 AR, TAP 4/0 ACSR - #2 Solid, #4-#6 AR, Aluminum Hardware Option 7.
How to Install the 54865-CKN Ground Grid Connector
This guide provides step-by-step instructions for safely installing the 54865-CKN ground grid connector onto a ground rod and cable, ensuring compliance with IEEE 837-2014.
Estimated time: 15m
Tools needed:
Rough cloth or brush, Wire brush, Hydraulic crimping tool (e.g., 13100A, TBM14M, TBM15 series, Y750/Y35/Y39, Y45, Y46), Crimping die 15526 (45H), Crimping die 15506, Optional: Knurling tool 240-31565-94
Supplies needed:
54865-CKN Ground Grid Connector, 5/8 inch Ground Rod, 3/0 STR-250 MCM Cable
- Ensure Safety and Prepare Ground Rod
WARNING: Risk of shock, disconnect power before installation. CAUTION: This product should be installed by a qualified electrician in accordance with national and local electrical codes. Ensure all power is disconnected from the area. Drive the ground rod to its final depth before proceeding with connector installation.
- Pre-Crimp the Ground Rod
For 54865-CKN, to comply with IEEE 837-2014, the 5/8 inch ground rod must be pre-crimped. If the ground rod is smooth, optionally use knurling tool 240-31565-94. Then, using a hydraulic crimping tool and die 15526 (45H), pre-crimp the ground rod as shown in Figure 1 of the documentation.
- Prepare the Cable
Clean the cable thoroughly with a rough cloth or brush to remove all visible dirt. Follow this by using a wire brush or similar process to achieve a bright copper finish on the cable ends.
- Insert Cable into Connector
Carefully insert the cleaned cable into the 54865-CKN connector. Ensure that the cable end(s) protrude at least 3/4 inch beyond the connector opening.
- Crimp the Connector
Using a suitable hydraulic crimping tool (e.g., 13100A, TBM15 series) and the specified die 15506, perform three crimps on the connector as illustrated in Figure 2 of the documentation to securely fasten the cable and ground rod connection.
