ABB - Installation Products 54808 - Copper Two-Way Splice, Long Barrel, Max 35kV, Wire Size 1 AWG, Length 2.0 Inches, Diameter 0.49 Inch, Tin Plated, Die Code 37, Die Color Code Green
ABB - Installation Products

54808

UPC: 786210548081

Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 20

Multiplier: 20

*Contact for lower quantities*

Overview

The ABB Copper Two-Way Splice (SKU: 54808) is a tin-plated copper electrical connector engineered for secure, high-voltage splicing of stranded copper conductors in industrial, utility, and commercial applications. This splice supports copper wire sizes up to 1 AWG with a maximum voltage rating of 35kV and is temperature-rated to 90°C when crimped with ABB’s specified tools. The long barrel design provides enhanced wire pull-out strength and accommodates multiple crimps for long-term reliability. The green die code (37) ensures compatibility with ABB’s crimping tools, including the 7-ton and 127-series indenters, and the tin plating inhibits corrosion for extended service life. UL Listed and CSA Certified, this splice meets Telcordia NEBS Level 3 requirements, making it ideal for telecommunications, power distribution, and renewable energy systems where durability and electrical integrity are critical. The 2.0-inch length and 0.49-inch diameter provide ample space for secure conductor insertion, while the two-way design simplifies parallel connections. For optimal performance, use with ABB’s die code 37 crimping tools to achieve consistent, code-compliant installations.
  • Voltage rating: Up to 35kV with 90°C temperature rating
  • Wire size: Supports 1 AWG stranded copper conductors
  • Material: Tin-plated copper for corrosion resistance and conductivity
  • Dimensions: 2.0" length, 0.49" diameter, long barrel design
  • Certifications: UL Listed and CSA Certified, NEBS Level 3 compliant
  • Tool compatibility: Green die code 37 (ABB 7-ton and 127-series indenters)
  • Applications: Industrial, utility, commercial, and renewable energy systems

Specifications

Application
Applications certified to 600 V and recommended up to 35 kVÂ¥
Application
Applications certified to 600 V and recommended up to 35 kV¥
Color
Green
Connection Type
Splice
Finish
Tin-Plated
Material
Copper
Material
Copper, Tin Plated
Size
1 AWG, Length 2.0 Inches, Diameter 0.49 Inch
Special Features
Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost
Standard
UL E9809, CSA 4503
Standard
UL E9809, CSA 4503 / UL E9809, CSA 4503
Type
Splice Connector
Voltage Rating
600 V
Voltage Rating
35 kV
Package Dimensions (L x W x H)
3.3 IN x 2.8 IN x 2.3 IN
Package Dimensions (L x W x H)
8.382 cm x 7.112 cm x 5.842 cm
Package Weight (Imperial)
0.050 L
Package Weight (Metric)
0.023 kg

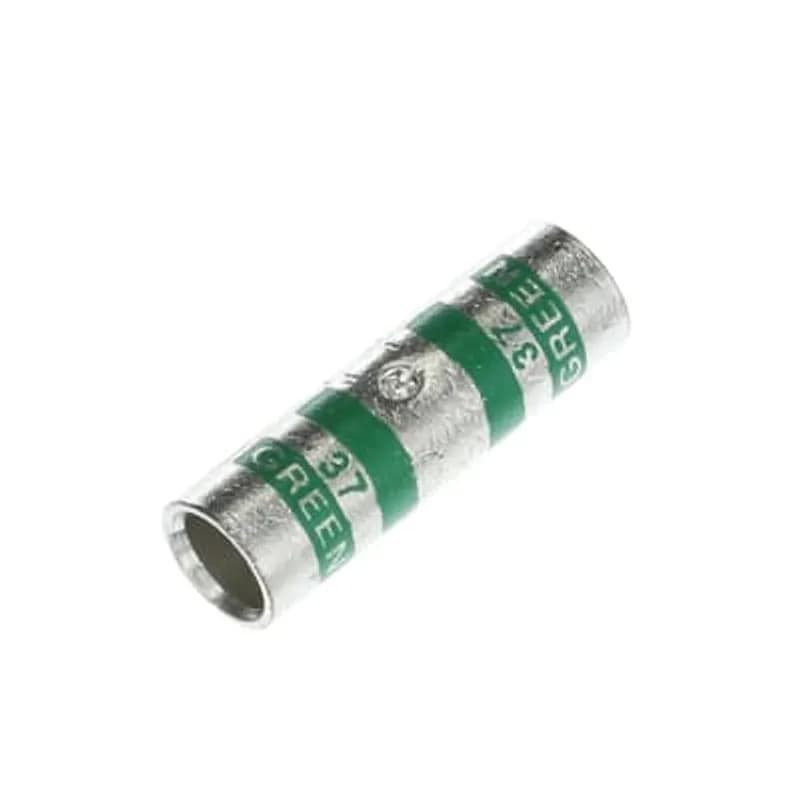

Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 1 AWG, Tin Plated, Die Code 37, Die Color Code Green

54508

Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 1 AWG, Tin Plated, Die Code 37, Die Color Code Green
Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 600 kcmil, Tin Plated, Die Code 94, Die Color Code Green

54520

Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 600 kcmil, Tin Plated, Die Code 94, Die Color Code Green
Long Barrel Two-Way Copper Connector, Cable Size 1 STR, Navy 75 (37), Length 2-7/8 Inches, Diameter 15/32 Inch, Die Color Green, Die Code 37, Tin Plated

271-30630-22

Long Barrel Two-Way Copper Connector, Cable Size 1 STR, Navy 75 (37), Length 2-7/8 Inches, Diameter 15/32 Inch, Die Color Green, Die Code 37, Tin Plated
Copper Two-Way Splice, Long Barrel, Max 35kV, Wire Size 600 kcmil, 444 kcmil Flex, Length 4.25 Inches, Tin Plated, Die Code 94, Die Color Code Green

54820-TB

Copper Two-Way Splice, Long Barrel, Max 35kV, Wire Size 600 kcmil, 444 kcmil Flex, Length 4.25 Inches, Tin Plated, Die Code 94, Die Color Code Green
Copper Two-Way Splice, Long Barrel, 1 AWG, Die Set 15CA37R, Green

54008-TB

Copper Two-Way Splice, Long Barrel, 1 AWG, Die Set 15CA37R, Green
Aluminum Reducing Splice Connector for Copper Wire Size 1, Aluminum Wire Size 2/0, Tin Plated, Die Code 54, Die Color Code Olive

60935

Aluminum Reducing Splice Connector for Copper Wire Size 1, Aluminum Wire Size 2/0, Tin Plated, Die Code 54, Die Color Code Olive
Two-Way Aluminum Splice Connector, Wire Size 400 kcmil, Die Code 94, Die Color Code Green

60568

Two-Way Aluminum Splice Connector, Wire Size 400 kcmil, Die Code 94, Die Color Code Green
Two-Way Aluminum Splice Connector, Wire Size 2/0, Die Code 54, Die Color Code Olive

60536

Two-Way Aluminum Splice Connector, Wire Size 2/0, Die Code 54, Die Color Code Olive

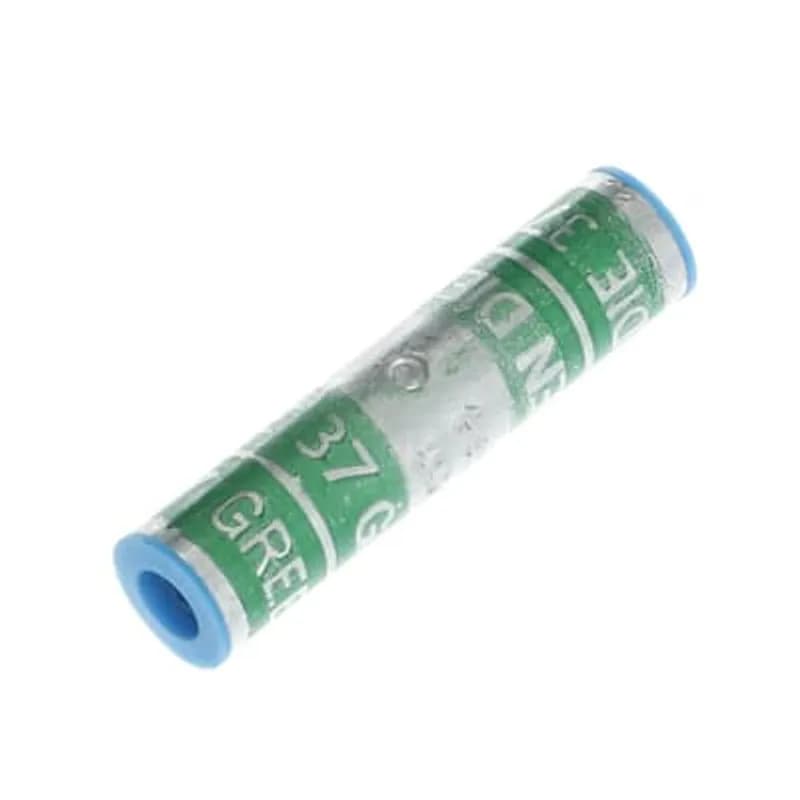

Two-Way Aluminum Splice Connector, Wire Size 4 Str, Die Code 37, Die Color Code Green

60512

Two-Way Aluminum Splice Connector, Wire Size 4 Str, Die Code 37, Die Color Code Green
Long Barrel Two-Way Copper Splice, For Code and Navy Copper Cable, Splice, Silver Plated, Cable Size AWG 1 STR, Navy 75 (37), Length 2-7/8 inch, Diameter 15/32 inch, Green, Die Code 37

271-30630-5

Long Barrel Two-Way Copper Splice, For Code and Navy Copper Cable, Splice, Silver Plated, Cable Size AWG 1 STR, Navy 75 (37), Length 2-7/8 inch, Diameter 15/32 inch, Green, Die Code 37
Copper Two-Way Splice Connector, Standard Barrel, Peep Hole, Max 35kV, Wire Size 600 kcmil, Plain Finish, Die Code 94, Die Color Code Green

54520PFPH

Copper Two-Way Splice Connector, Standard Barrel, Peep Hole, Max 35kV, Wire Size 600 kcmil, Plain Finish, Die Code 94, Die Color Code Green
Copper Two-Way Splice, Long Barrel, Max 35kV, Wire Size 600 kcmil, 444 kcmil Flex, Length 4.25 Inches, Silver Plated, Die Code 94, Die Color Code Green

54820SP

Copper Two-Way Splice, Long Barrel, Max 35kV, Wire Size 600 kcmil, 444 kcmil Flex, Length 4.25 Inches, Silver Plated, Die Code 94, Die Color Code Green

How to Install the 54828 Long Barrel Two Way Splicer

This guide provides step-by-step instructions for installing the 54828 Long Barrel Two Way Splicer for 600V applications.

Estimated time: 30m

Tools needed:

Wire strippers, Crimping tool, Wire brush or emery cloth

Supplies needed:

54828 Long Barrel Two Way Splicer, Cable (appropriate size), Shrink tubing (if required)

  1. Prepare the cable

    Strip the insulation from the cable end to the specified length of 2-3/4 inches. Be careful not to nick the cable strands.

  2. Clean the cable end

    Ensure the cable end is clean. Use a wire brush or emery cloth to remove any oxidation or debris.

  3. Insert and crimp the connector

    Insert the prepared cable into the 54828 connector until it stops. Use the appropriate crimping tool to compress the connector, ensuring you follow the markings for proper crimping.

  4. Remove sharp edges

    After crimping, carefully remove any sharp edges, flash, or burrs from the connector to ensure safety.

  5. Apply insulation

    If required, apply shrink tubing over the crimped area to provide insulation and protection.
