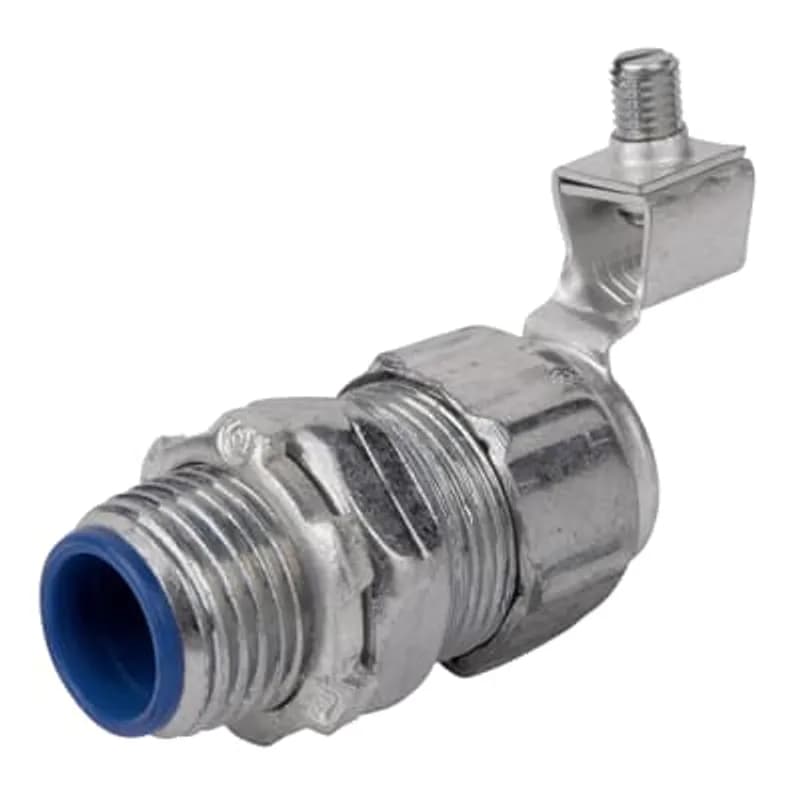

ABB Installation Products 5385GR 5 Inch Steel External Bonding Liquidtight Insulated Connector

These fittings are available in trade sizes from 3/8 inch to 6 inches (12mm to 153mm).

The fittings are available in straight, 45°, and 90° body configurations with NPT threads.

Part number 5385GR is a 5 inch trade size, NPT thread, insulated, straight fitting.

The fittings meet IEC/EN 61386-1, -23 standard requirements for tensile strength, rated as Code 3 Medium; 500 N/2 min.

The fittings meet IEC/EN 61386-1, -23 standard requirements for impact resistance, rated as Code 3 Medium; 6 Joules.

The seal rings are made of thermoplastic nylon, and the seal rings, insulators, and seal gaskets are halogen free.

Yes, the product line includes both insulated and non-insulated versions of the fittings.

Yes, they are suitable for Class I Division 2, Class II Division 1 & 2 Hazardous Locations per NEC® Section 500 and CEC.

The fittings have UL Type 3, 3R, 4, 6, 12, 13 ratings, CSA Type 3, 3R, 4, 12, 13, NEMA Type 3, 3R, 4, 6, 12, 13, and IEC IP66, IP67, IP68, IP69 ratings.

Trade sizes 3/8 inch to 1 1/4 inches are steel with Zinc Chromate finish, while 1 1/2 to 6 inches are malleable iron with Zinc Chromate finish.
