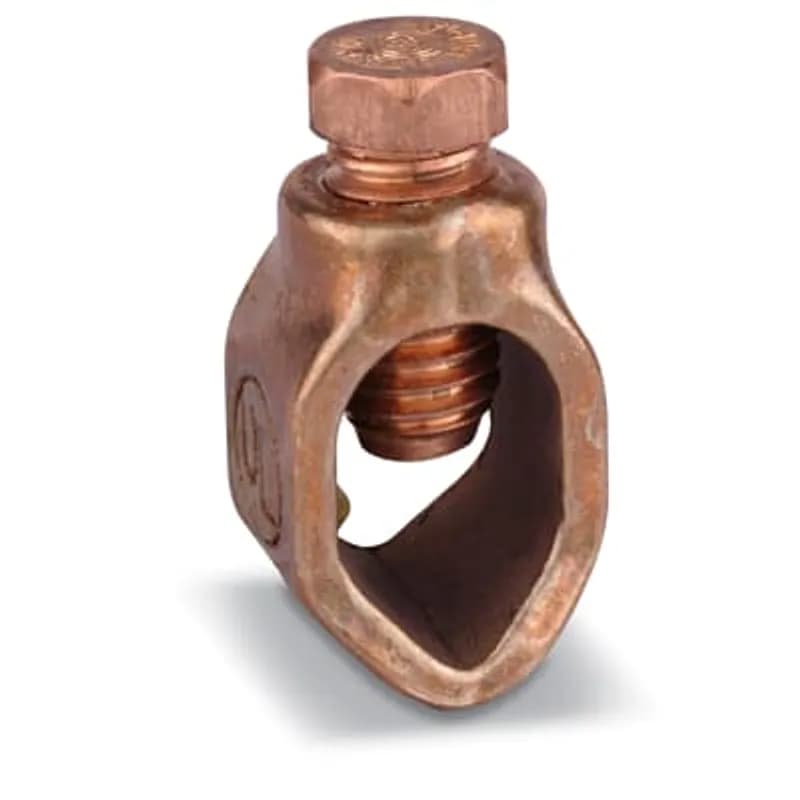

JAB58

The maximum D dimension for JAB58 and JAB58H ground clamps is 11/16 inches.

The maximum C dimension for JAB58 and JAB58H ground clamps is 1-1/16 inches.

The maximum B dimension for JAB58 and JAB58H ground clamps is 15/16 inches.

The JAB58 clamp is designed for a nominal rod diameter of 5/8 inches (15.8 mm).

JAB58 clamps accommodate a wire range from 1/0 STR. (53.4 mm) down to 8 SOL. (8.3 mm).

The screw thread size for JAB58 and JAB58H clamps is 7/16-14 UNC-2A.

JAB58 is a socket set screw type, while JAB58H is a hex head bolt type. Both are available for a 5/8 inch rod.

No, the JAB58 ground clamp is explicitly noted as "NOT UL LISTED" in the documentation.

The maximum A1 dimension for the JAB58 socket set screw type clamp is 1-27/32 inches.

The maximum A2 dimension for the JAB58H hex head bolt type clamp is 2-1/4 inches.
