ABB - Installation Products 3826 - Waterpipe Ground Clamp, Malleable Iron Body, Wire Range #6 - 4, Water Pipe Size 1/2 - 3/4 Inch, Ground Rod Range 1/2 - 1 Inch
ABB - Installation Products

3826

UPC: 786210038261

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

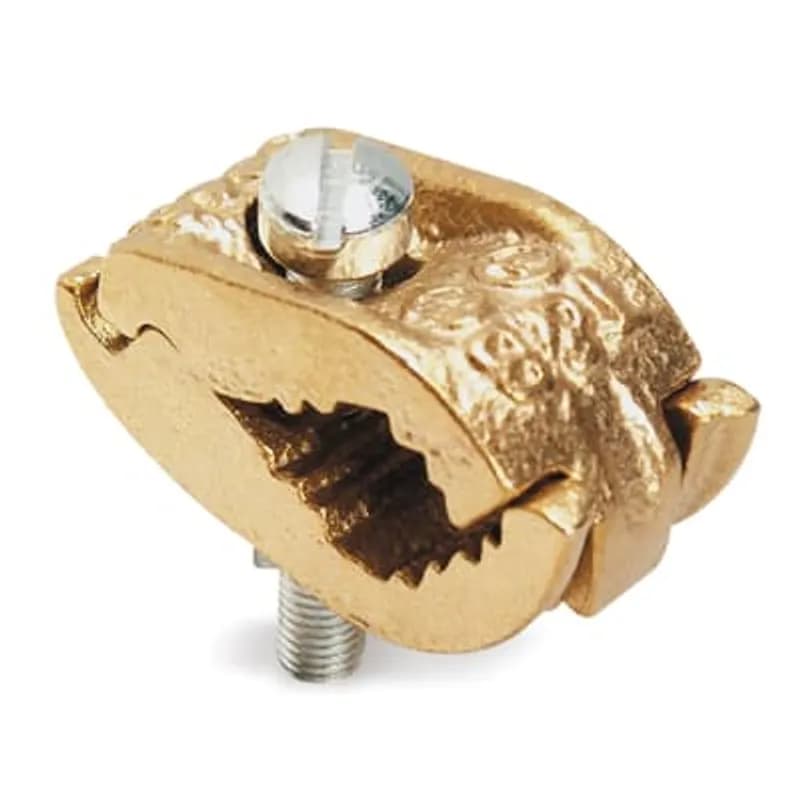

The ABB 3826 Waterpipe Ground Clamp is a robust and reliable component designed for secure grounding connections in electrical installations. Manufactured by ABB - Installation Products, this clamp is constructed with a durable malleable iron body, ensuring longevity and resistance to environmental factors. It is specifically engineered to connect grounding wires to water pipes, facilitating effective grounding for safety and system integrity. The clamp accommodates a wire range from #6 to #4 AWG, providing flexibility for various conductor sizes. For water pipe connections, it is compatible with pipe sizes ranging from 1/2 inch to 3/4 inch. Furthermore, the ABB 3826 is designed to interface with ground rods of diameters from 1/2 inch to 1 inch, offering a versatile solution for diverse grounding rod types. Key Specifications: * **SKU:** 3826 * **Manufacturer:** ABB - Installation Products * **Body Material:** Malleable Iron * **Wire Range:** #6 - #4 AWG * **Water Pipe Size:** 1/2" - 3/4" * **Ground Rod Range:** 1/2" - 1" This clamp is an essential part of any grounding system, ensuring that electrical fault currents are safely dissipated. Its sturdy construction and precise fit for specified wire, pipe, and rod sizes make it a dependable choice for electricians and installers. The UNSPSC code for this product is 39121613.
  • Durable malleable iron body for long-lasting performance.
  • Accommodates wire sizes from #6 to #4 AWG.
  • Compatible with 1/2" to 3/4" water pipe sizes.
  • Designed for ground rods ranging from 1/2" to 1" in diameter.
  • Ensures secure and reliable grounding connections.

Specifications

Application
Ground clamp for unarmored copper wire #6, #4
Conductor Material
Iron
Conductor Size
#6-#4
Insulation
No
Standard
UL E3060
Type
Ground Clamp
Package Dimensions (L x W x H)
4 IN x 4 IN x 3 IN
Package Dimensions (L x W x H)
10.16 cm x 10.16 cm x 7.62 cm
Package Weight (Imperial)
0.2300 L
Package Weight (Metric)
0.1040 kg
90 degres watertight fitting made of Malleable Iron PVC coated with a protective grounding sleeve for jacketed metal-clad cable.

10601PVC

90 degres watertight fitting made of Malleable Iron PVC coated with a protective grounding sleeve for jacketed metal-clad cable.
K&L Grade Copper Tubing Ground Clamp, Red Brass Body, Wire Range #8 - 4, Water Pipe Size 1/2 - 1 Inch

3888

K&L Grade Copper Tubing Ground Clamp, Red Brass Body, Wire Range #8 - 4, Water Pipe Size 1/2 - 1 Inch
Ground Plate Type GP - Copper Pole Bottom Ground Plate, 7-1/2 inch Diameter Copper Plate. Pigtail Wire Range #4 Stranded AWG to #14 Solid AWG.

GP100

Ground Plate Type GP - Copper Pole Bottom Ground Plate, 7-1/2 inch Diameter Copper Plate. Pigtail Wire Range #4 Stranded AWG to #14 Solid AWG.
Ground Plate Type GP - Copper Pole Bottom Ground Plate, 14 inch Diameter Copper Plate. Pigtail Wire Range #4 Stranded AWG to #14 Solid AWG.

GP114

Ground Plate Type GP - Copper Pole Bottom Ground Plate, 14 inch Diameter Copper Plate. Pigtail Wire Range #4 Stranded AWG to #14 Solid AWG.
Ground Plate, Type PB - Copper Pole for Wire Range 10 Solid - 2/0 Stranded, Connector is Eye-Bolt type, cast of corrosion resistant Aluminum Bronze Alloy, with Silicon Bronze nut and lock washer.

PBGW

Ground Plate, Type PB - Copper Pole for Wire Range 10 Solid - 2/0 Stranded, Connector is Eye-Bolt type, cast of corrosion resistant Aluminum Bronze Alloy, with Silicon Bronze nut and lock washer.
Transformer Tank Ground Connector for Wire Range 2/0 Stranded - 8 Solid, Stud Size 1/2-13 UNC-2A. 1-51/64 X 1-9/64 X 1-21/32 inches.

TTC2

Transformer Tank Ground Connector for Wire Range 2/0 Stranded - 8 Solid, Stud Size 1/2-13 UNC-2A. 1-51/64 X 1-9/64 X 1-21/32 inches.
Transformer Tank Ground Connector for Wire Range 2/0 Stranded - 8 Solid, Stud Size 1/2-13 UNC-2A, Tin-Plated. 1-51/64 X 1-9/64 X 1-21/32 inches.

TTC2P

Transformer Tank Ground Connector for Wire Range 2/0 Stranded - 8 Solid, Stud Size 1/2-13 UNC-2A, Tin-Plated. 1-51/64 X 1-9/64 X 1-21/32 inches.
Transformer Tank Ground Connector for Wire Range 1 Stranded - 10 Solid, Stud Size 1/2-13 UNC-2A. 1-3/8 X 1-3/64 X 1-9/16 inches.

TTC3

Transformer Tank Ground Connector for Wire Range 1 Stranded - 10 Solid, Stud Size 1/2-13 UNC-2A. 1-3/8 X 1-3/64 X 1-9/16 inches.
