ABB - Installation Products 10102-TB - Cable Tray Connector for Wire Range #8 Sol. - 2 Str., Carriage Bolt Size 5/16 - 18
More images

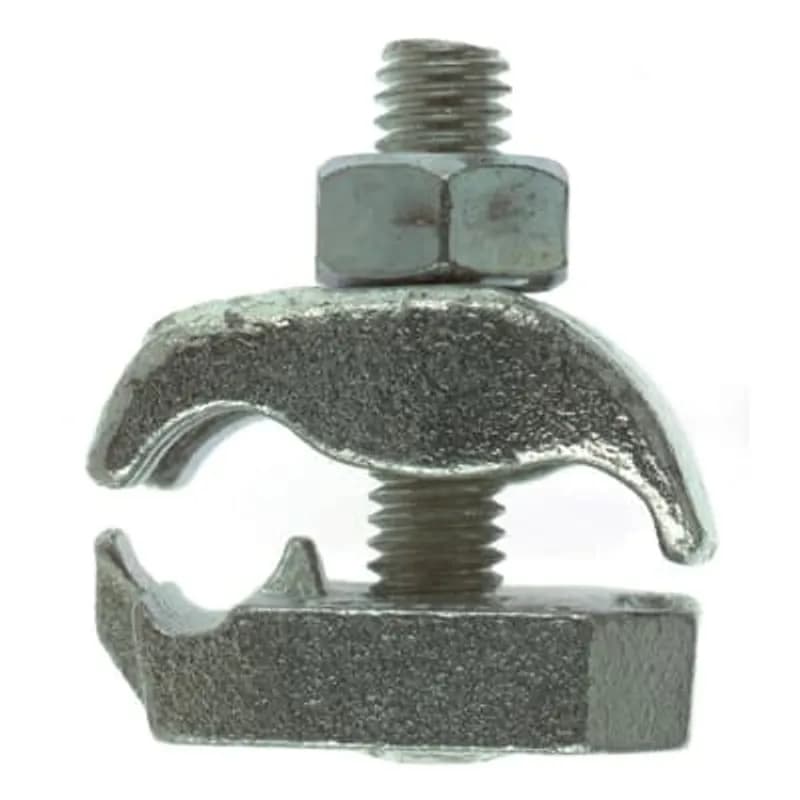

ABB Installation Products 10102-TB Cable Tray Connector for Wire Range #8 Sol. - 2 Str., Carriage Bolt Size 5/16 - 18

UPC: 786210101026

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Cable Tray Connector, SKU 10102-TB, is designed for secure and reliable connections within wire management systems. This connector is specifically engineered to accommodate wire ranges from #8 solid to 2-strand conductors. Its compatibility with a 5/16-18 carriage bolt size ensures a robust and stable fastening point for your cable tray installations. Manufactured by ABB - Installation Products, this connector is a practical component for electrical infrastructure projects requiring dependable wire termination. The precise sizing allows for efficient installation and a clean finish in electrical enclosures, conduit systems, and overhead cable tray runs. Engineers and installers will appreciate the straightforward application of this connector, which directly addresses the need for secure connections between different wire gauges and mounting hardware. Its purpose is to facilitate the organized and safe routing of electrical wiring, ensuring continuity and structural integrity of the cable management system. The specified wire range and bolt size are critical for ensuring proper electrical contact and mechanical support, preventing strain on the conductors and maintaining the overall safety of the electrical installation.
  • Connects wire range #8 solid to 2-strand conductors
  • Compatible with 5/16-18 carriage bolt size
  • Designed for secure cable tray installations
  • Manufactured by ABB - Installation Products
  • Facilitates organized and safe electrical wiring

Specifications

Application
For use on cable tray up to 5/32 inches thick
Conductor Material
Iron
Conductor Size
#8 - 2 AWG
Type
Ground Clamp
Package Dimensions (L x W x H)
4 IN x 3 IN x 3 IN
Package Dimensions (L x W x H)
10.16 cm x 7.62 cm x 7.62 cm
Package Weight (Imperial)
0.0900 L
Package Weight (Metric)
0.0410 kg
