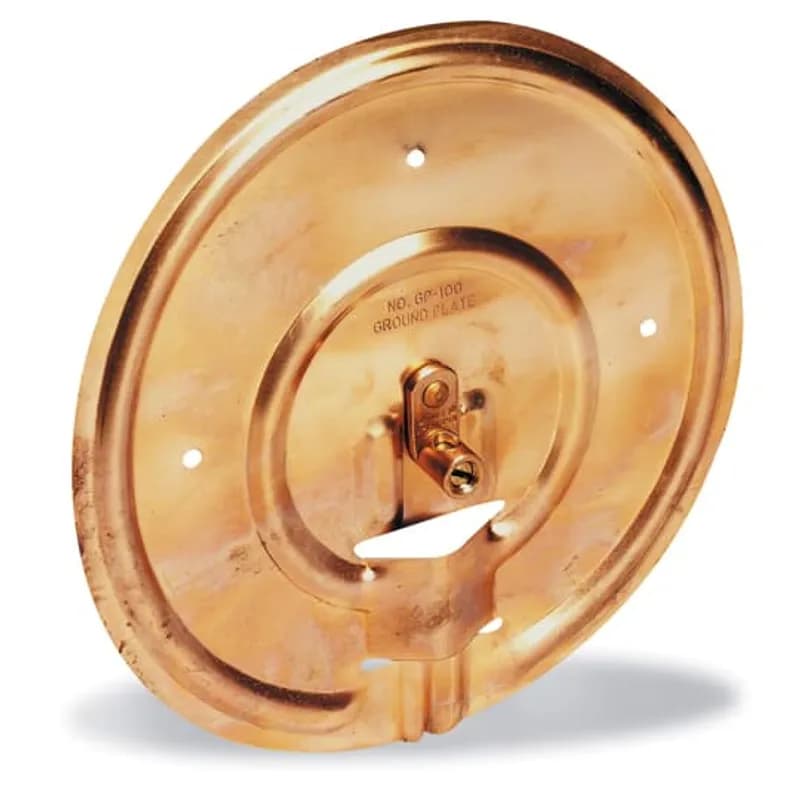

ABB - Installation Products GP100 - Ground Plate Type GP - Copper Pole Bottom Ground Plate, 7-1/2 inch Diameter Copper Plate. Pigtail Wire Range #4 Stranded AWG to #14 Solid AWG.

ABB Installation Products GP100 Ground Plate Type GP - Copper Pole Bottom Ground Plate, 7-1/2 inch Diameter Copper…

UPC: 783786333257


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 40

Multiplier: 40

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GP100 Ground Plate Type GP is a 7.5-inch diameter copper grounding plate engineered for pole bottom applications in utility, telecom, and industrial systems. Constructed from 0.025-inch thick electrolytic sheet copper, the GP100 delivers high conductivity and corrosion resistance for long-term performance in outdoor and harsh environments. The plate features a grooved design to trap moisture, stabilizing ground resistance over time. The integrated pigtail wire ranges from #4 stranded to #14 solid AWG, compatible with standard grounding conductors for simplified installation. With a surface area of 56 square inches, the GP100 provides broad contact with soil, reducing ground resistance compared to traditional butt-wrapped poles. This ground plate is installed at the butt end of utility poles to provide an economical, low-resistance neutral ground for multigrounded neutral construction. The GP100 is part of ABB Installation Products' Type GP series, designed for efficiency and reliability in grounding systems. Compared to butt-wrapped poles, the GP100 reduces installed costs while delivering equivalent or superior performance. The copper construction ensures minimal maintenance and extended service life, making it a cost-effective solution for grounding applications requiring durable, high-conductivity components. The GP100 is available with different pigtail configurations, including #6 AWG solid copper with 18-inch or 8-foot conductors for flexible installation options.
  • 7.5-inch diameter copper plate for pole bottom grounding
  • 0.025-inch thick electrolytic sheet copper construction
  • Grooved design traps moisture for stable ground resistance
  • Pigtail wire range: #4 stranded to #14 solid AWG
  • Surface area: 56 square inches for reduced ground resistance

Specifications

Application
Multigrounded Neutral Construction
Conductor Material
Copper
Conductor Size
#14 SOL AWG , #4 STR AWG
Connection
Mechanical
Insulation
None
Size
7-1/2 in , 191 mm
Special Features
More efficient than butt wrapping poles. Made of Electolytic sheet copper. Plates are grooved for trapping moisture. Built-in High pressure Connector for Ground Lead
Type
Copper Pole Bottom Ground Plate
Type Of Indicators
None
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.4100 L
Package Weight (Metric)
0.1860 kg
Ground Plate Type GP - Copper Pole Bottom Ground Plate, 10 inch Diameter Copper Plate. Pigtail Wire Range #4 Stranded AWG to #14 Solid AWG.

GP110

Ground Plate Type GP - Copper Pole Bottom Ground Plate, 10 inch Diameter Copper Plate. Pigtail Wire Range #4 Stranded AWG to #14 Solid AWG.
#12 x 7 Strand-W CD Ground Pgtl Dog-Pt USA Made Green Zinc

PTS40C

#12 x 7 Strand-W CD Ground Pgtl Dog-Pt USA Made Green Zinc
Heavy-Duty C-Taps, Run 2/2 Tap 4/8, Polished, Copper

DGT1

Heavy-Duty C-Taps, Run 2/2 Tap 4/8, Polished, Copper
1/4" x 2" x 12" Grounding Busbar.

GB2D0008TPI-1

1/4" x 2" x 12" Grounding Busbar.
Ground Plate Type GP - Copper Pole for Wire Range #6 Solid Copper Pigtail with 8 foot conductor, 10 inch Diameter

GP1108

Ground Plate Type GP - Copper Pole for Wire Range #6 Solid Copper Pigtail with 8 foot conductor, 10 inch Diameter
Ground Plate Type GP - Copper Pole Bottom Ground Plate, 14 inch Diameter Copper Plate. Pigtail Wire Range #4 Stranded AWG to #14 Solid AWG.

GP114

Ground Plate Type GP - Copper Pole Bottom Ground Plate, 14 inch Diameter Copper Plate. Pigtail Wire Range #4 Stranded AWG to #14 Solid AWG.
Ground Plate Type GP - Copper Pole for Wire Range #6 Solid Pigtail with 1 Foot conductor, Copper Pole Bottom Ground Plate, 7-1/2 inch Diameter with Pigtail Wire Range #6 AWG Solid Copper 1 Foot Long (12 inches).

GP1003

Ground Plate Type GP - Copper Pole for Wire Range #6 Solid Pigtail with 1 Foot conductor, Copper Pole Bottom Ground Plate, 7-1/2 inch Diameter with Pigtail Wire Range #6 AWG Solid Copper 1 Foot Long (12 inches).
Ground Plate, Type PB - Copper Pole for Wire Range 10 Solid - 2/0 Stranded, Connector is Eye-Bolt type, cast of corrosion resistant Aluminum Bronze Alloy, with Silicon Bronze nut and lock washer.

PBGW

Ground Plate, Type PB - Copper Pole for Wire Range 10 Solid - 2/0 Stranded, Connector is Eye-Bolt type, cast of corrosion resistant Aluminum Bronze Alloy, with Silicon Bronze nut and lock washer.

Frequently Asked Questions

What is the diameter of the GP100 ground plate?

The GP100 ground plate has a diameter of 7-1/2 inches.

What wire gauge range does the pigtail support?

The pigtail wire supports #4 stranded AWG to #14 solid AWG.

What material is the GP100 ground plate made of?

The GP100 ground plate is made of copper.

Where is the GP100 ground plate typically used?

The GP100 ground plate is typically used for pole bottom grounding in utility and telecom installations.
