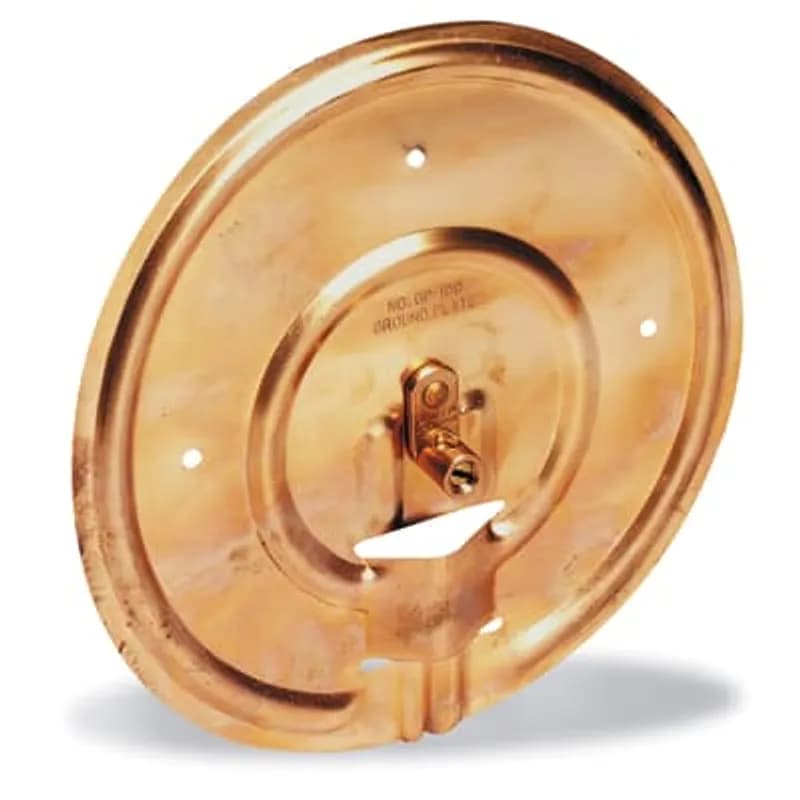

ABB - Installation Products GP1003 - Ground Plate Type GP - Copper Pole for Wire Range #6 Solid Pigtail with 1 Foot conductor, Copper Pole Bottom Ground Plate, 7-1/2 inch Diameter with Pigtail Wire Range #6 AWG Solid Copper 1 Foot Long (12 inches).
ABB - Installation Products

GP1003

UPC: 783786800995

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The ABB GP1003 Ground Plate Type GP is a high-conductivity copper grounding solution designed for industrial and utility applications requiring reliable earth bonding. This 7-1/2 inch diameter copper plate features a #6 AWG solid copper pigtail wire (1 foot long) for direct connection to grounding systems, ensuring low-resistance electrical continuity. The solid copper construction provides superior corrosion resistance and long-term performance in outdoor and underground environments. Compatible with standard grounding conductors, the GP1003 is ideal for pole-mounted installations, substations, and telecom sites where space and durability are critical. The 1-foot pigtail simplifies field wiring, reducing installation time while maintaining compliance with NEC and IEEE grounding standards. Manufactured by ABB Installation Products, this ground plate meets UNSPSC code 39121613 and is optimized for systems requiring a robust, low-impedance grounding path. The copper pole bottom ground plate is designed for direct burial or attachment to grounding electrodes, providing a high-surface-area contact with soil to enhance dissipation of fault currents. Its 7-1/2 inch diameter ensures broad coverage, improving grounding effectiveness in high-resistivity soils. The #6 AWG solid copper pigtail is rated for 60°C and is pre-attached for immediate use, eliminating the need for additional connectors or splicing. Typical applications include utility poles, communication towers, industrial equipment grounding, and substation grounding where a compact, high-surface-area plate is preferred over traditional ground rods. The GP1003 is UL-listed and meets ANSI/IEEE 80 standards for grounding system performance, ensuring reliability in critical infrastructure. Its design allows for easy integration with existing grounding grids or as a standalone electrode in constrained spaces.
  • 7-1/2 inch diameter copper ground plate for maximum surface area contact
  • #6 AWG solid copper pigtail wire (1 foot long) for direct grounding connections
  • High-conductivity copper construction for low-resistance earth bonding
  • Compatible with standard grounding systems and NEC/IEEE compliant
  • Designed for pole-mounted, substation, and telecom grounding applications

Specifications

Application
Multigrounded Neutral Construction
Conductor Material
Copper
Conductor Size
#6 SOL CU AWG
Connection
Mechanical
Insulation
None
Length
7-1/2 in , 191 mm
Size
7-1/2 in , 191 mm
Special Features
More efficient than butt wrapping poles. Made of Electolytic sheet copper. Plates are grooved for trapping moisture. Supplied with #6 AWG copper Pigtail pre-attached
Type
Copper Pole Bottom Ground Plate
Type Of Indicators
None
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2000 L
Package Weight (Metric)
0.0910 kg
Ground Plate Type GP - Copper Pole for Wire Range #6 Solid Copper Pigtail with 8 foot conductor, 10 inch Diameter

GP1108

Ground Plate Type GP - Copper Pole for Wire Range #6 Solid Copper Pigtail with 8 foot conductor, 10 inch Diameter
Autoset Automatic Stainless Steel Bail for Wire Range: 266 18/1, 336 18/1 ASCR, 266, 336 AAAC, 266, 336 AAC, Color Code Green

ATD266336ZB

Autoset Automatic Stainless Steel Bail for Wire Range: 266 18/1, 336 18/1 ASCR, 266, 336 AAAC, 266, 336 AAC, Color Code Green
Direct burial ground clamp for wire range 10-2,Pipe size 1/2 - 1, Ground rod range 1/4 - 1

JDLI-B1-10

Direct burial ground clamp for wire range 10-2,Pipe size 1/2 - 1, Ground rod range 1/4 - 1
1-1/4 Inch 316 Stainless Steel Form 8 (TB) Conduit Body, Cover and Gasket with Polished Finish

TB48SST

1-1/4 Inch 316 Stainless Steel Form 8 (TB) Conduit Body, Cover and Gasket with Polished Finish
Insulated Bus Connector - Number of Ports 2, 2 1-Bolt Small Terminals with 4 stranded - 500 kcmil, Wire Range 12 solid - 4 stranded for Street Light Option

UPC22SL

Insulated Bus Connector - Number of Ports 2, 2 1-Bolt Small Terminals with 4 stranded - 500 kcmil, Wire Range 12 solid - 4 stranded for Street Light Option
Ground Pipe Clamp with Strap and 3/4 Inch Hub - Conduit Size 1/2 Inch - 1 Inch

L185C-1-10

Ground Pipe Clamp with Strap and 3/4 Inch Hub - Conduit Size 1/2 Inch - 1 Inch
Liquidtight Strain Relief Straight Die Cast Zinc 2 Hole Connector, .75 Diameter Nylon Coated Cord Connector, Cable Size .880-1.065 Inch, Hub Size 1 1/4 Inch, Throat Diameter 1 17/64 Inch

2558-526N

Liquidtight Strain Relief Straight Die Cast Zinc 2 Hole Connector, .75 Diameter Nylon Coated Cord Connector, Cable Size .880-1.065 Inch, Hub Size 1 1/4 Inch, Throat Diameter 1 17/64 Inch
Aluminum Solid Pin Terminals Center Pin Style with Insulating EDPM Rubber Boot, Wire Size 600 kcmil, Tin Plated, Overall Length 3.67 Inches (93.22mm), Die Code 115, Yellow

APA-600

Aluminum Solid Pin Terminals Center Pin Style with Insulating EDPM Rubber Boot, Wire Size 600 kcmil, Tin Plated, Overall Length 3.67 Inches (93.22mm), Die Code 115, Yellow

Frequently Asked Questions

What is the diameter of the ground plate?

The ground plate has a 7-1/2 inch diameter.

What is the wire gauge of the pigtail?

The pigtail wire is #6 AWG solid copper.

Is the GP1003 compatible with underground installations?

Yes, the copper construction is corrosion-resistant for underground and outdoor use.

Can the pigtail wire be extended?

The pigtail is fixed at 1 foot long; additional wire must be spliced externally.

What standards does the GP1003 meet?

The GP1003 is designed for compliance with NEC and IEEE grounding standards.
