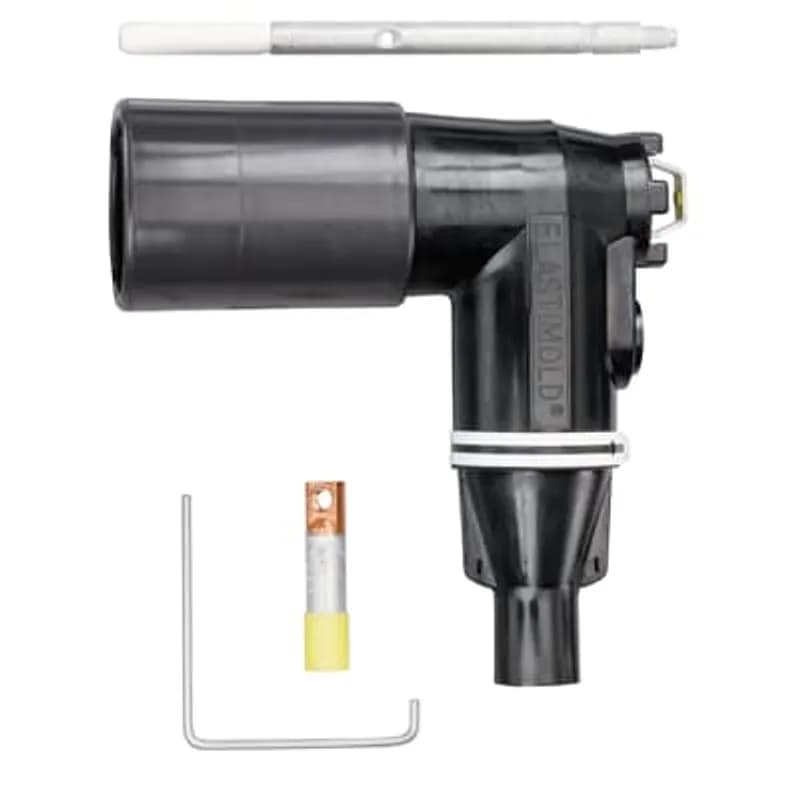

ABB Installation Products 375LR-H5250-S 200 Amp, 35kV, Loadbreak Elbow Connector without Test Point, Cable Insulation Diameter…
UPC: 075114404679
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp, 35kV loadbreak elbow connector for medium-voltage applications
- Cold-shrinkable jacket seal (S) for tool-free, heat-free installation
- Bi-metal compression lug compatible with AWG 3/0 compressed/stranded or AWG 2/0 solid/compact conductors
- Supports cable insulation diameters from 0.850" to 1.050"
- Excludes test point for simplified installation in non-test applications
Specifications
Amperage Rating | 200 A |
Application | 35 kv, 200 Amp |
Color | Black |
Conductor Range | 3/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
Connection | Push-In |
Connection Type | LoadBreak Elbow Connector |
Current Rating | 200 A |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Bi-Metal Compression Lug |
Material | Housing - EPDM-Rubber |
Size | Cable Insulation Diameter 0.850 inch to 1.050 inch |
Special Features | 35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
376LR-J-5260
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01.
656CETP-H0250
15kV, 600 Series ComboT Elbow with 200 Amp Reducing Tap Plug, Stud, Cable Adapter and Lug Kit, with Test Point. Cable Insulation Diameter Range 0.850 to 1.050 inches, Aluminum Lug, 2/0 Stranded/Compressed or 3/0 Solid/Compact.
K655LINK-C-DP0594953
25kV, 600 Amps, Deadbreak Cam-Op Connector Kit. Cable Insulation Diameter LM - 1.280 to 1.630 inch, 700/750 Stranded/Compressed kcmil or 900 Solid/Compact kcmil. Contains (1) Cam-Op Link, (1) Elbow Housing, (1) cable Adapter, (1) Aluminum Compression Lug, (1) Bushing Extender, (2) Retainer Sleeves, (1) Insulated Cap, (1) Mountable Insulated Bushing and (1) Alignment Brackets.
252LR-D5250
15/25kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Bi-Metal Lug, Conductor Size 250 - 2/0 Stranded/Compressed, 3/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 7.531 inches, 2.097 inch diameter.
756LR-N0360-S
35kV, 600 Amps, Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size Compressed/Stranded 650 kcmil or Compacted/Solid 750/800 kcmil. Cold-Shrinkable Jacket Seal Included.755LRTP-H0240-SG3
600 Amp, 35kV, Stick-Op Connector Kit without Test Point and Sealing Kit. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size 240 - AWG Compressed-Stranded 1/0 or Compacted-Solid 2/0. Sealing Kit - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring. Does not include Insulated Plug.
755ETP-M0330-SG3
600 Amp, 35kV, Deadbreak, Test and Ground Connector kit, includes reducing tap plug, elbow housing, cable adapter and 0370 style compression lug. 600ATM assembly tool required, 50-60 foot/pounds torque wrench required but not included. Aluminum Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size Compressed Stranded 500 kcmil or Compacted Solid 600 kcmil. Includes Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.375LR-K-2240
35kV 200 Amp, Loadbreak Elbow Connector without Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.Frequently Asked Questions
What is the current rating of these products?
The products are 200 amp loadbreak elbows and bushing inserts.
Are the bushing inserts suitable for submerged conditions?
Yes, Elastimold 200 amp bushing inserts ensure exceptional performance even when fully submerged.
Do the bushing inserts provide visual voltage indication?
Yes, color-coded PBT interface shields provide visual indication of the voltage class (red=15 kV, blue=25 kV, black=35 kV).
Can these products be used with existing systems?
Yes, they can be universally applied to all IEEE 386 compliant interfaces in existing systems.
What material is used for the elbow housing?
The elbow housing is made from 100% peroxide-cured EPDM for lasting durability.
How do the products prevent partial vacuum flashover?
The patented vented ring design (25 kV and 35 kV classes) prevents partial vacuum flashover during switching operations.
What are the voltage ratings for the bushing inserts?
The Elastimold 200 amp bushing inserts are available for 15 kV, 25 kV, and 35 kV system voltages.
What are the voltage ratings for the loadbreak elbows?
The Elastimold 200 amp loadbreak elbows are available for 15 kV and 25 kV system voltages.
Do the bushing inserts provide visual voltage indication?
Yes, color-coded PBT interface shields provide visual indication of the voltage class (red=15 kV, blue=25 kV, black=35 kV).
What is the current rating of these products?
The products are 200 amp loadbreak elbows and bushing inserts.
How to Install the ECS Jacketed Cable Sealing Kit
This guide provides step-by-step instructions for installing the ECS Jacketed Cable Sealing Kit on concentric neutral shielded cable, ensuring a proper seal and connection.
Estimated time: 45m
Tools needed:
Cable knife, Wire strippers
Supplies needed:
Mastic strips, Cold shrink tube, Vinyl tape
- Perform Safety Checks and Initial Inspection
De-energize all apparatus in the work area before beginning installation to prevent serious injury or fatality. Inspect all kit components for damage, proper rating, and compatibility with the cable and mating products (elbow, joint, or terminator). Ensure all package contents are complete. Ensure you have all required tools and maintain a clean work environment throughout the procedure.
- Prepare Cable Jacket and Apply First Mastic Strip
Remove the cable jacket for a distance of 2-1/2 inches (64mm) more than the cutback length specified for the cable semicon in the manufacturer’s instructions. Wrap the first mastic strip around the cable jacket, starting 0 to 1/4 inch (0-6mm) from the end. Stretch the mastic as needed to completely encircle the cable. Bend the ground wires back over the mastic and along the jacket, pressing them firmly into the mastic. Ensure ground wires do not touch each other to prevent water ingress.
- Apply Second Mastic Strip, Tape, and Prepare Cable End
Wrap the second mastic strip over the ground wires, positioning it above the previously applied mastic. Press the mastic to fill any voids. Over wrap the mastic and wires tightly with two half-lapped layers of vinyl tape for a width of approximately 1-1/2 inches (40mm). Prepare the cable end according to the manufacturer’s instructions for the specific elbow, joint, or terminator you are installing.
- Slide Cold Shrink Tube and Install Mating Product
Slide the cold shrink tube onto the cable, ensuring the loose end is positioned away from where the connector will be installed. Install the elbow, joint, or terminator onto the cable end following its manufacturer’s instructions.
- Apply Third Mastic Strip, Tape, and Activate Cold Shrink
Apply the third mastic strip as follows: For 200amp products, overlap the product end and cable adapter. For 600amp products, place it immediately below the product, overlapping the cable adapter entrance. For terminators, place it immediately below the stress cone. Over wrap this mastic with two half-lapped layers of vinyl tape. Pull the loose end of the cold shrink tube from the back and unwind the cord clockwise until the plastic core is flush. Continue unwinding clockwise, allowing the tube to collapse from the product end. Ensure the tube overlaps the elbow or joint end by at least 1 inch (25mm) for a proper seal.
- Connect Concentric Neutral Wires
Connect the elbow, joint, or terminator to the concentric neutral wires as specified in the manufacturer’s instructions for that component.
