Contact for Pricing
Overview
- 15/25kV voltage rating, 600 Amps continuous current
- Accommodates cable insulation diameters from 1.37-1.63 inches (34.8-41.4mm)
- Supports 330-500 kcmil stranded/compressed and 600 kcmil solid/compact conductors

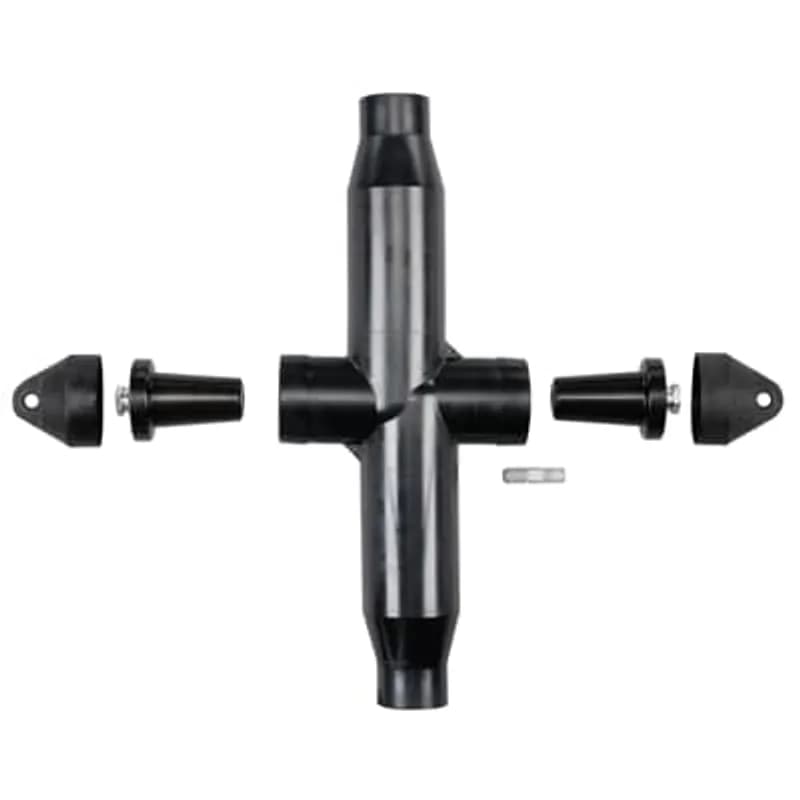

- Complete kit includes housing, lugs, adapters, plugs, stud, cold shrink seal, and lubricant
- Vault Stretcher Housing dimensions: 21.75 inches x 8.69 inches
Specifications
Amperage Rating | 600 A |
Color | Black |
Conductor Range | 500 kcmil , 600 kcmil |
Connection | Compression |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Housing - EPDM-Rubber |
Size | Vault Stretcher Housing 21.75 inches x 8.69 inch |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state |
Standard | ANSI/IEEE Standard 386 |
Type | 2-Way Vault Stretcher |
Voltage Rating | 15 to 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
J6-622226-25
6 Point Junction, with one 600 Amp Bushing Interfaces, four 200 Amp Bushing Well Interface and one 600 Amp Bushing Interface, 25kV, No Tilt Mounting.
Frequently Asked Questions
What is the maximum phase-to-phase voltage rating?
The maximum phase-to-phase voltage rating is 28kV.
What items are included in the K655VSL2 kit?
The kit includes a vault stretcher housing, two compression lugs, a stud, two insulated plugs with caps, lubricant, two cable adapters, installation instructions, and a crimp chart.
What is the impulse withstand rating (BIL)?
The impulse withstand rating (BIL) is 140kV (1.2 x 50 microsecond wave).
What is the maximum phase-to-ground operating voltage?
The maximum phase-to-ground operating voltage is 16.2kV.
What ANSI/IEEE standard does this product meet?
The product meets ANSI/IEEE Standard 386, Latest Revision.
What components are compatible with the K655VSL2?
The K655VSL2 can be mated with K651CP, K650BIP, K650RTP, K650RTW, K650S1, K650T1, K650JX, and K650ETP components.
What is the maximum continuous current rating?
The maximum continuous current rating for the vault stretcher is 600 Amps.
What is the K655VSL2 vault stretcher's voltage class?
The K655VSL2 vault stretcher is designed for a 15/25kV voltage class.
What items are included in the K655VSL2 kit?
The kit includes a vault stretcher housing, two compression lugs, a stud, two insulated plugs with caps, lubricant, two cable adapters, installation instructions, and a crimp chart.
What components are compatible with the K655VSL2?
The K655VSL2 can be mated with K651CP, K650BIP, K650RTP, K650RTW, K650S1, K650T1, K650JX, and K650ETP components.
