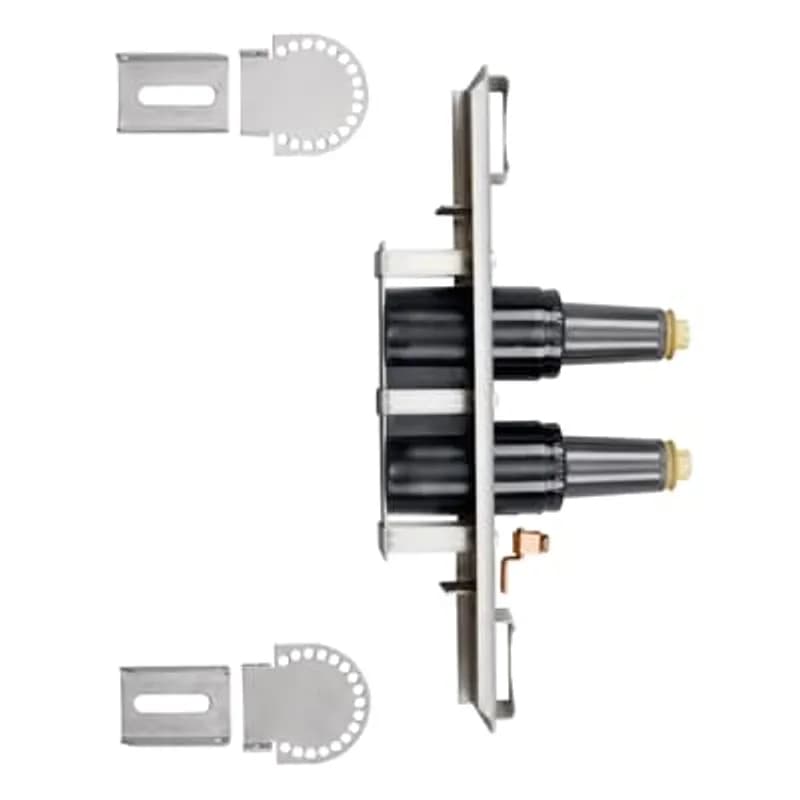

ABB Installation Products 373J2 35kV 200 Amp, Loadbreak 2-Point Junction with Stainless Steel Bracket
UPC: 783786648672
Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- 35kV Voltage Rating
- 200 Amp Current Rating
- Loadbreak 2-Point Junction Configuration
- Includes Stainless Steel Mounting Bracket
- ABB - Installation Products Manufacturer
Specifications
Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass |
Material | EPDM-Rubber with Stainless Steel Bracket |
Size | 4.00 inch (101.6 mm) Center to Center, 9.6 inch (243.8 mm) High, 3.60 inch (91.4 mm) wide |
Special Features | 35kV, 200 Amp Loadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions. Rated for 3 Phase switching. Includes black vent ring |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 2-Point Junction |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 13.4100 L |
Package Weight (Metric) | 6.0830 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
Frequently Asked Questions
What is the product model number?
The product model number is 373J2, a 35kV 200A Loadbreak 2-Way Junction with a Stainless Steel Bracket.
What are the mounting options for the junction?
It includes mounting hardware for flat or curved positions and universal brackets for tilt mounting angles from 0° to 90° in 15° increments.
What is the impulse withstand rating?
The impulse withstand rating is 150kV BIL (1.2 x 50 microsecond wave).
How do I order the junction with "U" style mounting straps?
To order with "U" style mounting straps, add "-5" at the end of the catalog number (e.g., 373J2-5).
What is included in the 373J2 kit?
Each kit contains one basic molded junction, two protective shipping caps, two tubes of lubricant, and one installation instruction.
What standards does the product meet?
The product meets ANSI/IEEE Standard 386, Latest Revision.
Does this junction support 3-phase switching?
Yes, the 373J2 junction is rated for 3Ø switching.
What is the operating voltage range?
The operating voltage is 21.1kV Phase-to-Ground, with a maximum Phase-to-Phase voltage of 36.6kV.
What other Elastimold products are compatible?
It mates with Elastimold 375/376LR Elbow Connector, 370 Grounding Elbow, 370TR Test Rod, and 375DR/376DRG Insulated Cap.
Is the junction submersible?
Yes, the 373J2 features a fully shielded, fully submersible molded rubber housing.
How to Install 373 J2, J3, J4 Loadbreak Junctions
This guide provides step-by-step instructions for the safe mounting, wiring, and initial setup of the 373 J2, J3, or J4 two-, three-, and four-point loadbreak junctions on flat or curved surfaces.
Estimated time: 1h 30m
Tools needed:
Wrench, Wire strippers, Hotstick, Suitable voltage sensing device
Supplies needed:
373 J2, J3, or J4 Loadbreak Junction (assembled with back plate), Universal mounting brackets with hardware, Lubricant, Mounting bolts (user supplied, 17/32" or 13mm diameter), Grounding wire (No. 10 Solid to No. 1 Stranded), Appropriate HV insulated cap(s) or connector(s), Mating products (e.g., Elastimold 35kV class loadbreak connectors), Silicone grease
- De-energize Apparatus and Inspect Parts
DANGER: All apparatus must be de-energized during installation or removal of parts. Inspect all components for damage, proper rating, and compatibility with mating parts before proceeding. Failure to follow these instructions will result in damage to the product and serious or fatal injury.
- Remove Shipping Covers
If the product is supplied with protective shipping cover(s), remove them. Replace these shipping cover(s) with the appropriate HV insulated cap(s) or connector(s) before submerging or energizing the circuit. Do not use shipping covers for insulation.
- Prepare Mounting Brackets
Loosely attach the universal mounting brackets to the junction back plate. Place the entire assembly against the desired mounting surface (flat or curved wall). Adjust the brackets for proper alignment and mark their exact location on the wall.
- Mount Brackets to Wall
Detach the universal mounting brackets from the junction back plate. Mount the brackets securely on the wall according to the marks made in Step 3. Ensure to use user-supplied bolts that fit the 17/32" (13mm) diameter holes. One or both brackets can be inverted to adjust bolt center distances.
- Fasten Junction to Brackets
With the universal mounting brackets securely fastened to the wall, attach the back plate (with the junction already attached) to the mounted brackets. Verify that the parking stands are in the upright position.
- Adjust Mounting Angle
Adjust the mounting angle of the junction to the desired position. The angle is adjustable from 0° through 90° above or below the horizontal in 15° increments.
- Tighten All Bolts
Securely tighten all bolts on the mounting brackets and the junction assembly. Ensure all connections are firm to prevent any movement during operation.
- Ground the Back Plate
Ground the junction back plate using the provided grounding lug. This lug accommodates grounding wire sizes from No. 10 Solid to No. 1 Stranded. Ensure a secure and proper ground connection.
- Prepare and Install Mating Products
Thoroughly wipe the bushing interface clean of any contaminants. Lubricate the bushing interface with the supplied lubricant. Install the mating products (e.g., loadbreak elbow connectors) to the bushing insert, following the specific instructions provided with those mating products.
- Install Insulated Caps on Unused Interfaces
WARNING: If all operating interfaces are not utilized, an Elastimold 375DR insulated cap MUST be installed on the unused interface or interfaces before energization. Do NOT use protective shipping covers for this function, as they are not insulated.
- Perform Voltage Test (Optional but Recommended)
To establish if the circuit is energized, remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device; do not use conventional voltage measuring equipment. Use a suitable sensing device made for capacitive test points, following its manufacturer’s directions. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means to prevent serious or fatal injury.
- Replace Test Point Cap
After voltage detection has been made, clean and lubricate the inside surface of the test point cap with silicone grease. Carefully replace the cap onto the test point, ensuring a secure fit.
