Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

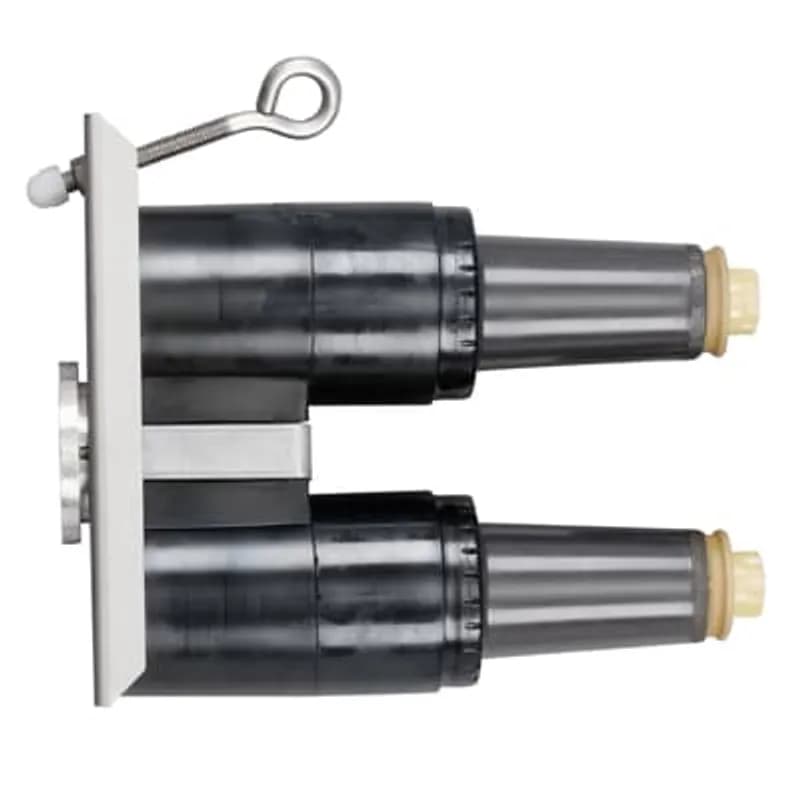

Overview
- 35kV voltage rating for medium-voltage systems
- 200 Amp continuous and loadbreak-rated operation
- Vertical orientation for specific installation configurations
- Fully shielded and insulated for energized operation
- Compatible with 35kV class elbow connectors and accessories
Specifications
Application | 35 kV, 200 Amps |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Feed Thru |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
373FT4-AB
35kV 200 Amp, Loadbreak Adjustable Bracket 4-Point Feed-Thru, with stainless steel bracket.
Frequently Asked Questions
What is the 373FTV's primary application?
The 373FTV is a space-saving, fully shielded, and submersible insulated connector designed for energized operation in congested areas like transformers or switchgear.
What is the continuous and loadbreak current rating?
The 373FTV has a continuous and loadbreak current rating of 200 Amps.
Can the 373FTV connect an elbow arrester?
Yes, the 373FTV provides an extra tap specifically for elbow arrester connection.
What mounting design does the 373FTV utilize?
The 373FTV features a space-saving vertical mounting design for small spaces and uses an integral parking stand mount.
What type of insulation does the 373FTV use?
The 373FTV features peroxide-cured insulation and jacket.
Does the 373FTV support three-phase switching?
Yes, the 373FTV is rated for 3Ø switching.
What is the momentary and fault close rating?
The momentary and fault close rating for the 373FTV is 10kA Symmetrical for 10 Cycles.
What are the impulse withstand and AC/DC withstand ratings?
The 373FTV has a 150kV BIL impulse withstand, 50kV AC one-minute withstand, and 103kV DC 15-minute withstand rating.
What is the maximum operating voltage for the 373FTV?
The maximum operating voltage for the 373FTV is 21.1kV Phase-to-Ground and 36.6kV Phase-to-Phase for 35kV Voltage Class 1Ø and 3Ø systems.
What Elastimold products are compatible with the 373FTV?
The 373FTV is designed to mate with 375LR/376LR elbow connectors, 370TR test rods, 370GLR grounding elbows, and 375DR/376DRG insulated caps.
How to Install the 373FTV Feed-Thru/Junction Device
This guide provides instructions for the safe installation and initial setup of the ELASTIMOLD 373FTV Feed-Thru/Grounding Device, detailing its use as a junction point for 35kV class loadbreak connectors. It also outlines the initial steps common to its use as a grounding point.
Estimated time: 1h
Tools needed:
Hotstick (live-line tool), Screwdriver
Supplies needed:
Electrostatic grounding lead (No. 14 copper wire or equivalent), Silicone grease (supplied with product), Mating 35kV class loadbreak connectors
- De-energize and Ground the System
Before beginning installation, ensure all apparatus is de-energized. This product must only be installed by competent personnel trained in good safety practices involving high voltage electrical equipment. Insert an electrostatic grounding lead (No. 14 copper wire or equivalent) into the grounding lug provided on the mounting hardware and tighten the lug. Connect the opposite end of the lead to a reliable ground, leaving sufficient slack to operate with a hotstick. Keep the ground wire clear from operating interfaces.
- Prepare the Feed-Thru Bushings
Remove the protective covers from the bushings of the feed-thru. WARNING: Protective covers must not be on the bushing of the feed-thru when the feed-thru is energized. Clean the bushing surfaces thoroughly and lubricate them with the supplied silicone grease. Do not substitute other lubricants, as they may be harmful to this product and its mating product(s).
- Mount the Feed-Thru onto a Parking Stand
Firmly attach the feed-thru eye to a hotstick. Using the hotstick, slide the feed-thru onto a parking stand. Unlock the hotstick and back off, allowing space for the eyebolt to be tightened. Tighten the eyebolt by rotating the hotstick clockwise until snug, but do not overtighten. Release the hotstick.
- Connect the First Loadbreak Elbow
Following the applicable operating instructions (IS-375/376LR), remove one loadbreak elbow from its apparatus bushing insert and carefully place it onto one of the feed-thru interfaces using a hotstick.
- Connect the Second Loadbreak Elbow (Junction Point)
For a junction point application, following the applicable operating instructions (IS-375/376LR), remove the second loadbreak elbow from its apparatus bushing insert and place it onto the remaining feed-thru interface using a hotstick. The 373FTV is now configured as a junction point. To reconnect the elbow(s) to the apparatus bushing(s) later, first make certain no faults exist on the system, then reverse the operational sequence following the applicable loadbreak-loadmake operating instructions.
