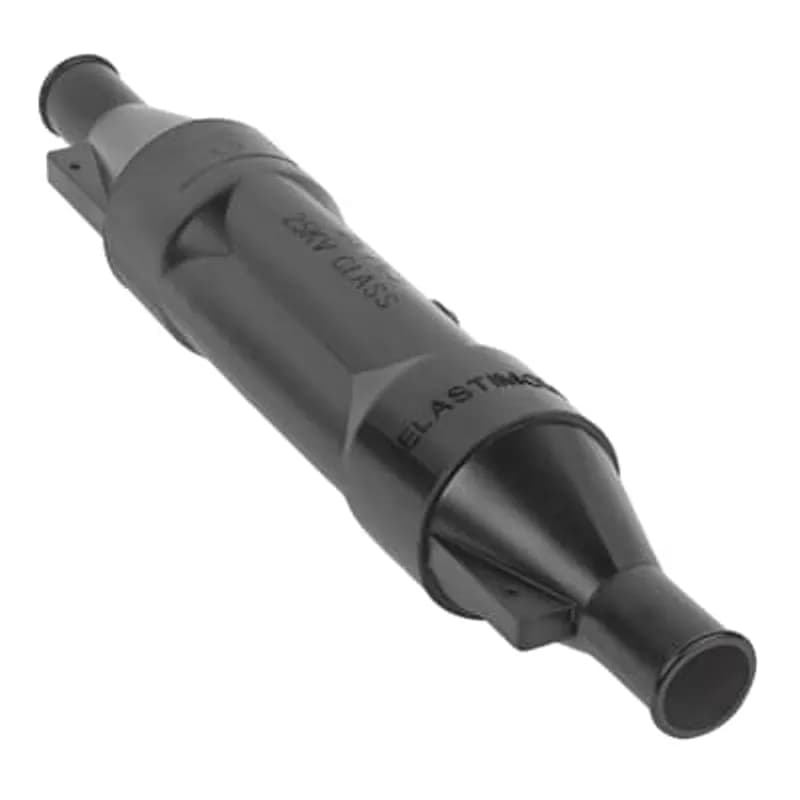

ABB - Installation Products 25PCJ1G2220 - 25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.760 inch to 0.950 inch. Copper Conductor. Conductor Size AWG Stranded #2/Solid #1.
More images

ABB Installation Products 25PCJ1G2220 25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter…

UPC: 783786427840


Documents & Media
BrochureInstallation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB Installation Products 25PCJ1G2220 is a 25kV power cable joint designed for medium-voltage applications requiring reliable, high-integrity splices. This joint accommodates cable insulation diameters from 0.760 inch to 0.950 inch, ensuring compatibility with a range of standard power cables. The single-piece housing simplifies installation by eliminating multiple components, reducing assembly time and potential error points. The joint supports both stranded AWG #2 and solid AWG #1 copper conductors, providing flexibility for retrofit or new construction projects. The design is optimized for medium-voltage systems where operational integrity and long-term reliability are critical. Typical applications include utility substations, industrial power distribution, commercial facilities, and renewable energy installations where 25kV-rated splices are required. The joint maintains dielectric integrity under standard operating conditions, ensuring consistent performance in medium-voltage networks. Installation requires proper cable preparation and adherence to ABB’s splicing guidelines to achieve rated performance. This product is part of ABB’s Installation Products portfolio, known for durable, field-proven solutions in power infrastructure. SKU 25PCJ1G2220 is a direct replacement for compatible 25kV cable systems within the specified insulation diameter range.
  • Rated for 25kV medium-voltage applications
  • Single-piece housing for simplified installation
  • Supports cable insulation diameters from 0.760" to 0.950"
  • Compatible with stranded AWG #2 and solid AWG #1 copper conductors
  • Part of ABB Installation Products portfolio for power infrastructure

Specifications

Application
For Direct Burial, Vault, Submersible and Other Severe Service Applications
Color
Black
Conductor Range
#2 STR AWG , #1 SOL AWG
Connection
Compression
Connection Type
Single-piece housing
Insulation
Yes
Material
EPDM Rubber
Material
Copper Conductor, Single Piece Housing
Number Of Conductors
2
Series
Style 1
Size
14-3/8 inch long
Size
Cable Insulation Diameter 0.760 inch to 0.950 inch
Special Features
Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to ensure system matched performance and ratings equal to the cable to which the splice will be installed. Power Cable Joints are available in two styles. Style 1 uses a single-piece housing that is sized to accommodate a specific range of cable - ideally suited to straight splicing of the same or similar cable. Style 2 designs incorporate a universal housing with separate cable adapters to allow transition splices of different types and sizes of cable
Standard
IEEE Standard 404
Type
Power Cable Joint
Voltage Rating
25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
3.2500 L
Package Weight (Metric)
1.4740 kg
25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Conductor. Conductor Size AWG Stranded #2/Solid #1.

25PCJ1H1220

25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Conductor. Conductor Size AWG Stranded #2/Solid #1.
28kV Power Cable Joint Style 1 with Single Piece Housing for Canada, Cable Insulation Diameter 0.980 inch to 1.180 inch.

28PCJ1J

28kV Power Cable Joint Style 1 with Single Piece Housing for Canada, Cable Insulation Diameter 0.980 inch to 1.180 inch.
15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Conductor. Conductor Size AWG Stranded 1000.

15PCJ2N1410

15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Conductor. Conductor Size AWG Stranded 1000.
25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Conductor. Conductor Size AWG Solid 500.

25PCJ1L1310

25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Conductor. Conductor Size AWG Solid 500.
15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Conductor. Conductor Size AWG Stranded 500.

15PCJ1M1330

15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Conductor. Conductor Size AWG Stranded 500.
25kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Conductor. Conductor Size AWG Stranded 750.

25PCJ2N1380

25kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Conductor. Conductor Size AWG Stranded 750.
15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Conductor. Conductor Size AWG Stranded 500.

15PCJ1M2330

15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Conductor. Conductor Size AWG Stranded 500.
15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Conductor. Conductor Size AWG Solid 750. Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Conductor. Conductor Size AWG Stranded 450.

15PCJ2L2380-K2320

15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Conductor. Conductor Size AWG Solid 750. Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Conductor. Conductor Size AWG Stranded 450.

Frequently Asked Questions

What are Elastimold PCJ power cable joints used for?

They are used for straight splicing of two similar cables or transition splicing of different cable sizes, providing a permanent, fully shielded, and submersible splice.

What is the short-time current rating of PCJ joints?

The short-time current rating of PCJ power cable joints is equal to that of the cable rating, up to 35 kA.

What connector type should be used for copper-to-copper connections?

For copper-to-copper connections, an all-copper compression connector is required. Copper connectors should not be used on aluminum conductors.

What is the DC withstand voltage for 25 kV class with EPR cables?

For 25 kV class with EPR insulated cables, the DC withstand voltage for the first 5 years post-installation is 64 kV.

What is the DC withstand voltage for 25 kV class with XLPE cables?

For 25 kV class with XLPE insulated cables, the DC withstand voltage for the first 5 years post-installation is 25 kV.

What standards do PCJ joint shields and connectors meet?

The shield design meets IEEE 592 standard, and the connectors meet ANSI 119.4 Class A and Class 3 ratings.

What is the maximum pull force the interlock can withstand?

The pin-and-socket interlock design of the PCJ power cable joints can withstand a pull force up to 500 lb.

What is the continuous current rating of PCJ joints?

The continuous current rating of PCJ power cable joints is equal to that of the cable rating.

Where can PCJ power cable joints be installed?

They can be installed in direct-burial, underground vault, and overhead applications, as they provide a permanent, fully shielded, and submersible splice.

What are the two styles of PCJ power cable joints?

Style 1 is for straight splicing of two similar cables, while Style 2 uses separate cable adapters for transition splicing between different cable sizes.

How to Install the ABB 15/25/35PCJ1 Series Cable Joint

This guide provides step-by-step instructions for the permanent installation of the ABB 15/25/35PCJ1 series straight joint for wire shielded cables, connecting aluminum to aluminum or aluminum to copper conductors. Ensure all safety precautions are followed for high voltage electrical equipment.

Estimated time: 2h

Tools needed:

Cable stripping tools, Knife or utility blade, Wire brush, Crimping tool, Measuring tape or ruler, Cleaning cloths/wipes, T&B WT3D tool (for 35kV only)

Supplies needed:

Appropriate connector (for grounding wires), DELTEC Cable ties (TYD5135, for 35kV only), #14 AWG copper wire (or equivalent, if shield wires are smaller than #14 AWG), Cable jacket reconstruction material (if applicable)

  1. De-energize and Inspect Components

    Before beginning, ensure all apparatus in the work area are completely de-energized. Verify the contents of the package are complete and undamaged, and inspect all components for proper fit with the cable and/or mating products. Do not touch or move energized products in the work area.

  2. Prepare Cables for Joint Centerline

    Overlap both cables and cut them to 12 inches (305mm) from the intended center line of the joint. Where applicable, remove the cable jacket of Cable 1 to 37 inches (940mm) and Cable 2 to 21 inches (530mm). Fold back the shield wires, then cut both cables precisely at the joint centerline.

  3. Prepare Cable 1 and Store Housing

    Taper the edge of Cable 1's insulation shield from 1/2 inch to 1-1/2 inches (13mm to 38mm). Clean and lubricate the insulation shield. Lubricate the inside bore of the joint housing on both ends. Carefully slide the joint housing onto Cable 1, positioning it up to the shield wires.

  4. Prepare Cables for Splice

    Carefully remove the cable insulation and then the insulation shield from both Cable 1 and Cable 2 according to the specified 'X' and 'Y' dimensions (refer to the document's dimension table for your specific conductor size). Exercise extreme caution to avoid cutting or nicking the cable insulation or conductor during this process.

  5. Install and Crimp the Splice

    If conductors are aluminum, wire-brush them thoroughly and immediately insert them into the splice. Check the dimension against the 'Max Check Before' table; if it exceeds, redo the assembly. Crimp the splice securely following the manufacturer's recommendations. Wipe off any excess inhibitor. After crimping, check the distance between cable insulations against the 'Max Check After' table; if it exceeds, redo the assembly. Remove any sharp protrusions or burrs generated during crimping and ensure all metal chips/filings are removed from the splice and joint assembly area.

  6. Lubricate and Position Housing

    Clean the cables where indicated. Lubricate the cables in the direction of the arrows shown in the diagram, ensuring a build-up or ramp of lubricant at the edge of the insulation shield. Slide the joint housing into its final position, verifying proper placement by observing and equalizing the deformation of the joint ends caused by the underlying cable insulation shield.

  7. Install 35kV Specific Components (If Applicable)

    If installing for 35kV ONLY, install two DELTEC Cable ties (TYD5135) on each end of the cable entrance. Position the outer ties approximately 1/4 inch (6mm) from the edge of the splice, then install the second ties approximately 1/4 inch (6mm) from the first, ensuring an offset of the locking heads. Use the T&B WT3D tool to tighten and trim the ties. For 35kV ONLY, remove and discard the yellow pin from the joint grounding eye.

  8. Complete Grounding and Jacket Reconstruction

    Retrain the shield wires and secure them to the ends of the joint. Insert one shield wire from Cable 1 (if #14 AWG or larger) through the joint grounding eye, and repeat for Cable 2. If shield wires are smaller than #14 AWG, use separate #14 AWG copper wire or equivalent. Connect the joint grounding wires and any remaining shield wires using an appropriate connector. Finally, reconstruct the cable jacket (where applicable) over both cables and the joint housing.

Frequently Asked Questions about ABB - Installation Products

How are Thomas and Betts products typically installed?

Thomas and Betts products are installed using a variety of methods tailored to specific applications, including the use of flexible cords and cable fittings, non-metallic cable glands, and armored cable fittings. Proper selection of fittings is crucial to match the cable type and installation environment, ensuring durability and preventing physical damage. Tools such as the Blackburn® Comfort Crimp® and HEX-FLEX® systems enhance installation efficiency and reliability, reducing labor time and ensuring secure connections.

What accessories are available for Thomas and Betts products?

Thomas and Betts offers a comprehensive range of accessories for their products, including various cord and cable fittings, non-metallic cable glands, service entrance cable fittings, and armored cable fittings. Their accessories are designed to enhance installation efficiency and ensure compatibility with different cable types and environmental conditions, providing reliable connections for a wide array of applications.

What environmental ratings do Thomas and Betts products have?

Thomas and Betts products feature robust environmental ratings, including NEMA Type 1, 2, 3, 4, 4X, 12, and 13 certifications, as well as IEC 60529 IP66 protection. These ratings ensure that their products are designed to withstand harsh industrial environments, with capabilities to resist dust, water, and corrosion, and operate effectively in a wide temperature range.

What communication protocols do Thomas and Betts products support?

Thomas and Betts products support a wide range of industrial communication protocols, including Ethernet, DeviceNet, PROFIBUS, Modbus, CANopen, and others. This extensive compatibility ensures seamless integration and reliable communication across various industrial automation systems, catering to diverse application needs.

What are the key features of Thomas and Betts products?

Thomas and Betts products are known for their innovative designs, high performance, and compliance with industry standards such as the National Electrical Code and Underwriters' Laboratories. They offer a comprehensive range of rugged and reliable electrical fittings, including liquidtight and dust-tight connections, which enhance installation efficiency and reduce overall project costs. Their products are engineered for durability in harsh environments, ensuring long-term reliability and lower installed costs.

What are the main product lines offered by Thomas and Betts?

Thomas and Betts offers a comprehensive range of product lines including electrical connectors, cable management systems, grounding and bonding solutions, and industrial automation components. Their products are designed for durability and reliability in demanding industrial environments, ensuring optimal performance and safety across various applications.

What technical support does Thomas and Betts offer?

Thomas and Betts offers comprehensive technical support, including access to field application engineers for onsite training and installation assistance. Their technical support staff is available to address inquiries related to product specifications and installation practices, ensuring optimal performance and safety of electrical systems. Additionally, they provide a variety of training programs to enhance the knowledge and skills of users in the field.

What industries and applications are Thomas and Betts products used for?

Thomas and Betts products are utilized across various industries including electrical construction, industrial automation, telecommunications, and utilities. Their extensive range of cord and cable fittings, electrical boxes, and metal framing systems are designed for applications that require durability and reliability in harsh environments, ensuring optimal performance in both permanent and temporary installations.

What certifications and standards do Thomas and Betts products comply with?

Thomas and Betts products comply with critical international certifications including UL (Underwriters Laboratories), CSA (Canadian Standards Association), and CE (European Community). Our products are designed to meet rigorous industrial standards such as NEMA enclosure ratings and IEC 60529 IP ratings, ensuring safety and reliability across various industrial applications.

What are the main product lines offered by Ocal?

Ocal offers a comprehensive range of corrosion-resistant conduit systems, including PVC-coated conduit and fittings, conduit bodies, hazardous location fittings, and strut accessories. Their products are designed to provide superior corrosion protection, featuring a hot-dipped galvanizing process and UL listed Type 4X PVC-coated conduit bodies, ensuring durability in the most demanding environments.
