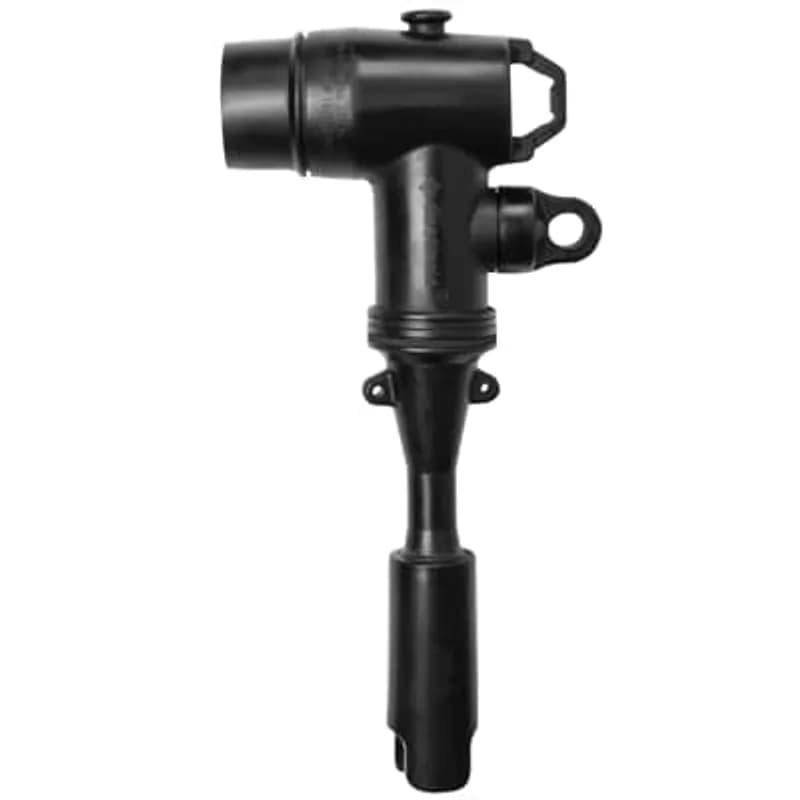

Overview
- 25 kV voltage rating
- 200 Amp continuous current rating
- Deadbreak elbow connector design
- Integrated test point for circuit testing
- Bi-metal lug for conductor sizes 220 - #2 Stranded/Compressed or #1 Compact/Solid
Specifications
Amperage Rating | 200 A |
Application | 15/25kV, 200 Amp Deadbreak Connection |
Color | Black |
Conductor Range | #2 STR/COMPR AWG , #1 SOL/COMPT AWG |
Connection | Compression |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Housing - EPDM-Rubber |
Size | Cable Insulation Diameter - .635 to .905 inch |
Special Features | Equipped with an Internal Voltage Test Point. Has Provisions for De-Energized Operation using Standard Hotstick Tools |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector with Test Point and Jacket Seal |
Voltage Rating | 15 to 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
168FLR1-B5220
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
168FLR1-B5210
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 3 AWG Stranded/Compressed, 2 AWG Solid/Compact. no Sealing Kit. Housing Fuse Size and Voltage Code 1 - 3-45 Amps, 8.3kV and 6-20 Amps, 15.5kV.
252LR-E5270
15/25 kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.09-1.31 inches (27.48-33.27 mm), Bi-Metal Lug, Conductor Size 270 - 4/0 Stranded/Compressed, 250 kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 7.531 inches, 2.097 inch diameter.
262LR-C2240
28kV, 200 Amps, Loadbreak Elbow Connector with Test Point, No Sealing Kit, .805 inch - 1.060 Inch Cable Insulation Diameter, 1/0 Stranded, 2/0 Solid Wire Size, Copper Compression Lug. Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installation Instructions.262LR-C2260
28kV, 200 Amps, Loadbreak Elbow Connector with Test Point, No Sealing Kit, .805 inch - 1.060 Inch Cable Insulation Diameter, 3/0 Stranded, 4/0 Solid Wire Size, Copper Compression Lug. Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installation Instructions.
K656I-H0250-S
15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 2/0 /Compacted Solid 3/0 /mmSquared Compact 70. Cold-Shrinkable Jacket Seal Included.
K655LR-G0240-SG3
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.How to Install the 252LRJS Deadbreak Elbow Connector
This guide provides step-by-step instructions for installing the Elastimold 252LRJS Deadbreak Elbow Connector, designed for terminating UD cable with jacketed concentric neutral and semi-con shielding to 25kV class deadbreak bushings or accessories.
Estimated time: 2h
Tools needed:
Probe Wrench, Hotstick, Wire brush, Crimp tool
Supplies needed:
Elbow Connector Housing, Compression Lug, Probe, Lubricant, Hold-down Bail, Mastic, Vinyl Tape, No. 14 AWG (2.5mm) Copper wire, Appropriate connector for neutral wires, HV insulated cap(s) or connector(s) (if shipping covers are removed)
- Ensure Safety and Inspect Components
Before beginning, ensure all apparatus are de-energized. Do not touch or move energized products. Inspect all parts for damage, correct rating, and compatibility with mating components. Verify the elbow housing cable entrance size and compression lug size match your cable. Check the probe threads by hand-threading it into the compression lug; if resistance occurs, replace damaged parts. Gather all required tools and maintain cleanliness throughout the procedure.
- Prepare the Cable
Train the cable to ensure sufficient slack for operation. Create an extra length of concentric neutral wires (24-26 inches beyond the bushing centerline) or grounding braid for hotstick operation and neutral connection. Unwrap neutral wires past the bushing centerline and cut the cable squarely at the bushing centerline. Wrap one strip of mastic around the jacket, bend neutral wires back over it, and press them into the mastic. Wrap a second strip of mastic over the neutral wires, and a third if needed, then cover all mastic with vinyl tape. Remove the insulation shield and insulation from the cable end, cutting squarely without nicking the conductor. Wire brush bare aluminum conductors and immediately install the compression lug, rotating to spread inhibitor. Align the lug's threaded hole with the bushing bore and crimp according to the crimp chart, rotating 180 degrees for each successive crimp. Wipe off excessive inhibitor. Remove the insulation shield as shown in the diagram, beveling the insulation end 1/8 inch maximum. Thoroughly clean the insulation to remove all conductive residue.
- Assemble the Elbow
Clean and lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable using a back and forth twisting motion, then wipe off all excess silicone lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring not to cross-thread. Tighten the probe with the supplied wrench until the wrench bends.
- Install the Hold-down Bail
Place the hold-down bail into the hold-down bracket.
- Connect the Concentric Neutral
Pull the hood over the concentric neutral seal area on the cable by pulling the tabs or rolling the seal down. Insert one end of a separate No. 14 AWG (2.5mm) copper wire or equivalent through the grounding eye on the elbow and twist tightly, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation.
- Connect Elbow to Bushing Plug
Clean the receptacle portion of the elbow connector and the mating bushing, then lubricate with the supplied lubricant ONLY if the transformer and elbow are known to be de-energized. Use a fully insulated hot stick to place the elbow onto the bushing. DO NOT OPERATE BY HAND. DO NOT SEPARATE IF ENERGIZED.
- Secure the Elbow with the Bail
Pull the hold-down bail up over the crown or top of the elbow so that the eyebolt on the bail is directly over the operating eye. Tighten down on the elbow locator by turning the eyebolt clockwise. Adjust the nut on the eyebolt to allow the eyebolt to seat securely in the locator, acting as a stop to prevent excessive force on the elbow. Once set, the nut will not need readjustment for future removal and replacement.
