Overview

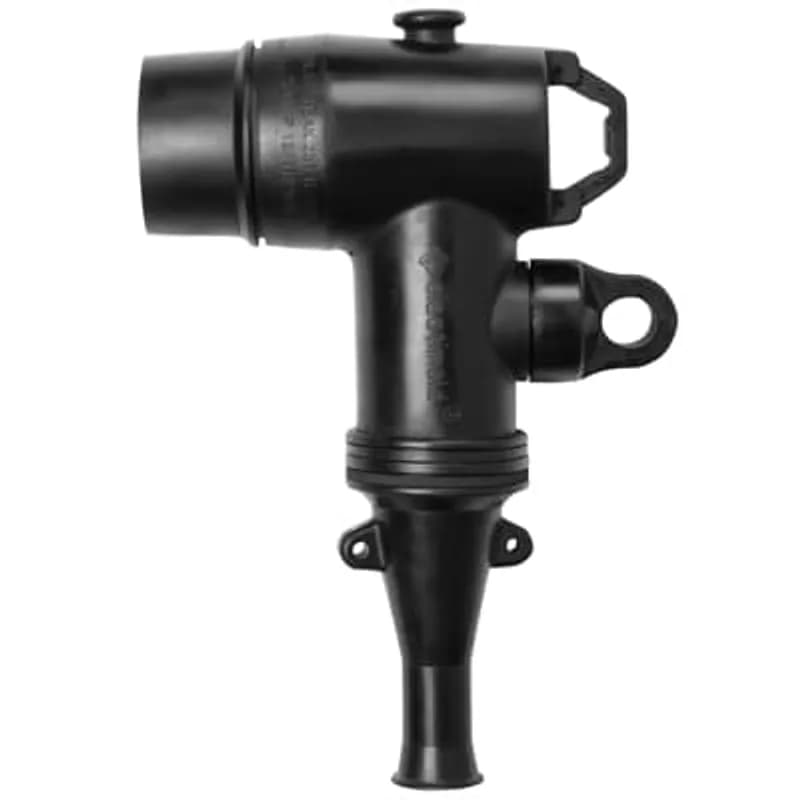

- 24kV voltage rating, 250A current rating for medium-voltage applications
- Supports copper conductor size 70mm² with 20.45-26.92mm cable insulation diameter
- Deadbreak design enables safe, energized connections without service interruption
- Includes test point for voltage verification, probe, probe wrench, and bail assembly
- IEC-compliant, complete installation kit with lubricant, instructions, and crimp chart
Specifications
Amperage Rating | 250 A |
Application | 12/20 (24) kV |
Color | Black |
Conductor Range | 70 mm |
Connection | Compression |
Environmental Conditions | Harsh Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Special Features | Robust Stainless Steel Pulling Eye. Dual Grounding Eye Positions. Designed to Remain Fully Operational in Harsh Conditions |
Standard | IEC 60502-4, CEN 629.1 S2 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector with Test Point |
Voltage Rating | 15 to 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
CI16-90-AT8PL
Hinged Connector Interface Fitting, Standard Profile Plug, 90 Degree Elbow with 360 Degree Swivel, 8-Way Ampseal Automotive Connector to Conduit, Conduit Size NC16/NW13, Operating Temperature -40 to 120 Degrees Celsius, RoHS Compliant, IP40 Rating, Very High UV Protection, Polyamide (Nylon), Black
VAG-022-00
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 24V, 10A, LED w/MOV, .5-NPT opening
T1505063000-000
Rectangular hoods and bases portfolio features base housing, cover, hood, or hood and base housing assembly with inserts connector product types. Products are designed for bottom, side, top, or top and side cable entry. Rectangular hoods and bases offer solutions with a variety of hood and base locking device types as well as connector mounting types.Frequently Asked Questions
What conductors are compatible with the copper lug?
The copper lug included in the kit is suitable for all copper conductors only.
What items are included in the elbow connector kit?
Each kit contains the elbow connector housing, copper lug, probe, probe wrench, standard bail assembly, lubricant tube, installation instructions, crimp chart, and a V.D. cap-peroxide.
How is the X code selected for the connector?
The X code is chosen according to the conductor size (mm2) from the conductor code table, which lists codes for copper lugs suitable for copper conductors.
How is the W code selected for the connector?
The W code is selected by determining the cable's insulation diameter and choosing the insulation letter code from Table W that best straddles that diameter.
What standards does the elbow connector meet?
The elbow connector meets the requirements of both the IEC 60502-4 and CEN 629.1 S2 standards. It has been tested and certified by KEMA.
What is the Elastimold IEC 250 amp deadbreak elbow connector?
It is an IEC 250 amp deadbreak elbow connector designed for 12/20 (24) kV applications, offering safety and quality associated with the Elastimold brand.
How is the X code selected for the connector?
The X code is chosen according to the conductor size (mm2) from the conductor code table, which lists codes for copper lugs suitable for copper conductors.
What conductors are compatible with the copper lug?
The copper lug included in the kit is suitable for all copper conductors only.
What items are included in the elbow connector kit?
Each kit contains the elbow connector housing, copper lug, probe, probe wrench, standard bail assembly, lubricant tube, installation instructions, crimp chart, and a V.D. cap-peroxide.
How is the W code selected for the connector?
The W code is selected by determining the cable's insulation diameter and choosing the insulation letter code from Table W that best straddles that diameter.
