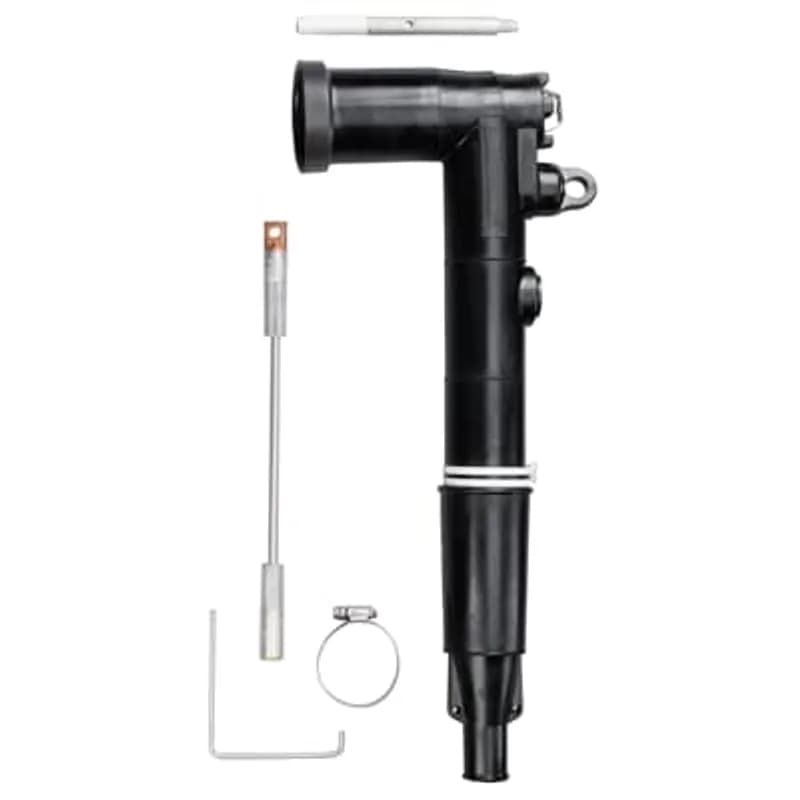

ABB Installation Products 168RLR-H-240 200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation…
UPC: 783786646289
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp, 15kV rated loadbreak replacement elbow connector
- Accommodates cable insulation diameters from 0.850 to 1.050 inches
- Supports conductor sizes: AWG compressed stranded 1/0, AWG solid 2/0, and 53.49 mm²
- Extended length contact and housing for 8-7/8 inch net gain in length
- Integrated test point for safe voltage verification without disconnection
- Includes 00400X long Bi-Metal Contact for reliable conductivity across temperature cycles
- Supports AWG 1/0, 2/0, and 53.49 mm² conductors
Specifications
Amperage Rating | 200 A |
Application | Repair of a Failed Elbow Connection |
Color | Black |
Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
Connection | Compression |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Length | 18 in |
Length | 457.2 mm |
Material | Housing - EPDM-Rubber |
Special Features | Extended Length Housing and Compression Lug. Fully Shielded, Fully Submersible Molded Rubber Housing. 100 Percent Peroxide-Cured Insulation, Insert and Jacket. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Non-Corrosive Capacitive Test Point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Replacement Elbow Connector with Test Point |
Voltage Rating | 15 kV |
Width | 7.63 in |
Width | 193.802 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.1000 L |
Package Weight (Metric) | 1.4060 kg |
252LR-C5240
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, Cable Insulation Diameter - .805-1.060 inch Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
776LR-J5270-S
900 Amp, 35kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125. Cold-Shrinkable Jacket Seal Included.
274RLR-G-230
25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
K465LR-G-0250
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.760-0.950 inches (19.304-24.130mm). Aluminum Compression Lug, Conductor Size 2/0 Stranded/Compressed or 3/0 Solid/Compact or 70 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.168RLR-H-270
15kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
756LR-M2380-SG3
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.K465LR-G-0230
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.760-0.950 inches (19.304-24.130mm). Aluminum Compression Lug, Conductor Size #1 Stranded/Compressed or 1/0 Solid/Compact or 50 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.776LR-M5330-S
900 Amp, 35kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included.Frequently Asked Questions
Does this elbow include a test point?
Yes, the elbow connector features a built-in test point for voltage verification.
What is the current rating of this elbow connector?
The elbow connector has a 200 Amp current rating.
What cable insulation diameters does this connector support?
The connector supports cable insulation diameters ranging from 0.850 to 1.050 inches.
What is the voltage rating of this connector?
The connector is rated for 15kV class medium-voltage applications.
How much additional length does the extended housing provide?
The extended housing provides an additional 8-7/8 inches in length.
What conductor sizes are compatible with this elbow?
Compatible conductor sizes include AWG compressed stranded 1/0, solid 2/0, and 53.49 mm².
What type of contact is included in this elbow?
The elbow includes a 00400X long Bi-Metal Contact for reliable conductivity.
How to Install the 167RLR/168RLR Loadbreak Replacement Elbow Connector
This guide provides step-by-step instructions for the safe installation and initial setup of the 167RLR and 168RLR Loadbreak Replacement Elbow Connectors, converting livefront terminations to deadfront for UD cable.
Estimated time: 1h
Tools needed:
Probe wrench, Hotstick, Wire brush, Crimping tool, Cutting tool, Wire strippers, Suitable sensing device (for capacitive test points)
Supplies needed:
Replacement Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied, do not substitute), Hose Clamp, Copper wire (No. 14 AWG / 2.5mm or equivalent), Appropriate connector (for neutral to ground), Silicone grease, HV insulated cap(s) or connector(s) (if replacing shipping covers)
- Perform Pre-Installation Checks and Safety Measures
Ensure all apparatus is de-energized before beginning installation or removal of parts. Check the package contents for completeness and damage. Verify all components fit properly with the cable and/or mating products. Thread the probe into the compression lug to check for resistance; replace damaged components if resistance is encountered. Read all installation instructions thoroughly and have all required tools at hand, maintaining cleanliness throughout the procedure.
- Remove Livefront Terminator
Remove the rubber cap from the existing terminator. Cut off the connector at the top of the terminator. Disconnect the ground lead from the base of the terminator. Carefully remove the terminator housing from the cable.
- Prepare the Cable
Train the cable to be straight and in-line with the bushing centerline. Measure and cut the cable to 10-1/2 inches from the bushing centerline. If the insulation shield measures less than 6-1/2 inches from the end of the cut cable, proceed to the next step. Remove 1-3/8 inches of cable insulation from the end of the cable, ensuring the cut is square and the conductor is not nicked.
- Install the Compression Lug
Wire brush the bare aluminum conductor immediately. Install the compression lug onto the conductor, rotating it to spread the inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart provided with the lug, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excessive inhibitor from the outside of the lug and cable.
- Assemble the Elbow Housing
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Keep the insulation clean and avoid introducing excess grease into the gap between the lug and insulation. Slide the elbow connector onto the cable using a back-and-forth twisting motion, then wipe off all excess grease. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the wrench until the wrench bends.
- Connect the Concentric Neutral
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow and twist it tight, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector, providing adequate slack in the wires for elbow operation. Add the supplied hose clamp as shown in the instructions and tighten it snugly, but do not overtighten.
- Prepare for Final Elbow Connection
Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant ONLY IF the transformer and elbow are known to be de-energized. Do not operate the elbow by hand; use a full insulated hotstick type live-line tool for any subsequent operations.
- Perform Voltage Test (168RLR ONLY)
For 168RLR models, remove the test point cap with a hotstick by peeling it off at an angle. WARNING: The voltage test point is a capacitance device and not directly connected to the conductor. Do not use conventional voltage measuring equipment. Use a suitable sensing device made for capacitive test points and follow its manufacturer's directions. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means, as contamination or incorrect equipment can provide a false reading. After testing, clean and lubricate the inside surface of the cap with silicone grease and replace it on the test point.
