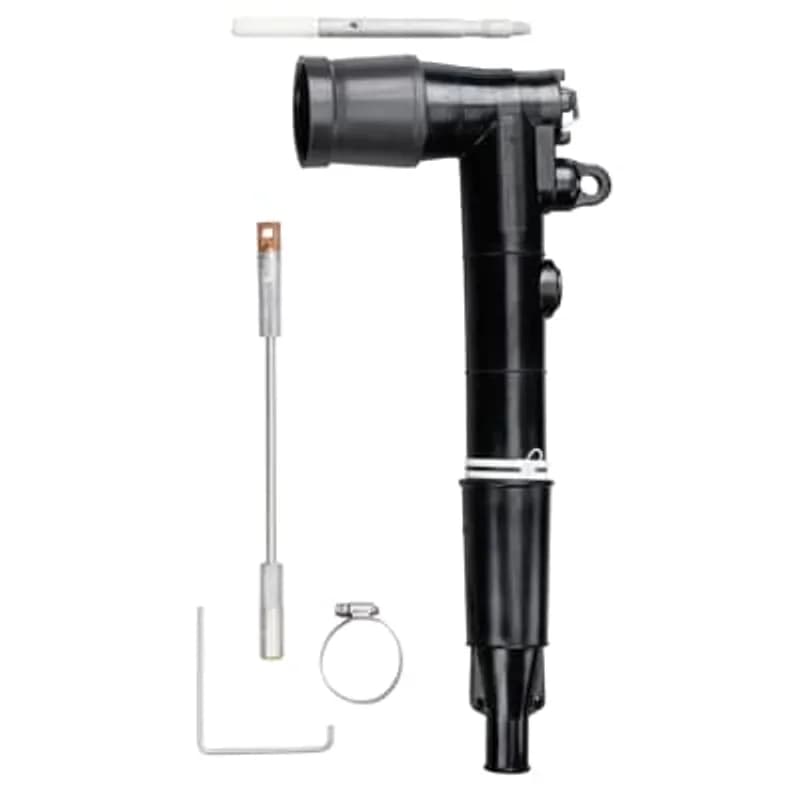

ABB - Installation Products 274RLR-G-230 - 25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.

ABB Installation Products 274RLR-G-230 25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation…

UPC: 783786666935


Documents & Media
BrochureInstallation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 274RLR-G-230 is a 25kV, 200 Amp loadbreak elbow connector designed for reliable electrical connections in medium voltage applications. This connector features an integrated test point, facilitating safe and efficient testing of the circuit without de-energizing the system. Engineered by ABB Installation Products, this component is built to handle demanding electrical loads. It is compatible with cable insulation diameters ranging from 0.760 inches to 0.950 inches. The connector supports conductor sizes including AWG Compressed Stranded #1 and Solid 1/0, with a corresponding mm² size of 42.41. Its robust construction ensures secure and dependable performance in power distribution networks. The 274RLR-G-230 is a critical component for utility, industrial, and commercial power systems requiring safe and efficient loadbreak capabilities. The inclusion of a test point simplifies maintenance and troubleshooting procedures, enhancing operational efficiency and safety. This elbow connector is manufactured to meet stringent industry standards for medium voltage equipment, ensuring long-term reliability and performance. Its design prioritizes ease of installation and secure termination, making it a practical choice for electrical contractors and maintenance personnel.
  • 25kV operating voltage rating
  • 200 Amp continuous current rating
  • Integrated test point for safe testing
  • Accommodates cable insulation 0.760" to 0.950"
  • Supports AWG #1 Stranded and 1/0 Solid conductors

Specifications

Amperage Rating
200 A
Application
Repair of a Failed Elbow Connection
Color
Gray
Color
Black
Conductor Range
#1 STR/COMPR AWG , 1/0 SOL/COMPT AWG
Conductor Size
AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41
Connection
Compression
Connection Type
Loadbreak Replacement Elbow Connector with Test Point
Current Rating
200 A
Environmental Conditions
All Weather Conditions
Insulation
True
Length
18 in
Length
457.2 mm
Material
Poly
Material
Housing - EPDM-Rubber
Size
Cable Insulation Diameter 0.760 inch to 0.950 inch
Special Features
Extended Length Housing and Compression Lug. Fully Shielded, Fully Submersible Molded Rubber Housing. 100 Percent Peroxide-Cured Insulation, Insert and Jacket. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Non-Corrosive Capacitive Test Point
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Loadbreak Replacement Elbow Connector with Test Point
Voltage Rating
25kV
Voltage Rating
25 kV
Width
7.63 in
Width
193.802 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
4.5100 L
Package Weight (Metric)
2.0460 kg
600 Amp, 15/25kV, Deadbreak, Straight Receptacle with Test Point, Cable Insulation Diameter .850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1 or Compacted Solid 1/0.

K656YSR-H0230

600 Amp, 15/25kV, Deadbreak, Straight Receptacle with Test Point, Cable Insulation Diameter .850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1 or Compacted Solid 1/0.
Solenoid Valve Connectors, Accessory, Form C gasket

V-GP1C8

Solenoid Valve Connectors, Accessory, Form C gasket
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.760-0.950 inches (19.304-24.130mm). Aluminum Compression Lug, Conductor Size 2/0 Stranded/Compressed or 3/0 Solid/Compact or 70 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.

K465LR-G-0250

15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.760-0.950 inches (19.304-24.130mm). Aluminum Compression Lug, Conductor Size 2/0 Stranded/Compressed or 3/0 Solid/Compact or 70 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.
15kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.

168RLR-H-270

15kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

756LR-M2380-SG3

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.760-0.950 inches (19.304-24.130mm). Aluminum Compression Lug, Conductor Size #1 Stranded/Compressed or 1/0 Solid/Compact or 50 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.

K465LR-G-0230

15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.760-0.950 inches (19.304-24.130mm). Aluminum Compression Lug, Conductor Size #1 Stranded/Compressed or 1/0 Solid/Compact or 50 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.
900 Amp, 35kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included.

776LR-M5330-S

900 Amp, 35kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included.
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size AWG or kcmil, Compressed Stranded 550. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

756LR-M2340-SG3

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size AWG or kcmil, Compressed Stranded 550. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

Frequently Asked Questions

What is the maximum voltage rating for this elbow connector?

The ABB 274RLR-G-230 has a maximum operating voltage rating of 25kV.

What is the continuous current capacity of this connector?

This loadbreak elbow connector is rated for 200 Amps of continuous current.

What cable insulation diameters does this connector support?

The connector is designed to fit cable insulation diameters ranging from 0.760 inches to 0.950 inches.

What conductor sizes are compatible with this elbow connector?

It supports AWG Compressed Stranded #1 and Solid 1/0 conductors, with a mm² size of 42.41.

Does this connector have a test point?

Yes, the ABB 274RLR-G-230 features an integrated test point for convenient testing.

How to Install the 274RLR Loadbreak Replacement Elbow Connector

This guide provides step-by-step instructions for the installation and initial setup of the 274RLR Loadbreak Replacement Elbow Connector. Installation must be performed by competent personnel trained in high voltage electrical equipment, with all apparatus de-energized.

Estimated time: 2h

Tools needed:

Hotstick (full insulated live-line tool), Wire brush, Wrench (for probe), Suitable sensing device (for capacitive test points)

Supplies needed:

Replacement Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied, do not substitute), Hose Clamp, Copper wire (No. 14 AWG / 2.5mm) or equivalent, Appropriate ground connector, Silicone grease

  1. De-energize Apparatus and Remove Existing Termination

    DANGER: Ensure all apparatus is de-energized before beginning installation or removal of parts. Remove the rubber cap from the existing terminator. Cut off the connector at the top of the terminator and disconnect the ground lead from its base. Finally, remove the terminator housing from the cable.

  2. Prepare the Cable

    Train the cables to be straight and in-line with the bushing centerline. Measure and cut the cable to 10-1/2 inches from the bushing centerline. If the insulation shield measures less than 6-1/2 inches from the end of the cut cable, proceed. Otherwise, consult an ELASTIMOLD representative. Carefully remove 1-3/8 inches of cable insulation from the end, ensuring not to nick the conductor. Cut squarely.

  3. Install Compression Lug

    Wire brush the bare aluminum conductor immediately after preparation. Install the compression lug, rotating it to spread the inhibitor. Position the lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe off any excessive inhibitor from the outside of the lug and cable.

  4. Assemble the Elbow Connector

    Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable using a back-and-forth twisting motion, then wipe off all excess grease. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with a wrench until the wrench bends, indicating proper torque.

  5. Connect the Concentric Neutral

    Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow and twist it tightly, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector. Ensure adequate slack in the wires for elbow operation. Add the supplied hose clamp as shown in the documentation and tighten it snugly, but do not overtighten.

  6. Connect the Elbow to the Bushing

    Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant ONLY if the transformer and elbow are known to be de-energized. Securely fasten a hotstick to the loadbreak connector pulling eye. After establishing firm footing and positive control, place the elbow connector receptacle area over the bushing plug, inserting the elbow male contact into the bushing until the first slight resistance is felt. Immediately push the elbow home with a fast, firm, straight motion to engage the internal lock on the elbow and bushing interface.

  7. Perform Voltage Test (274RLR ONLY)

    For 274RLR models, remove the test point cap with a hotstick, peeling it off at an angle rather than pulling directly. WARNING: The voltage test point is a capacitance device; do not use conventional voltage measuring equipment. Test with a suitable sensing device designed for capacitive test points, following the manufacturer's directions. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means. After testing, clean and lubricate the inside surface of the cap with silicone grease and replace it on the test point.
