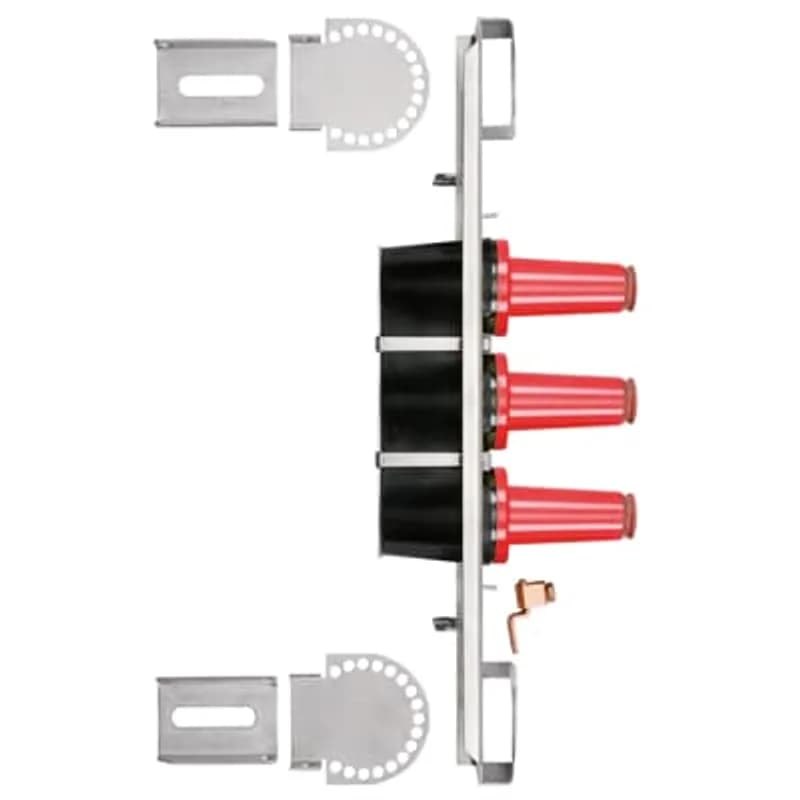

ABB Installation Products 164J3-6 3-way Junction Hardware Package Brackets and Straps only
UPC: 783786637188
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV, 200-ampere loadbreak/loadmake junction
- Fully shielded, fully submersible molded rubber housing
- Stainless steel mounting brackets and hardware for flat or curved surfaces
- Meets ANSI/IEEE Standard 386 with 95kV BIL impulse withstand
- Compatible with Elastimold® Elbow connectors and accessories
Specifications
Application | 15 kV, 200 Amps |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Junction 3-Way |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0500 L |
Package Weight (Metric) | 0.0230 kg |
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
151-SRC-0AX
200 Amp, 15/25kV, Straight Receptacle Pin Contact and Crimp Barrel Assembly. Wire Size #1 Stranded.Frequently Asked Questions
What other ELASTIMOLD® products are compatible with this junction?
The junction is designed to mate with ELASTIMOLD® 15kV Family of Elbow Connectors, 160GLR Grounding Elbow, 370TR Test Rod, and 160DR/DRG or 167/168DRG Insulated Caps.
What is the operating voltage for the 164J3 junction?
The 164J3 junction is suitable for 15kV class distribution systems. Its operating voltage is 8.3kV Phase-to-Ground, with a maximum Phase-to-Phase voltage of 14.4kV.
Where can the ELASTIMOLD® junctions be used?
ELASTIMOLD® junctions are designed for subsurface, vault, or padmount applications. They can be used for sectionalizing, looping, tapping, and equipment bypass.
What type of junction is the 164J3 and what is its capacity?
The 164J3 is a 15kV, 200 Amp Loadbreak 3-Way Junction. It is rated for 200-ampere continuous and loadbreak operation.
What other ELASTIMOLD® products are compatible with this junction?
The junction is designed to mate with ELASTIMOLD® 15kV Family of Elbow Connectors, 160GLR Grounding Elbow, 370TR Test Rod, and 160DR/DRG or 167/168DRG Insulated Caps.
What is the operating voltage for the 164J3 junction?
The 164J3 junction is suitable for 15kV class distribution systems. Its operating voltage is 8.3kV Phase-to-Ground, with a maximum Phase-to-Phase voltage of 14.4kV.
Where can the ELASTIMOLD® junctions be used?
ELASTIMOLD® junctions are designed for subsurface, vault, or padmount applications. They can be used for sectionalizing, looping, tapping, and equipment bypass.
What type of junction is the 164J3 and what is its capacity?
The 164J3 is a 15kV, 200 Amp Loadbreak 3-Way Junction. It is rated for 200-ampere continuous and loadbreak operation.
What type of junction is the 164J3 and what is its capacity?
The 164J3 is a 15kV, 200 Amp Loadbreak 3-Way Junction. It is rated for 200-ampere continuous and loadbreak operation.
Where can the ELASTIMOLD® junctions be used?
ELASTIMOLD® junctions are designed for subsurface, vault, or padmount applications. They can be used for sectionalizing, looping, tapping, and equipment bypass.
How to Install the ELASTIMOLD 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides step-by-step instructions for safely installing the ELASTIMOLD 160DRG and 167DRG insulated caps, designed for insulating, shielding, and watersealing 15kV class loadbreak bushing interfaces. Ensure all apparatus are de-energized before beginning.
Estimated time: 30m
Tools needed:
Eight-foot fully insulated hotstick
Supplies needed:
ELASTIMOLD 160DRG/167DRG Insulated Cap with Ground Lead, ELASTIMOLD approved lubricant
- Prepare for Installation and Ensure Safety
Before starting, ensure all apparatus are de-energized. Verify the contents of the package are complete and undamaged, and check all components for proper fit and compatibility with mating products. Confirm that only competent personnel trained in high voltage electrical equipment are performing the installation. Have all required tools at hand and maintain cleanliness throughout the procedure. DANGER: All apparatus must be de-energized during installation or removal of parts. Failure to follow these instructions will result in damage to the product and serious or fatal injury.
- Connect Electrostatic Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Ensure enough slack is left for hot-stick operation of the insulated cap. CAUTION: Train the electrostatic grounding wire so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Lubricate Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Do not substitute other lubricants, as they may be harmful. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Install Insulated Cap onto Bushing
Firmly attach an eight-foot long, fully insulated hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, ensuring it is fully mated with the locking ring seated. Detach the hotstick from the insulated cap.
