164J2-6

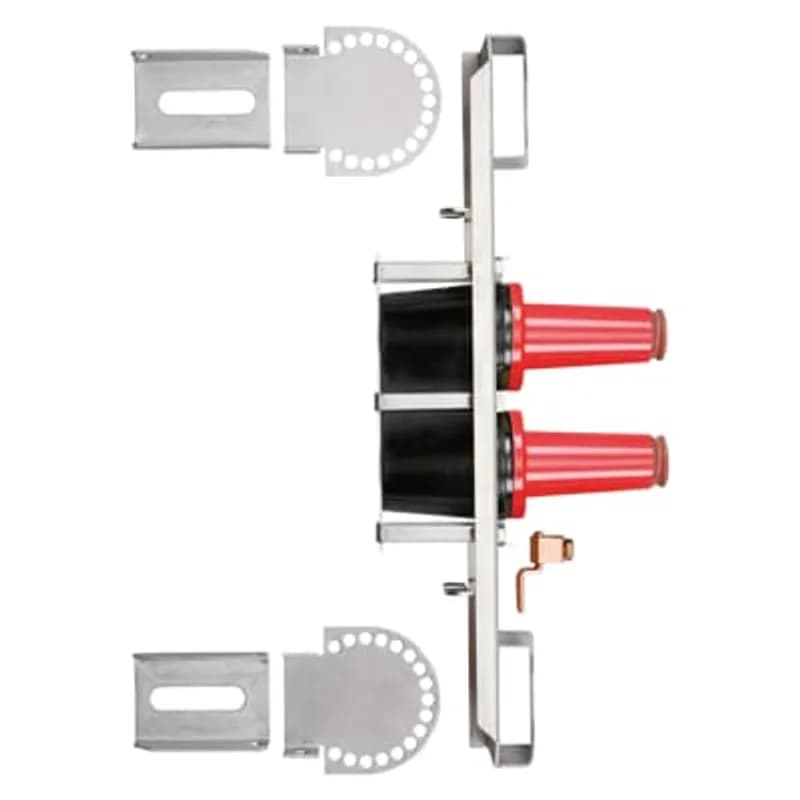

The 164J2 is a 15kV, 200 Amp Loadbreak 2-Way Junction with a fully shielded, fully submersible molded rubber housing.

The universal brackets provide tilt mounting angles from 0° to 90° in 15° increments.

Specify "164J2" when ordering the 15kV, 200 Amp, 2-way Loadbreak Junction.

The momentary and fault close rating is 10kA Sym for 10 cycles.

The corona extinction voltage is 11kV AC at 3pC sensitivity.

The one-minute AC withstand is 34kV, and the 15-minute DC withstand is 53kV.

The impulse withstand rating is 95kV BIL, based on a 1.2 x 50 microsecond wave.

The 164J2 junction meets ANSI/IEEE Standard 386, Latest Revision.

These junctions are suitable for use on 15-kV class distribution systems. They are rated for 200-ampere loadmake/loadbreak operation.

These junctions mate with 15kV Family of Elbow Connectors, 160GLR Grounding Elbow, 370TR Test Rod, 160DR/DRG Insulated Cap, and 167/168DRG Insulated Cap.
