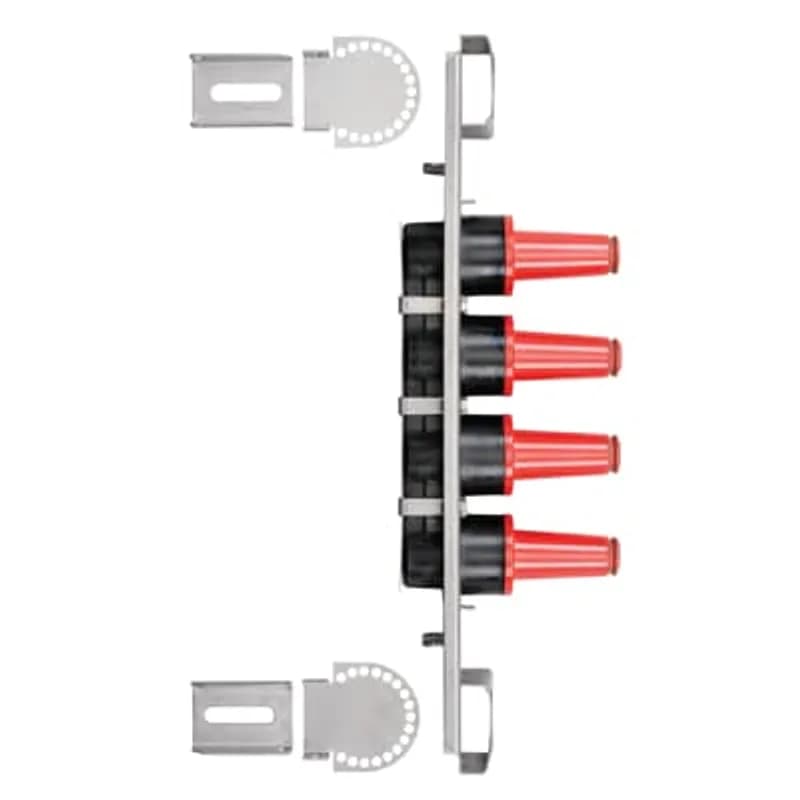

ABB Installation Products 164J4-4 200 Amp, 15kV, 4-Point Junction rubber only without straps.
UPC: 783786645367
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp continuous current rating
- 15kV rated for medium-voltage applications
- 4-point rubber junction box (no straps)
- Durable insulation for outdoor/indoor use
- Compatible with 15kV class cables
Specifications
Application | 15 kV, 200 Amps |
Current Rating | 200 A |
Material | Rubber |
Poles | 4P |
Series | 164J |
Size | 4-Point |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Junction 4-Point |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 9.8000 L |
Package Weight (Metric) | 4.4450 kg |
J4-6226-15-L
4 Point Junction, with one 200 Amp Bushing Well Interface, two 600 Amp Bushing interfaces and one 200 Amp Bushing Well Interface, 15kV, Left Parking Stand.
151-PS
Non LoadBreak Parking Stand, 304 Stainless Steel, Length 2 inch. Assembly includes Bracket, Spring and Rivet
1601-370
Gasket, Inside Diameter Diameter 2-1/2 inch, Outside Diameter 3-1/2 inch. Thickness of Gasket 1/4 inch. Oil Resistant Rubber Material.
138-366-55-14
TCJ (Transmission Cable Joint) Heat Sink Housing, Outside Diameter 3 inch, Bore Diameter 1.562 inch.1601-482
Hold Down Plate Pack for Deadbreak-Loadbreak Adaptor, Stainless Steel. 4.5 inch Outside Diameter, Inside Diameter 2.835 inch, 14 Gage Thick. Four .188 inch Diameter Thru Holes evenly spaced around rim. Includes Hardware: Four Hook Bolts and Wing Nuts, Lubricant and InstructionsFrequently Asked Questions
Does this junction box include straps?
No, the 164J4-4 is a rubber-only junction box without straps.
What is the voltage rating of this junction box?
The junction box is rated for 15kV medium-voltage applications.
What is the current rating of the ABB 164J4-4?
The junction box supports a continuous current rating of 200 Amps.
What cable class is compatible with this junction box?
The 164J4-4 is designed for 15kV class cables.
Is this junction box suitable for outdoor use?
Yes, the rubber construction provides resistance to environmental factors like moisture and UV exposure.
How to Install and Remove the 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides instructions for the safe installation and removal of the ELASTIMOLD 15kV class 160DRG and 167DRG insulated caps with ground lead on loadbreak bushing interfaces.
Estimated time: 15m
Tools needed:
Hotstick
Supplies needed:
Insulated Cap with Ground Lead, Lubricant
- Prepare for Installation and Ensure Safety
Before beginning, ensure all apparatus is de-energized. Inspect the contents of the package for completeness and damage. Verify all components fit properly with the cable and/or mating products. Have all required tools ready and maintain cleanliness throughout the procedure.
- Connect the Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Leave enough slack for hot-stick operation of the insulated cap. Ensure the electrostatic grounding wire is trained so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare and Lubricate the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. DO NOT SUBSTITUTE, as other lubricants may be harmful. Keep the internal mating surface free from dirt and grime.
- Install the Insulated Cap
Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, ensuring it is fully mated with the locking ring seated. Detach the hotstick from the insulated cap.
- Remove the Insulated Cap
To remove the cap, first attach a hotstick to the pulling eye. While the cap is still mated, rotate it slightly clockwise to break surface friction. Pull the receptacle off with a fast, firm, straight motion. After removal, detach the electrostatic grounding wire from the system ground and replace the protective cover on the insulated cap to keep its internal surface clean.
