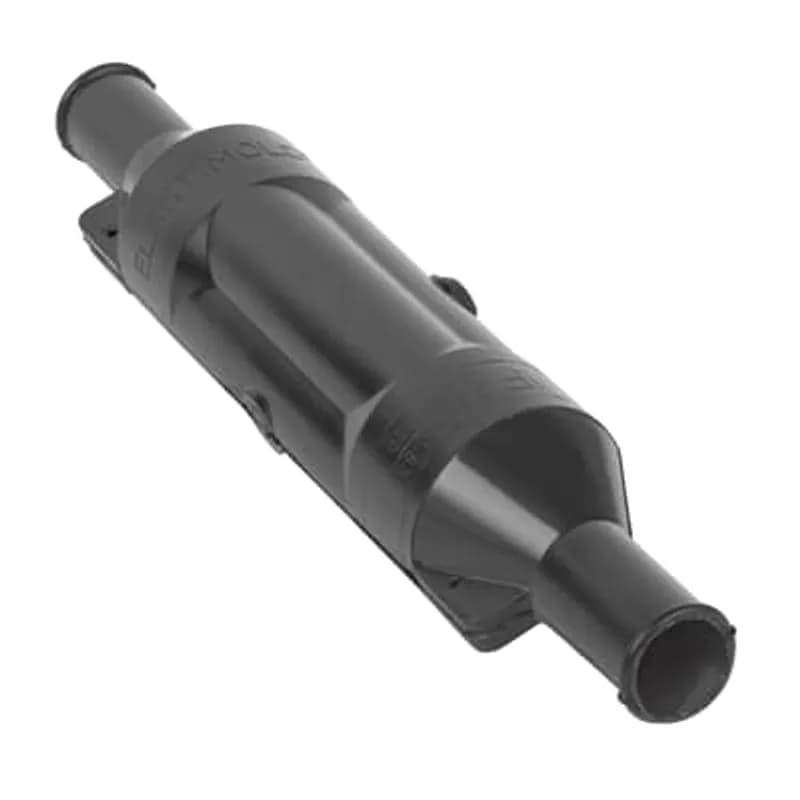

ABB Installation Products 15PCJ1F1220 15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter…
UPC: 783786632381
Contact for Pricing
Minimum Qty: 30
Multiplier: 30
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV class medium-voltage cable joint
- Single-piece housing for simplified installation
- Accommodates aluminum conductors #2 AWG stranded or #1 AWG solid
- Insulation diameter range: 0.640" to 0.820"
- Compatible with standard medium-voltage cable constructions
Specifications
Application | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
Color | Black |
Conductor Range | #2 STR AWG , #1 SOL AWG |
Connection | Compression |
Insulation | Yes |
Material | EPDM Rubber |
Material | Aluminum Conductor |
Number Of Conductors | 2 |
Series | 15PCJ1F |
Size | 14-3/8 inch long |
Size | 0.640 inch to 0.820 inch |
Special Features | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to ensure system matched performance and ratings equal to the cable to which the splice will be installed. Power Cable Joints are available in two styles. Style 1 uses a single-piece housing that is sized to accommodate a specific range of cable - ideally suited to straight splicing of the same or similar cable. Style 2 designs incorporate a universal housing with separate cable adapters to allow transition splices of different types and sizes of cable |
Standard | IEEE Standard 404 |
Type | Power Cable Joint |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.8700 L |
Package Weight (Metric) | 0.3950 kg |

15PCJ1F2220
15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.640 inch to 0.820 inch. Copper Conductor. Conductor Size AWG Stranded #2/Solid #1.
15PCJ1F1270
15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Conductor. Conductor Size AWG Stranded 4/0 /Solid 250.
15PCJ1-J2280
15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.980 inch to 1.180 inch. Copper Conductor. Conductor Size AWG Stranded 250.
69TCJS44
69 kv, Transmission Cable Joint, Housing Type - Shieldbreak, Housing Style 4, Housing Size 4
69TCJS44B54P45SLNNB
69kV, Transmission Cable Joint, Housing Type - Shieldbreak, Housing Style 4, Housing Size 4 - Bore Diameter 2.250 inch, Insulation Range 2.565-2.948 inch, Connector Type - Copper/No Connector Required, Conductor Code 54P - 1.648-1.746 inch Diameter, Heatsink Size 4 - 2.500 inch Outside Diameter, Heatsink Bore Diameter S - 1.750 inch, Type Shield L - Lead and Neutral Wire, Metallic Screen Continuity Kit Not Required, Armour Kit Not Required, Outer Jacket Restoration Kit B - Heat Shrink Standard package.
69TCJS1RA46PNNNNNN
69 kv, Transmission Cable Joint, Housing Type - Shieldbreak, Housing Style 1, Housing Size R Bore Diameter at Jacket/Insulation Transition 1.930. Connector Type - Aluminum/no connector required, Connector Code 46P - Conductor Diameter Range - 1.328-1.377 inch (33.73-34.98mm), Heatsink Size - N - not required, Heatsink Bore - N - not required. Type Shield - N - not required, Metallic Screen Continuity Kit - N - not required, Armor Kit - N - not required, Outer Jacket Restoration Kit - N - not required
69TCJS1R242PNLNNB
69 kv, Transmission Cable Joint, Housing Type - Shieldbreak, Housing Style 1, Housing Size R Bore Diameter at Jacket/Insulation Transition 1.930. Connector Type - Copper, Connector Code 42P - Conductor Diameter Range - 1.146-1.220 inch (29.11-30.99mm), Heatsink Bore - N - 1.500 inch Diameter. Type Shield - L - Lead and Neutral Wire, Metallic Screen Continuity Kit - N - not required, Armor Kit - N - not required, Outer Jacket Restoration Kit - B - Heat Shrink
69TCJS1R140PVBNNB
69 kv, Transmission Cable Joint, Housing Type - Shieldbreak, Housing Style 1, Housing Size R Bore Diameter at Jacket/Insulation Transition 1.930. Connector Type - Aluminum, Connector Code 40P - Conductor Diameter Range - 1.036-1.100 inch (26.31-27.94mm), Heatsink Bore - V - 2.046 inch Diameter. Type Shield - B - Copper Neutral Wire, Metallic Screen Continuity Kit - N - not required, Armor Kit - N - not required, Outer Jacket Restoration Kit - B - Heat ShrinkFrequently Asked Questions
What is the continuous current rating?
The continuous current rating of the PCJ power cable joint is equal to that of the cable rating.
What safety standards do PCJ joints meet?
The shield design meets IEEE 592 standard, and the connectors meet ANSI 119.4 Class A and Class 3 ratings.
What are the two styles of PCJ power cable joints?
Style 1 is for straight splicing of two similar cables. Style 2 includes separate cable adapters for transition splicing between two different cable sizes.
What conductor types and sizes are compatible?
The joints can be used with copper or aluminum conductors, supporting a wide range of sizes up to 1250 kcmil.
What voltage classes are available for PCJ joints?
Elastimold PCJ power cable joints are available in 15 kV, 25 kV, and 35 kV classes.
What is the short-time current rating?
The short-time current rating of the PCJ power cable joint is equal to that of the cable rating, up to 35 kA.
What are the conductor compatibility rules for connectors?
Kits with aluminum compression connectors can splice aluminum to aluminum or aluminum to copper. Kits with copper compression connectors are for copper-to-copper only and should not be used on aluminum conductors.
What are the two styles of PCJ power cable joints?
Style 1 is for straight splicing of two similar cables. Style 2 includes separate cable adapters for transition splicing between two different cable sizes.
What are the conductor compatibility rules for connectors?
Kits with aluminum compression connectors can splice aluminum to aluminum or aluminum to copper. Kits with copper compression connectors are for copper-to-copper only and should not be used on aluminum conductors.
What is the short-time current rating?
The short-time current rating of the PCJ power cable joint is equal to that of the cable rating, up to 35 kA.
How to Install a 15PCJ1F1220 Single Core Joint
This guide provides detailed instructions for the installation of a 15PCJ1F1220 Single Core Joint, designed for permanent, fully screened, submersible connections of extruded solid dielectric cables. Ensure all apparatus is de-energized before starting.
Estimated time: 2h
Tools needed:
Wire strippers, Measuring tape or ruler, Beveling tool, Crimping tool, Wire brush, Cleaning solvent, Clean cloth, Soldering iron (or constant force spring tool), Sandpaper, Heat gun
Supplies needed:
Joint Housing, PVC tape, Conductor splice, Lubricant, Flat copper braid, Constant force springs (optional, if not soldering), Mastic tape, Heat shrink tube
- Prepare Cables for Jointing
Train the cables into their final position and square cut them, leaving approximately 5mm between cables. Store the heat shrink tube on either cable. Remove the jackets of both cables to the specified dimensions. Carefully remove the cable metallic tape screen for the required distance and secure the ends with PVC tape, ensuring no overlap onto the non-metallic screen.
- Remove Non-Metallic Screen and Prepare Insulation
Carefully remove the cable non-metallic screen from both cables to the specified point. Bevel the edge of Cable 1. Cut the insulation to the conductor to dimension 'E' from the end of both cables, but do not remove the insulation. Install a PVC tape marker on Cable 2 to dimension 'B' to locate the splice later. WARNING: Do not nick, cut, or damage the insulation surface or conductor strands.
- Temporarily Store Joint Housing
Beginning at the jacket and proceeding 10mm beyond the end of the metallic screen, apply one layer (half-lapped) of PVC tape over the metallic screen. Install a different color PVC tape marker on Cable 1 to dimension 'B' to locate the splice later. Lubricate both cable entrances of the splice housing. Clean and lubricate the insulation, cable non-metallic screen, and PVC-taped portion of the cable metallic tape screen on Cable 1. Store the housing onto Cable 1 up to the jacket. WARNING: Cover the forward edge and any other sharp edges of the metallic screen with PVC tape to prevent damage to the joint housing. Do not store the splice housing on the exposed metallic tape shield.
- Remove Cable Insulation
Remove the cable insulation from both cables to dimension 'E'. WARNING: Do not cut or nick the cable insulation or conductor.
- Install Conductor Splice
Wire brush the exposed conductors of both cables. Immediately insert both conductors fully into the conductor splice. Check the distance between insulations against the 'Before' crimping dimension; if it exceeds, do not proceed and review instructions. Crimp the conductor splice according to the provided crimp chart. Remove any sharp protrusions or burrs and clean metal chips or filings from the splice joint assembly area. Wipe off all excess inhibitor. Check the distance between cable insulations against the 'After' crimping dimension; if it exceeds, do not proceed and review instructions.
- Clean and Lubricate Core
Clean the conductor, connector, and Cable 2 insulation surfaces with cleaning solvent and a clean cloth, always wiping towards the screen end. Lubricate cable insulation surfaces using the supplied lubricant, always wiping toward the screen end to provide a build-up or ramp of lubricant at the edge of the non-metallic screen. WARNING: Remove all contaminants from the surface of the insulation.
- Position Joint Housing
Slide the joint housing over the crimp connector into its final position. Measure the distance between the joint housing and the PVC tape marker; the distance 'X' should be equal on each side of the joint housing. Remove the PVC tape applied in Step C to expose 25mm of copper tape.
- Restore Screen
Wrap flat copper braid around each joint housing, continuing the ends over the metallic tape screen for 20mm on each side. Attach each end of the copper braid to the metallic tape screen by soldering or by using a constant force spring.
- Restore Outer Jacket
Lightly sand the outer surface of the jacket of both cables for a distance of 130mm. Heat both sanded areas for approximately 15 seconds. WARNING: Do not burn cables. Wrap two layers of mastic tape at the edge of the jacket on both cables. Position the heat shrink from Cable 1 over the center of the assembly and shrink it, starting at the center and working toward the ends.
