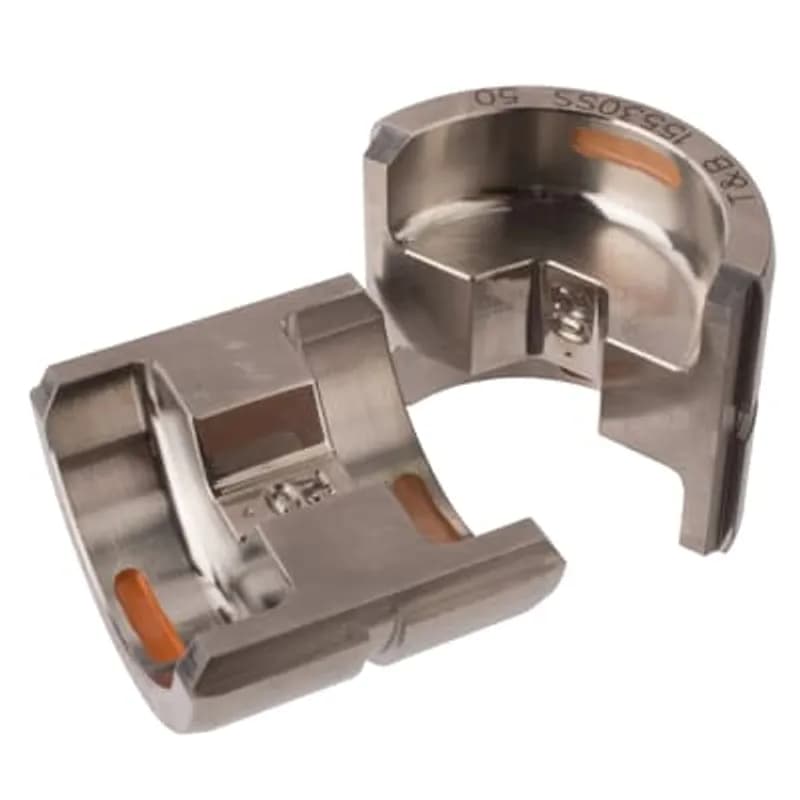

ABB - Installation Products 15530SS - Die for 12-14 Ton Tools for 3/0 CU, 1/0 Al, Die Color Orange/Tan, Die Code 50
More images
ABB - Installation Products

15530SS

UPC: 786209883681

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB 15530SS is a specialized die designed for use with 12-14 ton crimping tools, facilitating precise and reliable connections for electrical conductors. This die is specifically engineered for terminating 3/0 AWG copper (CU) and 1/0 AWG aluminum (Al) wires. Its color-coding system, featuring an orange and tan die, corresponds to Die Code 50, ensuring proper tool and die matching for optimal performance and safety. This precise compatibility is crucial for maintaining the integrity of electrical connections, preventing potential failures, and ensuring the longevity of electrical systems. The 15530SS die is a critical component in electrical installations where robust and secure conductor termination is paramount. By utilizing the correct die for the specified conductor size and tool tonnage, users can achieve consistent crimp quality, which is essential for minimizing resistance and heat buildup at connection points. This reduces the risk of premature component failure and enhances overall system reliability. The ABB 15530SS die, with its distinct orange/tan color and Die Code 50 designation, offers a clear and efficient method for electricians and technicians to select the appropriate tooling for their specific wire termination needs, contributing to safer and more dependable electrical infrastructure.
  • Designed for 12-14 ton crimping tools
  • Compatible with 3/0 AWG Copper (CU) conductors
  • Compatible with 1/0 AWG Aluminum (Al) conductors
  • Orange/Tan die color for easy identification
  • Corresponds to Die Code 50 for precise tool matching

Specifications

Application
Crimping Lugs/C-Taps
Color
Orange/Tan
Material
Alloy Steel
Special Features
Color-coded for easy matching
Type
Die
Package Dimensions (L x W x H)
1.9 IN x 1.9 IN x 1.6 IN
Package Dimensions (L x W x H)
4.826 cm x 4.826 cm x 4.064 cm
Package Weight (Imperial)
0.5000 L
Package Weight (Metric)
0.2270 kg
