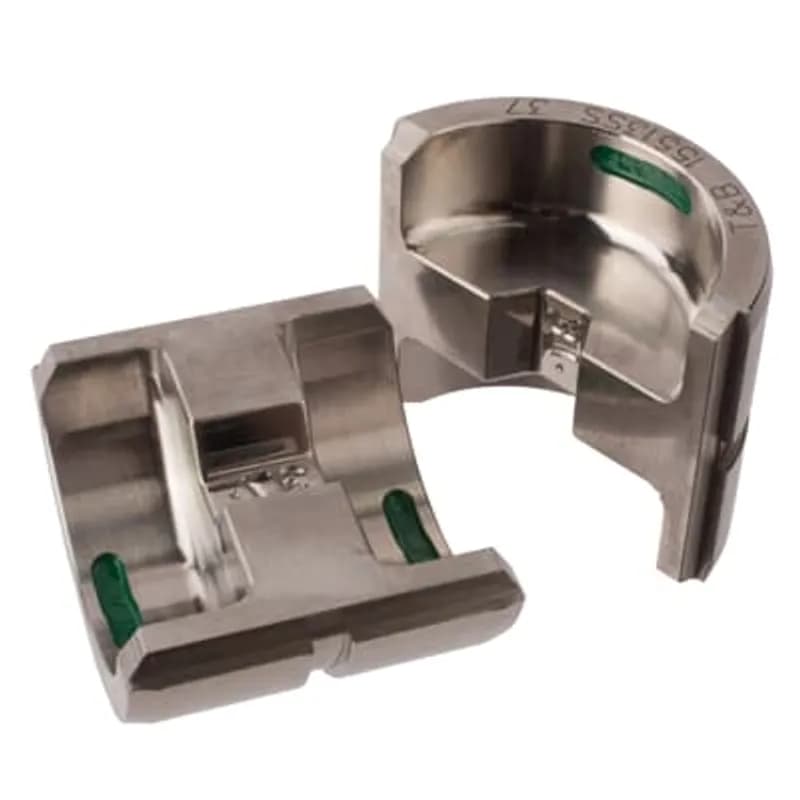

ABB - Installation Products 15513SS - Die for 12-14 Ton Tools for #1 CU, #4 Al, Die Color Green, Die Code 37
ABB - Installation Products

15513SS

UPC: 786209883612

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB 15513SS is a specialized die designed for use with 12-14 ton crimping tools. This die is engineered for efficient and reliable termination of electrical conductors. Specifically, it is calibrated for crimping #1 AWG copper (CU) conductors and #4 AWG aluminum (Al) conductors. The die features a distinct green color, serving as a visual indicator for its intended application and compatibility with specific tool sets. This color-coding system is crucial for ensuring the correct die is selected for the conductor size and material, preventing improper crimps and potential failures. The ABB 15513SS die code is 37, further aiding in tool and die identification and management within an industrial setting. Manufactured by ABB - Installation Products, this die is a component within their extensive range of electrical installation solutions. Its precise sizing and construction ensure consistent and secure connections, vital for the integrity of electrical systems. Proper conductor termination is paramount for safety, performance, and longevity of electrical infrastructure, and this die contributes directly to achieving those objectives. The 12-14 ton tool capacity indicates the force required for optimal crimping, ensuring the conductor is properly compressed for maximum conductivity and mechanical strength.
  • Designed for 12-14 ton crimping tools.
  • Specifically for #1 AWG Copper (CU) conductors.
  • Specifically for #4 AWG Aluminum (Al) conductors.
  • Green color for easy identification and application matching.
  • Die Code 37 for precise tool and die compatibility.

Specifications

Application
Crimping Lugs/C-Taps
Color
Green
Material
Alloy Steel
Special Features
Color-coded for easy matching
Type
Die
Package Dimensions (L x W x H)
1.9 IN x 1.9 IN x 1.6 IN
Package Dimensions (L x W x H)
4.826 cm x 4.826 cm x 4.064 cm
Package Weight (Imperial)
0.4800 L
Package Weight (Metric)
0.2180 kg
