ABB - Installation Products 15511SS - Die for 12-14 Ton Tools for 4/0 CU, 2/0 Al, Die Color Purple/Olive, Die Code 54
More images
ABB - Installation Products

15511SS

UPC: 786209883704

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

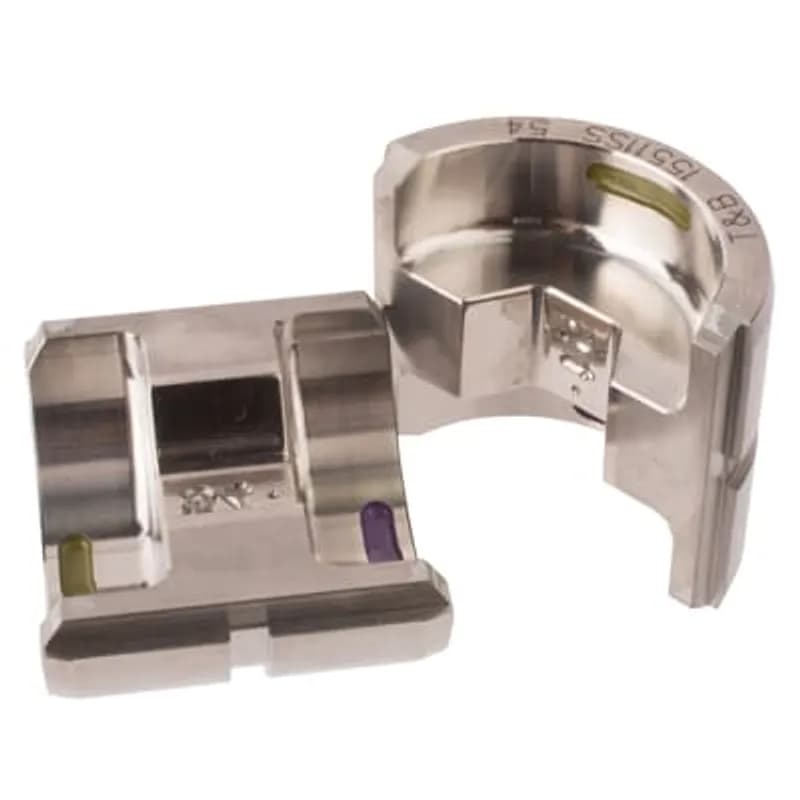

The ABB 15511SS die is a specialized component designed for use with 12-14 ton crimping tools. This die is engineered to precisely terminate 4/0 AWG copper (CU) conductors and 2/0 AWG aluminum (AL) conductors. Its specific application is in electrical installations where reliable and secure connections are paramount. The die is color-coded purple and olive, which corresponds to its designated die code of 54. This color coding system is a standard practice in the industry to quickly identify the correct die for specific wire gauges and conductor types, ensuring proper tool setup and preventing incorrect crimps. The SKU for this product is 15511SS, manufactured by ABB - Installation Products. Proper selection and use of this die are critical for maintaining the integrity and safety of electrical systems, particularly in industrial settings where conductor size and material are key considerations for load capacity and conductivity. The UNSPSC code associated with this product is 27112820, categorizing it under electrical connectors and accessories. Users should confirm compatibility with their specific 12-14 ton crimping tool model to ensure optimal performance and longevity of both the die and the tool. This die facilitates efficient and accurate termination, contributing to the overall reliability of electrical infrastructure.
  • Designed for 12-14 ton crimping tools
  • Compatible with 4/0 AWG Copper (CU) conductors
  • Compatible with 2/0 AWG Aluminum (AL) conductors
  • Color-coded Purple/Olive for easy identification
  • Die Code 54 for specific application

Specifications

Application
Crimping Lugs/C-Taps
Color
Olive/Purple
Material
Alloy Steel
Special Features
Color-coded for easy matching
Type
Die
Package Dimensions (L x W x H)
2 IN x 2 IN x 1.6 IN
Package Dimensions (L x W x H)
5.08 cm x 5.08 cm x 4.064 cm
Package Weight (Imperial)
0.4900 L
Package Weight (Metric)
0.2220 kg
