ABB - Installation Products 15534SS - Die for 12-14 Ton Tools, 300 kcmil Copper, 4/0 Aluminum, Die Color White, Die Code 66H
More images
ABB - Installation Products

15534SS

UPC: 786209883759

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

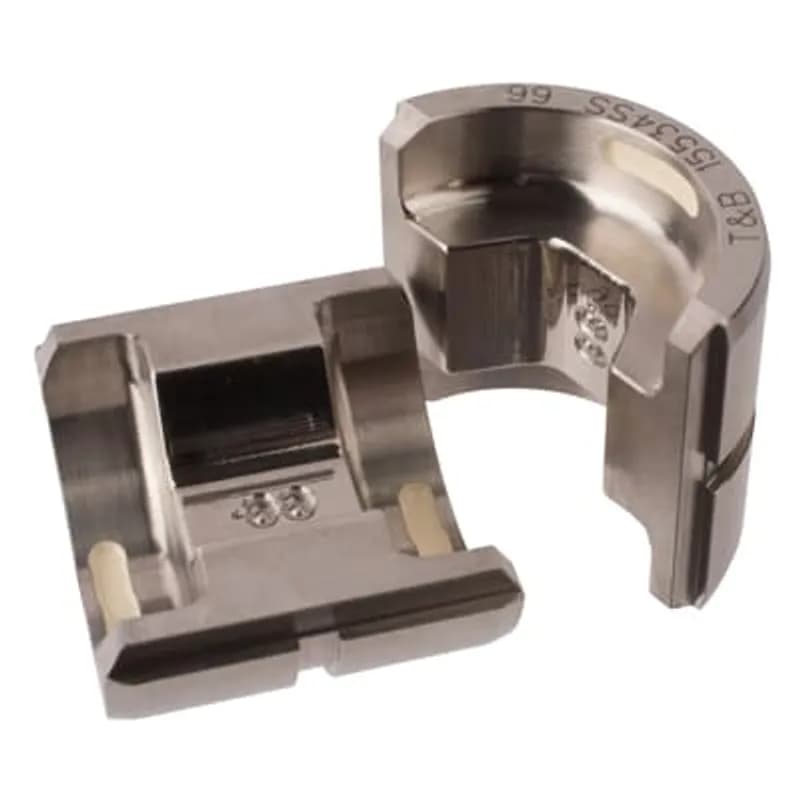

The ABB 15534SS is a specialized die engineered for use with 12-14 ton crimping tools. This die is designed for precise and reliable termination of electrical conductors. It is specifically rated for 300 kcmil copper (Cu) conductors and 4/0 AWG aluminum (Al) conductors. The die features a distinct white color code, corresponding to the '66H' die code, which is crucial for ensuring the correct die is selected for specific conductor sizes and tool types, thereby preventing improper crimps and potential failures. Proper die selection is paramount in electrical installations to achieve secure and lasting connections. Using the correct die ensures the conductor is compressed to the optimal size and shape, creating a low-resistance electrical path and mechanical integrity that meets industry standards. The 15534SS die, manufactured by ABB Installation Products, is built to deliver consistent performance for these critical applications. Its compatibility with 12-14 ton tools means it integrates directly into existing toolkits, offering a straightforward upgrade or replacement for existing die sets. This product is essential for electricians, utility workers, and maintenance professionals who require accurate and efficient conductor termination for power distribution, industrial wiring, and other demanding electrical projects.
  • Designed for 12-14 ton crimping tools
  • Suitable for 300 kcmil Copper (Cu) conductors
  • Compatible with 4/0 AWG Aluminum (Al) conductors
  • Features white die color for easy identification
  • Corresponds to die code 66H for precise application

Specifications

Application
Crimping Lugs/C-Taps
Color
White
Material
Alloy Steel
Size
300 kcmil Copper, 4/0 Aluminum
Special Features
Color-coded for easy matching
Type
Die
Package Dimensions (L x W x H)
1.9 IN x 1.9 IN x 1.6 IN
Package Dimensions (L x W x H)
4.826 cm x 4.826 cm x 4.064 cm
Package Weight (Imperial)
0.5000 L
Package Weight (Metric)
0.2270 kg
12 or 14 Ton Hex Flex Die for Crimping Flex Conductors , 66X Die Code, White Die Color. High Grade Tool Steel. To use with 15 Ton Tool please buy adaptor 15500-TB.

15534X

12 or 14 Ton Hex Flex Die for Crimping Flex Conductors , 66X Die Code, White Die Color. High Grade Tool Steel. To use with 15 Ton Tool please buy adaptor 15500-TB.
U-Type Compression Die - White 300 MCM Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.

CD15

U-Type Compression Die - White 300 MCM Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
Die for CA-800 Applicator

CD-800-10

Die for CA-800 Applicator
Die for 12-14 Ton Tools for #1 CU, #4 Al, Die Color Green, Die Code 37

15513SS

Die for 12-14 Ton Tools for #1 CU, #4 Al, Die Color Green, Die Code 37
Die for 12-14 Ton Tools for 2/0 CU, #1 Al, Die Color Black/Gold, Die Code 45

15526SS

Die for 12-14 Ton Tools for 2/0 CU, #1 Al, Die Color Black/Gold, Die Code 45
Die for 12-14 Ton Tools for 350 kcmil CU, 250 kcmil Al, Die Color Red, Die Code 71H

15514SS

Die for 12-14 Ton Tools for 350 kcmil CU, 250 kcmil Al, Die Color Red, Die Code 71H
Die for 12-14 Ton Tools for 400 kcmil CU, 300 kcmil Al, Die Color Blue, Die Code 76H

15512SS

Die for 12-14 Ton Tools for 400 kcmil CU, 300 kcmil Al, Die Color Blue, Die Code 76H
Die for 12-14 Ton Tools for 500 kcmil CU, Die Color None, Die Code 80H

15517SS

Die for 12-14 Ton Tools for 500 kcmil CU, Die Color None, Die Code 80H
