RTXD Extractor Tool

GMD-16M DC240V 3W 1b EXP (GMD16M-30-01-UD-3W-S-E)

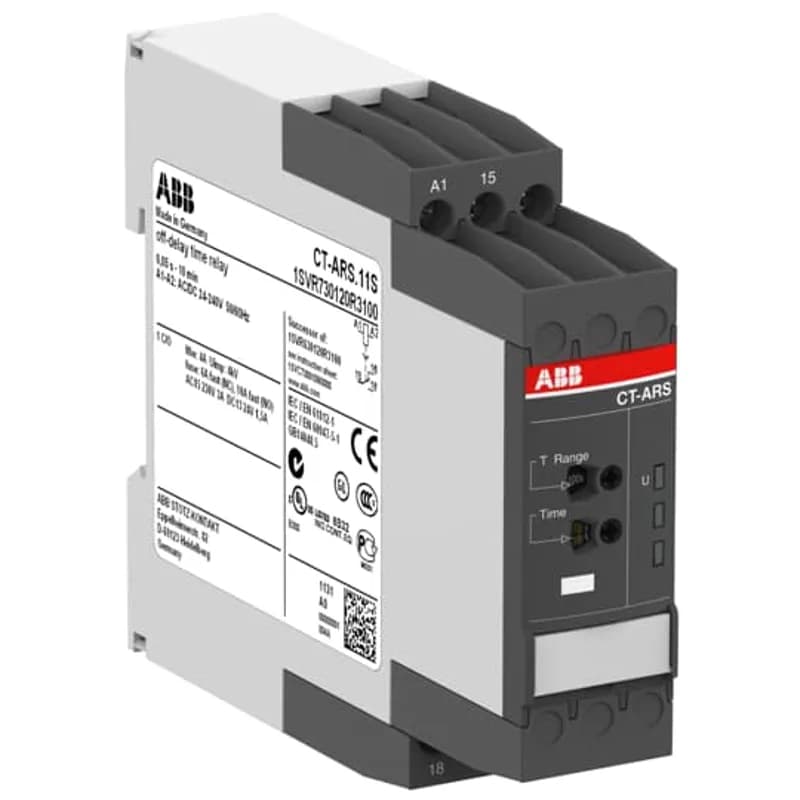

The CT-ARS.11S is a single-function electronic time relay from the CT-S timer range. It provides an OFF-delay (true delay on break) function without auxiliary voltage and with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 1 c/o (SPDT) output rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

GMR-4MD DC125V 3W 2a2b EXP (GMR4M-22-22-ID-3W-S-E)

CM-MPS.21S THREE-PHASE MON.

The TRU Series is a multifunction, knob adjustable, Universal Time Delay Relay. It includes six of the most popular timing functions selected by a slide switch. The time delay is knob adjustable and the time delay range is switch selectable. The repeat accuracy is + 0.1%. Both function and time range can be selected on the top face of the unit. In addition to multifunctioning and multiple time ranges, the TRU Series features universal input voltage; 19 to 264VAC and 19 to 30VDC and full 10A output relay. The TRU Series can directly replace up to 1000 competitive time delay relay models. Operation: A six position slide switch selects delay-on-make, interval, single shot, recycling (ON time first, equal recycle delays), delay-on-break, and retriggerable single shot. 8-pin DPDT base wiring is limited to delay-on-make, interval, and recyclingfunctions. All six functions are available in the 8-pin SPDT and 11-pin DPDT versions.

The TMV and TSU Series are universal voltage delay-on-make timers. Two models cover all the popular voltages and time delays. Available with knob or external adjust time delay. Its simple two terminals can easily be connected in series with a relay coil, contactor coil, solenoid, lamps, small motor, etc., to delay their energization, prevent short cycling or to sequence on various loads. Operation (Delay-on-Make): Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.

RXMB 1 DC 110-125V, 6 Make Contacts

RTXP 18

1P-SSR-PROPORTIONAL CONTROL 600V 90A 1200VP-E-CLP H-I2T COMM

MR-4 AC24V 50/60Hz 2a2b (Metasol) EXP (MR4-22-B7-E)

General Electric Control Products. Nema Power Devices. Ol Relay 610F8364
