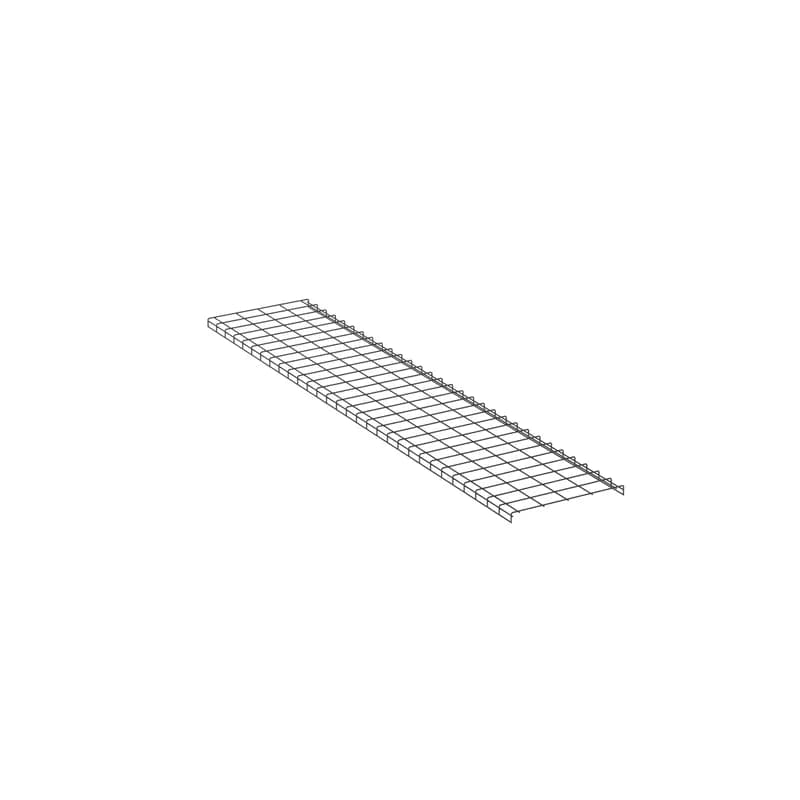

The Wyr-Grid Pathway protects cables between the main distribution area and the equipment distribution area. The optional side walls snap-on without extra hardware or tools. It measures 2.09 inches H x 10 feet L x 24 inches W (53.1mm x 3m x 609.6mm). The Wyr-Grid Pathway can be used with the splice connector or the intersection splice connector.

Manual cutting tool for cutting Wyr-Grid Cable Trays. Weight: 5.4 lbs. (2.45 kg)

White on black, vinyl continuous tape.

The Wyr-Grid Intersection Bend Radius Control is a snap-on installation used in cable routing systems. It provides a 6 inch (152.4mm) bend radius, protects cables, and can be installed without cutting at tees, crosses, and right-angle intersections. It is 6 inches H x 8.2 L x 8.2 W (152.4mm x 208.3mm x 208.3mm).

Copper Compression HTAP with code #6 - #14 AWG Run, code #6 - #14 AWG Tap 1 or flex #6 - #14 AWG Run and flex #6 - #14 AWG Tap1.

The Wyr-Grid Cantilever Bracket is black powder coated and is used to support the 24" (609.6 mm) Wyr-Grid Pathway along a wall. It is 6.9" (175.3 mm) high, 26.7" (678.2 mm) long, 2.2" (56.4 mm) wide, and 26.7" (678.2 mm) deep and has an integral retaining clip that secures the pathway to the bracket. Mounting hardware for attaching the cantilever bracket to a wall is not included. The cantilever bracket comes in standard packages of one.

High Temperature Ring Terminal, 6 AWG, 1/4" stud size, non-insulated.

The Wyr-Grid Intersection Splice Connector is used in cable routing systems to quickly join Wyr-Grid Pathways at intersections. It measures 3.01 inches H x 3.32 inches L x 1.35 inches W (76.4mm x 81.3mm x 34.2mm). Three pieces are needed to create a tee or right-angle intersection.

The FS2X3WH6 Panduct Lead-Free PVC Solid Wall Wiring Duct design fully encloses cables providing maximum protection and aesthetics. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). Lead-free PVC. 2" x 3" (50.8 mm x 76.2 mm) and 6' (1.83 m) long. Cover sold separately. Color White.

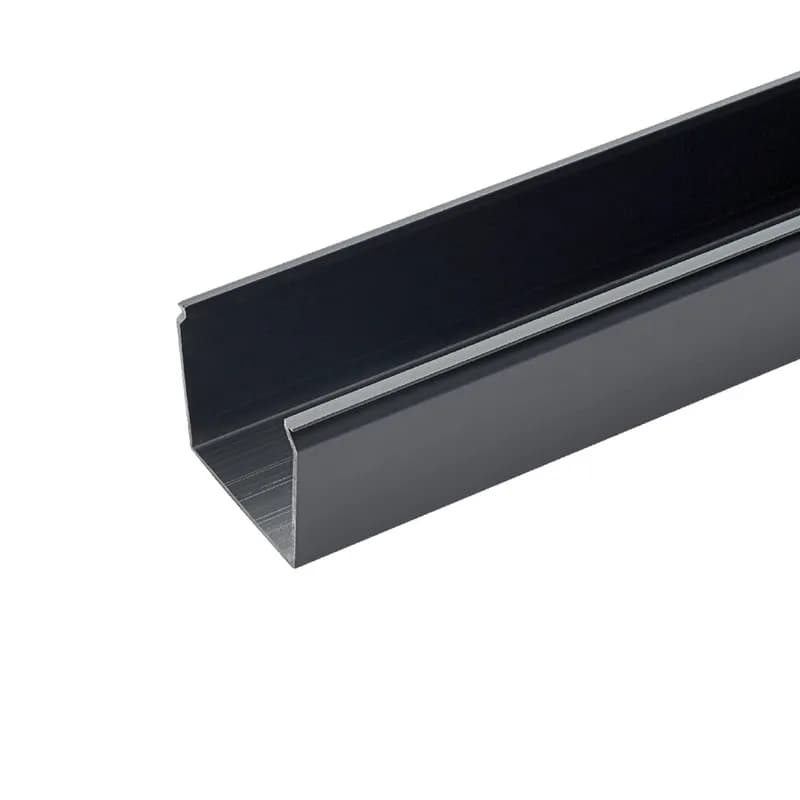

The FS4X4BL6 Panduct Lead-Free PVC Solid Wall Wiring Duct design fully encloses cables providing maximum protection and aesthetics. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). Lead-free PVC. 4" x 4" (101.6 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color Black.

The TX6A Cat 6A U/UTP Riser copper cable is constructed of 26 AWG copper conductors with HDPE insulation. The copper conductors shall be twisted in pairs, separated by a cross divider and covered by a flame retardant PVC (CMR), White jacket. Packaged 1000ft/305m on a reel

Ferrule, Non-Covered, 4/0-250 AWG wire range, 1.57 (40.0mm) length.
