Panduit P6-14RHT6-E - High Temperature Ring Terminal, 6 AWG, 1/4" stud size, non-insulated.
Panduit

P6-14RHT6-E

UPC: 074983131259

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 100

Multiplier: 20

*Contact for lower quantities*

Overview

The Panduit P6-14RHT6-E is a non-insulated high-temperature ring terminal designed for robust electrical connections in demanding industrial settings. This terminal is specifically engineered for 6 AWG wire gauge and features a 1/4" stud size, ensuring a secure and reliable interface with electrical components. Its construction is optimized for high-temperature operation, making it suitable for applications where elevated thermal conditions are present, such as in industrial machinery, HVAC systems, and electrical distribution panels. The non-insulated design facilitates direct contact and efficient current transfer. Manufactured by Panduit, a recognized leader in electrical infrastructure, the P6-14RHT6-E terminal adheres to stringent industry standards, providing dependable performance and safety in critical power applications. Its precision manufacturing ensures a tight fit, minimizing the risk of connection failures and enhancing overall system reliability. This component is essential for maintaining stable and efficient electrical pathways in challenging industrial environments.
  • High-temperature rated for demanding industrial environments
  • Designed for 6 AWG wire gauge
  • Features a 1/4" stud size for secure connections
  • Non-insulated design for direct electrical contact
  • Manufactured by Panduit for reliable performance

Specifications

Connection
Standard
Connection Type
Ring Terminal
Enclosure
Ring shape
Finish
Nickel Plated
Finish
Nickel-plated
Insulation
None
Material
Copper
Mounting
7/16 In.
Mounting Type
Screw Mounting
Series
P6-14RHT6
Size
1/4"
Size
6 AWG, 1/4" stud size
Standard
cULus Listed 587H E52164
Temperature Rating
650 Degrees Fahrenheit (343 Degrees Celsius)
Type
Ring Terminal
Voltage Rating
2000 V
Wire Size
6 AWG
Package Dimensions (L x W x H)
9.35 IN x 3.8 IN x 3.6 IN
Package Weight (Imperial)
1.9 lbs

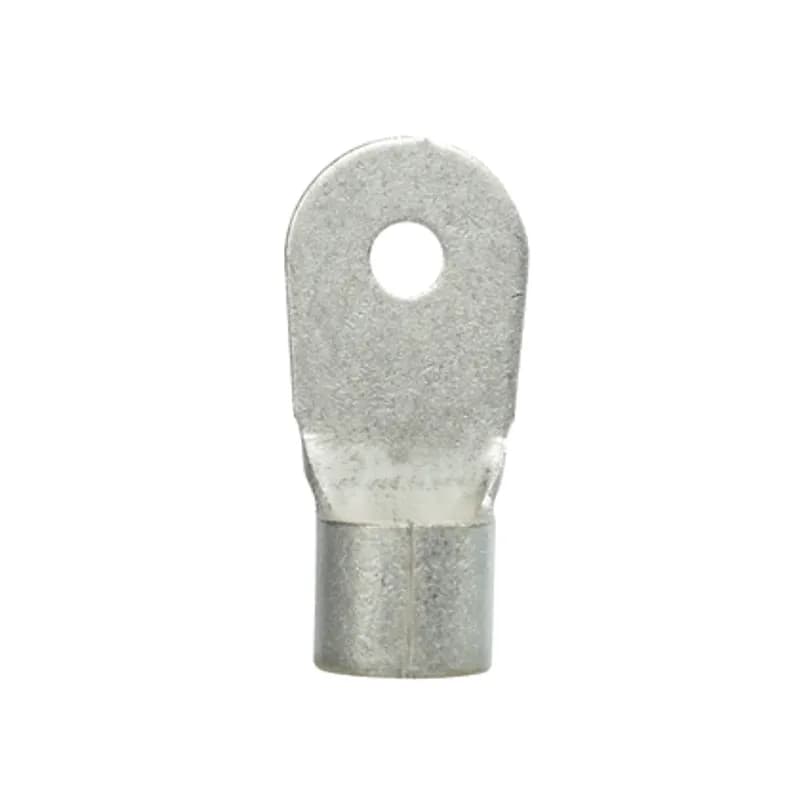

High Temperature Ring Terminal, 6 AWG, #10 stud size, non-insulated, standard package.

P6-10RHT6-E

High Temperature Ring Terminal, 6 AWG, #10 stud size, non-insulated, standard package.
High Temperature Ring Terminal, 6 AWG, 5/16" stud size, non-insulated.

P6-56RHT6-E

High Temperature Ring Terminal, 6 AWG, 5/16" stud size, non-insulated.

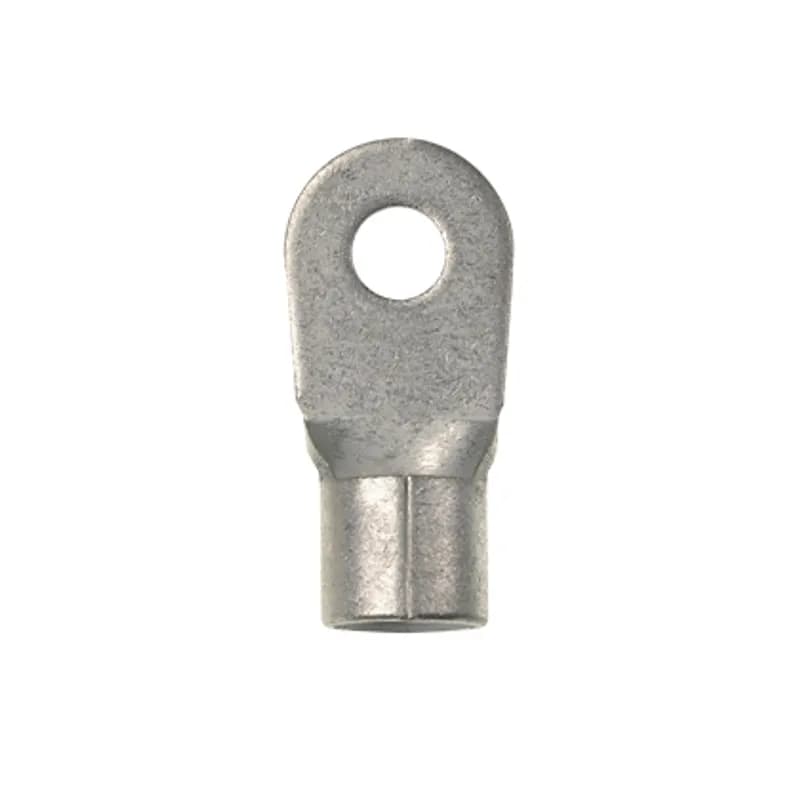

Ring terminal, large wire, 6 AWG, #8 stud size, non-insulated, standard package.
