Overview
- Metal splice connector for Wyr-Grid pathways
- Dimensions: 3.01" H x 3.32" L x 1.35" W (76.4mm x 81.3mm x 34.2mm)
- Three units required per tee or right-angle intersection
- Made in USA, part of Panduit Wyr-Grid system
- Enables quick assembly for new or modified cable routes
Specifications
Application | Quickly Joins Wyr-Grid Pathways at all Intersections |
Color* | Black |
Length | 3.2 in |
Length | 81.28 mm |
Standard | RoHS Compliant |
Type | Splice Connector |
Package Dimensions (L x W x H) | 9.55 IN x 4.85 IN x 1.75 IN |
Package Weight (Imperial) | 0.685 lbs |
FR6CS12M
The FiberRunner Center Support Bracket is used to support the 6x4 and 4x4 systems from below with a new threaded rod. The center support bracket is used for a 12mm threaded rod. The bracket is secured to the threaded rod with two nuts. It can also be secured directly to the top of the cabinet. The pre-assembled slide clamps enable fast assembly to the channel.
WGHRDWKTBL
The Wyr-Grid Hardware Kit is used to quickly and easily bend the straight Wyr-Grid Pathway into a wide-radius 90-degree angle. The 12in (305mm) pathway requires 6 kits, the 18in (457mm) pathway requires 9 kits, the 24in (610mm) pathway requires 12 kits, and the 30in (762mm) pathway requires 15 kits. Black powder coated, 1pc.
FZBA1.5X4

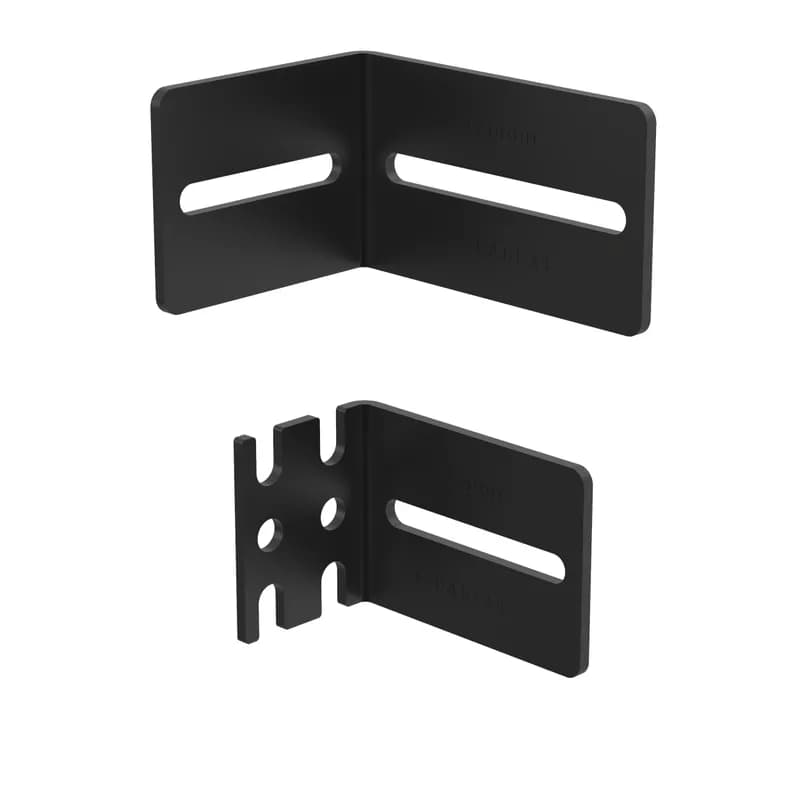

The FiberRunner Adjustable Z Bracket is used in a cable routing system to offset a FiberRunner System from the mounting surface. The adjustable Z bracket adjusts from 1.5 inches (38mm) to 4 inches (101mm). It is typically used on an equipment rack. The adjustable Z bracket protects the cable and strengthens the cable routing system.
WGESPL2430BL

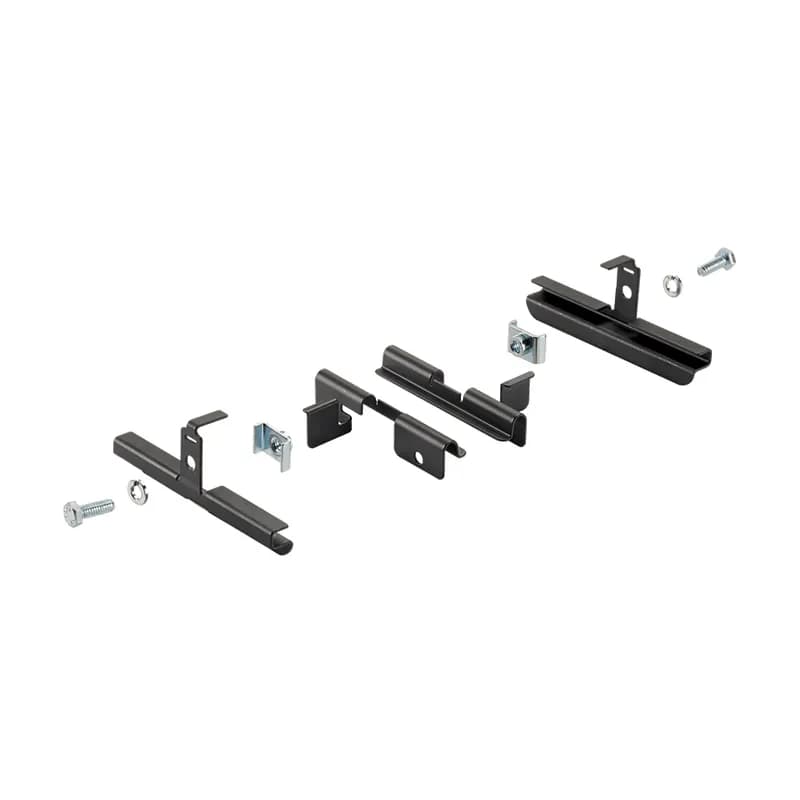

Straight splice connector with clips in black joins two 24"(610 mm) or 30" (762 mm) wide Wyr-Grid Pathways together. A bonded connection is possible with the black powder coated splice. In order to make the connection, the powder coat must be properly removed from the pathway surfaces that contact the zinc-plated clip on the back side of the splice. The package contains four components needed to join two pathway sections. Each package contains one straight splice connector.
WGESPLBL
Straight splice connector with clips joins two 8" (204 mm), 12" (305 mm), or 18" (457 mm) wide Wyr-Grid Pathways together. A bonded connection is possible with the black powder coated splice. In order to make the connection, the powder coat must be properly removed from the pathway surfaces that contact the zinc-plated clip on the back side of the splice. The package contains two components needed to join two pathway sections. Each package contains one straight splice connector.
WGSPL2430BL
The Wyr-Grid Pathway Splice Connector is used in cable routing systems and quickly connects two 24 inch (610mm) or 30 inch (762mm) Wyr-Grid Pathways. The splice connector helps ensure electrical continuity between the pathways. The pathway splice connector is 1.57 inches H x 4.67 inches L x 1.12 inches W (39.8mm x 118.5mm x 28.5mm).
WGSPL1218BL
The Wyr-Grid Pathway Splice Connector is used in cable routing systems and quickly connects two 12 inch (304.8mm) or 18 inch (457.2mm) Wyr-Grid Pathways. The splice connector helps ensure electrical continuity between the pathways. The pathway splice connector is 1.57 inches H x 4.67 inches L x 1.12 inches W (39.8mm x 118.5mm x 28.5mm).
PWBCB4BL
The Panduit Cantilever Bracket is used in cable routing system which supports the 4 inch basket. The mounting hardware for attaching the cantilever bracket is sold separately.
WGSW4BL

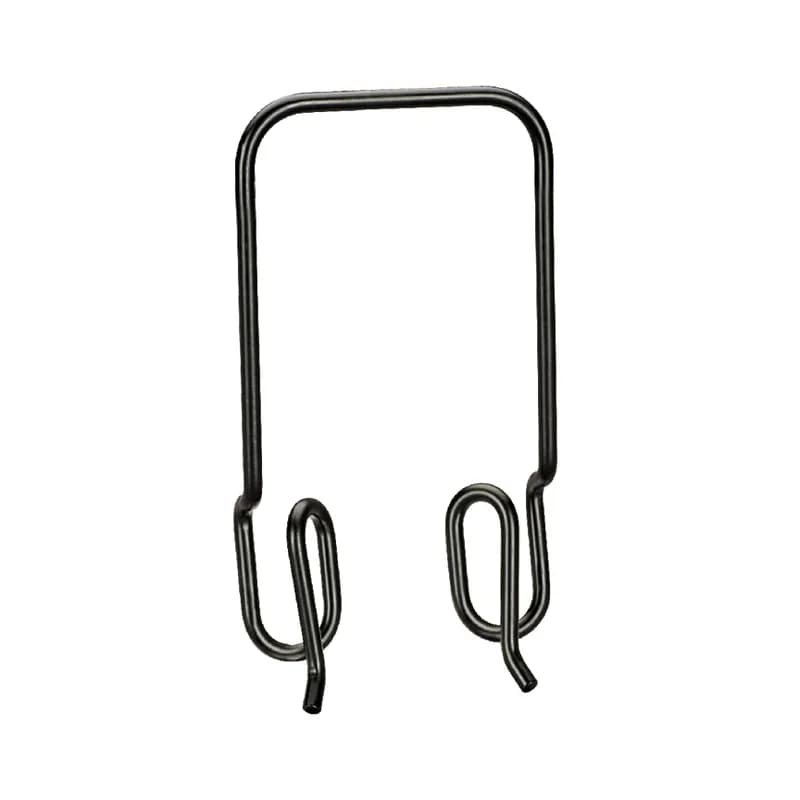

The Wyr-Grid Snap-On Sidewall Bracket is used in cable routing systems to retain cables and can be attached anywhere along the pathway. The 4 inch snap-on sidewall bracket is 6.9 inches H x 1.2 inches L x 3.71 inches W (175.3mm x 30.5mm x 94.2mm).
WGSW6BL
The Wyr-Grid Snap-On Sidewall Bracket is used in cable routing systems to retain cables and can be attached anywhere along the pathway. The 6 inch snap-on sidewall bracket is 8.9 inches H x 1.2 inches L x 3.71 inches W (226.1mm x 30.5mm x 94.2mm).
WGSW2BL

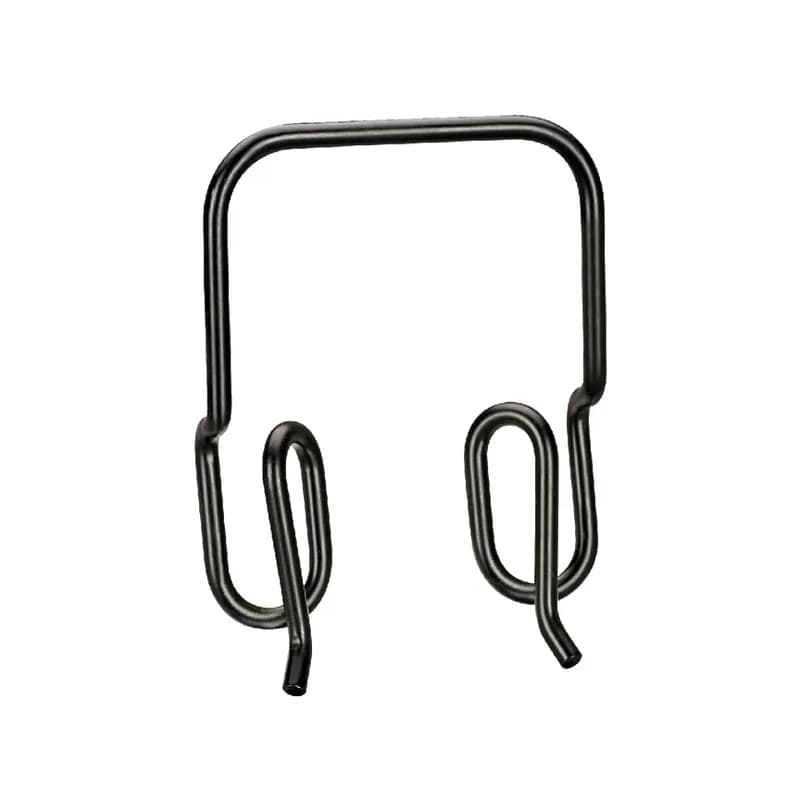

The Wyr-Grid black powder coated, snap-on sidewall is 2.0" (50 mm) high and can be attached anywhere along the pathway to retain cables. It comes in standard packages of one.
FRSPJC24BL
Used to fully enclose 4x4 channel in conjunction with the Spill-Over Junction FRSPJ2X2BL. Cover snaps onto the channel base. Hinged feature allows easy access to add or remove cables.How to Install the Wyr-Grid Intersection Splice
This guide provides step-by-step instructions for installing the Wyr-Grid Intersection Splice on a pathway system.
Estimated time: 30m
Tools needed:
9/16" socket, Screwdriver
Supplies needed:
Intersection Splice, Bonding screws
- Prepare the splice location
Identify the main trunk of the pathway where the Intersection Splice will be installed. Ensure the area is clear and accessible.
- Place the Intersection Splice
Slide the Intersection Splice to the approximate width of the intersecting pathway. Ensure it is positioned correctly on the main trunk.
- Engage the bonding screw
Using a 9/16" socket, tighten the bonding screw until seated with no gaps. Ensure the spring tabs are engaged to prevent the pathway from lifting out.
