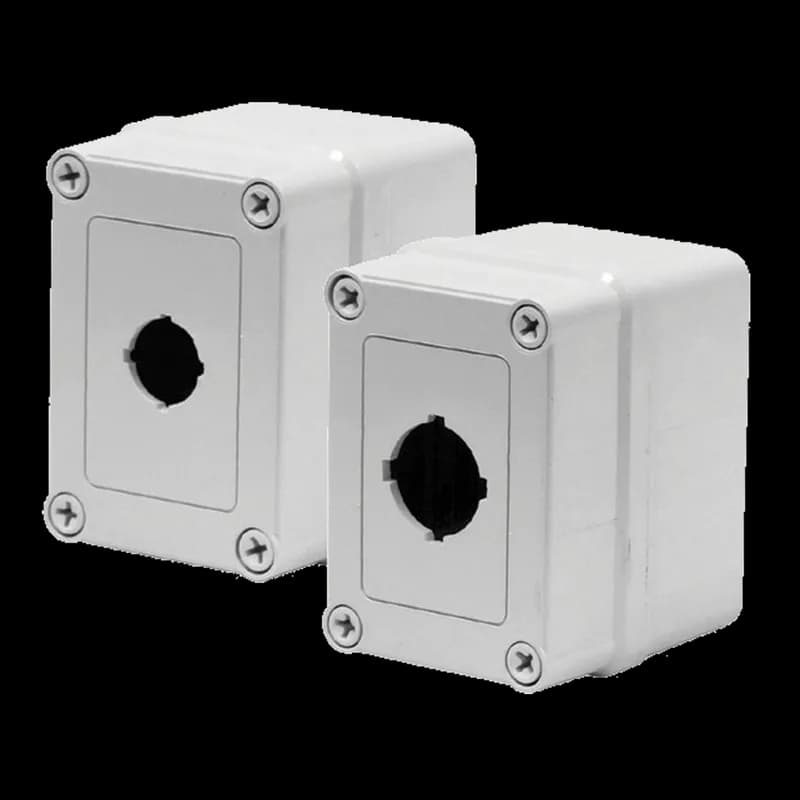

nVent VM755-PBM6 - VM Pushbutton Flat Opaque Screw Cover Type 4X, 7.00x5.03x5.03, Lt Gray, Polyester, PBM
nVent

VM755-PBM6

UPC: 635394550895

Documents & Media
Installation Instructions

Contact for Pricing

Overview

The nVent VM Series Pushbutton Enclosure, model VM755-PBM6, is engineered for robust protection of electrical components in demanding industrial environments. This Type 4X rated enclosure, constructed from durable light gray polyester, offers superior resistance to corrosion, moisture, and dust, making it an ideal solution for junction boxes, terminal wiring boxes, instrument housings, electrical control boxes, and pushbutton housings. Its substantial dimensions of 7.00x5.03x5.03 inches provide ample space for various electrical configurations. Designed with a flat opaque screw cover, this enclosure ensures secure and reliable access while maintaining a clean aesthetic. The polyester material is known for its excellent dielectric properties and resistance to a wide range of chemicals, ensuring the longevity and integrity of the enclosed components. This makes the VM755-PBM6 particularly well-suited for applications in chemical processing plants, water and wastewater treatment facilities, food and beverage production, and other sectors where harsh conditions are prevalent. The nVent VM Series is a trusted choice for professionals seeking dependable protection for their electrical installations. The 'PBM' designation signifies its suitability for pushbutton applications, offering a secure and environmentally sealed housing for control devices. Installation is straightforward, with provisions for mounting that ensure a stable and secure fit. The screw cover design allows for easy maintenance and access to internal wiring and components without compromising the enclosure's protective integrity. Key features and benefits of the nVent VM755-PBM6 include: * **Superior Environmental Protection:** Type 4X rating provides excellent defense against water and dust ingress, as well as corrosion. * **Durable Polyester Construction:** Offers high impact resistance and chemical inertness for long-term performance. * **Versatile Application:** Suitable for junction boxes, control boxes, instrument housings, and pushbutton applications. * **Secure Screw Cover:** Ensures a tight seal and easy access for maintenance. * **Generous Internal Space:** 7.00x5.03x5.03 inch dimensions accommodate various electrical components. * **Trusted Manufacturer:** nVent is a globally recognized leader in electrical enclosure solutions, known for quality and reliability. When selecting an enclosure for critical electrical systems, the nVent VM755-PBM6 stands out for its combination of material durability, protective rating, and application versatility. Its robust design and the reputation of nVent for manufacturing excellence make it a prudent investment for safeguarding sensitive electrical equipment in challenging industrial settings. The light gray color provides good visibility in industrial environments and is a standard aesthetic for many control panels and equipment.
  • nVent VM Series Pushbutton Enclosure, SKU VM755-PBM6
  • Type 4X rated for superior protection against water, dust, and corrosion
  • Constructed from durable light gray polyester for chemical and impact resistance
  • Dimensions: 7.00x5.03x5.03 inches, ideal for various electrical components
  • Flat opaque screw cover design for secure sealing and easy access

Specifications

Application
Corrosive Environments; Controls and Drives
Application
Controls and Drives;Corrosive Environments
Color
Light Gray
Color
Lt Gray
Color
Gray
Color
Grey
Color Code
RAL 7035
Depth
128 mm
Depth
5.03
Finish
Smooth Gloss
Finish
Smooth Low Gloss
Height
178 mm
Height
7 in
Material
Polyester
Material Quality
Polyester
Nema Rating
Type 4X
Protection Rating
NEMA Type 3
Series
VM
Size
7.00x5.03x5.03
Style
22.5 mm IEC sized push-button holes and four non-metallic corner screws
Type
Fiberglass and Thermoplastic Industrial Terminal and Junction Boxes
Type
Fiberglass and Thermoplastic Terminal and Junction Boxes
Weight
0.66 lb
Width
5.03 in
Width
128 mm
