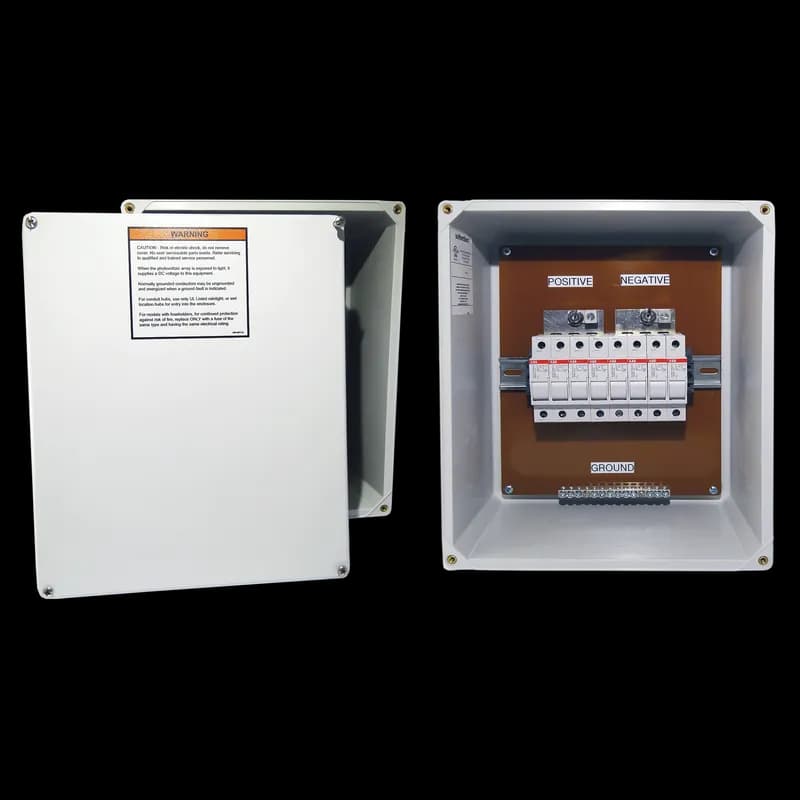

nVent RF-2-4 - RF Solar Combiner Box, 11.32x9.32x5.39, 4 contacts, Fiberglass
nVent

RF-2-4

UPC: 635394585262

Contact for Pricing

Overview

The nVent RF-2-4 Solar Combiner Box is a critical component for efficient and reliable solar photovoltaic (PV) system installations. Designed to aggregate multiple solar strings into a single output, this ungrounded combiner box ensures seamless integration and enhanced system performance. With its robust fiberglass enclosure, the RF-2-4 offers exceptional durability and protection against harsh environmental conditions, including UV radiation, moisture, and extreme temperatures, making it ideal for outdoor applications. This specific model, SKU RF-2-4, features four input contacts, allowing for the consolidation of up to four individual solar strings. The ungrounded design is a key consideration for certain system architectures where grounding at the combiner level is managed elsewhere or not required. The oversized busbars are engineered to minimize resistive losses, thereby improving overall system efficiency and maximizing energy harvest. This attention to detail in design directly translates to better power output and a more cost-effective solar installation. nVent is a globally recognized leader in electrical enclosures and connection solutions, known for its commitment to quality, innovation, and safety. Their solar combiner boxes are built to meet stringent industry standards, providing installers and system owners with peace of mind. The fiberglass construction not only provides superior weather resistance but also offers excellent electrical insulation properties, ensuring safe operation. Key features and benefits of the nVent RF-2-4 Solar Combiner Box include: * **High Durability:** Constructed from robust fiberglass for superior weather and UV resistance. * **Efficient String Combination:** Consolidates up to 4 solar strings, simplifying system wiring. * **Reduced Energy Losses:** Oversized busbars minimize resistive losses for improved efficiency. * **Ungrounded Design:** Suitable for specific system configurations requiring ungrounded combiner boxes. * **Reliable Protection:** Protects internal components from environmental factors, ensuring longevity. * **Easy Installation:** Designed for straightforward mounting and wiring. This combiner box is an essential part of any professional solar PV system, facilitating the safe and efficient collection of power from multiple solar arrays. Its compact dimensions (11.32 x 9.32 x 5.39 inches) allow for flexible mounting options. Whether for residential, commercial, or utility-scale solar projects, the nVent RF-2-4 provides a dependable solution for managing solar string inputs.
  • nVent RF-2-4 Ungrounded Solar Combiner Box
  • Features 4 input contacts for combining solar strings
  • Constructed from durable, weather-resistant fiberglass
  • Oversized busbars minimize resistive losses for improved efficiency
  • Designed for reliable performance in outdoor solar PV installations
  • Connector Type: Screw Clamp
  • Maximum Current Per Terminal: 24A
  • Maximum Fuse Size: 30A

Specifications

Application
Controls and Drives; Power Connections; Power Distribution; Corrosive Environments
Color
Light Gray
Color Code
RAL 7035
Depth
137 mm
Depth
5.39 in
Finish
Smooth Matte
Height
288 mm
Height
11.32 in
Material
Fiberglass
Max Current
96 A
Max Heating Cable Output Wire Size
#6 - 250 kcmil
Max Power Supply Input Wire Size
#6 - #14
Nominal Voltage
1,000 V
Nominal Voltage Type
AC/DC
Number of Contacts
4
Poles
4
Protection Rating
NEMA Type 3
Series
RF
Size
11.32x9.32x5.39
Thickness
3.3 mm
Thickness
0.13 in
Type
Fiberglass and Thermoplastic Industrial Terminal and Junction Boxes
Type
Fiberglass and Thermoplastic Terminal and Junction Boxes
Weight
5.25 lb
Width
237 mm
Width
9.32 in
