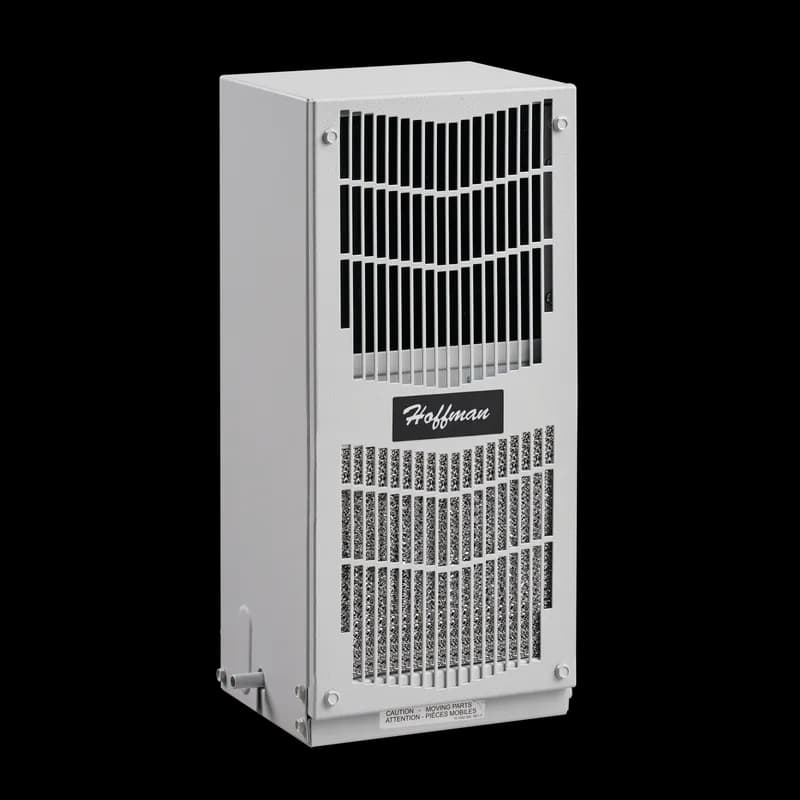

Overview
- Narrow design accommodates 12-inch (300-mm) deep cabinets
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Attractive industrial design with minimal use of visible fasteners
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Narrow design accommodates 12-inch deep cabinets
- R407C, R513A or R134a refrigerants
- Models for 115, 230 and 400/460 3-phase VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
Specifications
Ambient Temperature | 40 Deg C |
Ambient Temperature | -40-131 °F |
Application | Power Distribution; Controls and Drives |
Application | Controls and Drives;Power Distribution |
Color | Light Gray |
Color | Lt Gray |
Color | Gray |
Color Code | RAL 7035 |
Connection Type | Terminal Block |
Corrosion Resistant | No |
Current Rating | 1.04 A |
Depth | 160 mm |
Depth | 6.3 in |
Finish | Powder Coated |
Frequency | 50/60 Hz |
Frequency | 50-60 Hz |
Height | 16.51 in |
Height | 419 mm |
IP Rating | IP54 |
Material | Mild Steel |
Material | Steel |
Max Current | 1.5 A |
Mechanical Advantage | Galvanized Sheet Metal Standard (Optional: Stainless Steel) |
Mounting | Side wall |
Mounting Type | Floor and Wall Mount |
Mounting Type | Floor/Wall Mount |
NEMA Rating | 12 Indoor, dust-resistant |
Nema Rating | Type 12 |
Nominal Capacity Btu/h | 800 Btu/h |
Nominal Capacity Watts | 235 W |
Nominal Voltage | 230 V |
Number Of Phases | 1 |
Operating Temperature | -40-131 |
Operating Temperature | -40-55 |
Operating Temperature | -40-55 °C |
Outdoor Installation | Yes |
Product Family | SpectraCool |
Protection Rating | NEMA Type 12 |
Refrigerant | R513A |
Remote Access Control | No |
Series | SpectraCool Narrow Indoor/Outdoor AC |
Series | SpectraCool Narrow |
Size | Narrow (fits 12-inch deep enclosures) |
Size | 12" (300-mm) deep |
Thickness | 1.21 mm |
Thickness | 18 ga |
Thickness | 51.40mm (2.024") |
Type | Air Conditioners |
Voltage AC | 200-250 V |
Voltage Rating | 220/230 VAC |
Voltage Rating | 230 V |
Weight | 30.1 lb |
Weight | 12 kg |
Width | 7.52 in |
Width | 191 mm |
Package Dimensions (L x W x H) | 11.9 IN x 11.7 IN x 19.8 IN |
Package Dimensions (L x W x H) | 30.226 cm x 29.718 cm x 50.292 cm |
Package Weight (Imperial) | 30.100 L |
Package Weight (Metric) | 13.653 kg |
How to Install the N160126G050 Air Conditioner
This guide provides step-by-step instructions for installing and configuring the N160126G050 air conditioner, ensuring proper setup and functionality.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Gasket kit
- Inspect the air conditioner
Check the air conditioner for any visible damage and ensure it is functioning correctly before installation. If it has been horizontal, allow it to stand upright for at least five minutes.
- Prepare the installation site
Using the cutout dimensions provided in the manual, prepare the air 'IN' and 'OUT' openings and the mounting hole pattern on the enclosure. Ensure adequate clearance for ventilation: 24" in front, 2" on the right side, 8" on the left side, and 6" on top.
- Install gaskets and mount the air conditioner
Apply the provided gaskets to the air conditioner. Securely mount the air conditioner to the enclosure using the provided mounting screws. Use the 'EZ' mount tabs to hold the unit in place while securing.
- Connect the power supply
Refer to the nameplate for electrical requirements. Connect the power cord or wire the unit to a properly grounded power supply. Ensure the circuit is fused according to the specifications in the design data.
- Test the air conditioner
After connecting the power, turn on the air conditioner and verify that the evaporator blower starts running. Allow it to operate for 5-10 minutes and check for any unusual noise or vibration.
- Calibrate the thermostat
Remove the nylon plug from the thermostat and adjust the temperature setting using a screwdriver. Set the cooling temperature to your desired level, ensuring the setting is within the operational range.
