nVent N210226G060 - SpectraCool Narrow Indoor/Outdoor AC with RAC, 2000 BTU 230V, Lt Gray, Steel

nVent N210226G060 SpectraCool Narrow Indoor/Outdoor AC with RAC, 2000 BTU 230V, Lt Gray, Steel

UPC: 783510344481


Documents & Media
Installation Instructions

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The nVent SpectraCool Narrow Indoor/Outdoor Air Conditioner (SKU: N210226G060) provides 2000 BTU cooling at 230V for 50/60 Hz systems. Designed for 12-inch (300-mm) deep enclosures, this compact unit integrates into floor- or wall-mount cabinets where space is limited. The galvanized steel construction with light gray powder coat finish resists corrosion in indoor/outdoor environments. Active condensate management prevents moisture buildup, while a cleanable aluminum mesh filter protects coils for sustained cooling performance. Terminal block connections simplify installation. Ideal for telecommunications shelters, industrial control rooms, data centers, and outdoor enclosures requiring precise thermal management.
  • Narrow design accommodates 12-inch (300-mm) deep cabinets
  • Advanced Corrosion Protection Level 1 (ACP L1) Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
  • Attractive industrial design with minimal use of visible fasteners
  • Advanced Corrosion Protection Level 2 (ACP L2) Protection Includes: Everything that was coated in ACP L1, plus protective coatings applied to the evaporator (interior facing) side and an additional wrap around the thermostat
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
  • Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
  • Energy efficient rotary compressor on N36 and N43 models
  • Dust-resistant condenser coil allows the unit to be run filterless in most applications
  • Galvanized sheet-metal cover for rugged factory and outdoor environments

Specifications

Ambient Temperature
-40-131 °F
Ambient Temperature
40 Deg C
Application
Controls and Drives;Corrosive Environments;Power Distribution
Application
Corrosive Environments; Controls and Drives; Power Distribution
Color
Light Gray
Color
Gray
Color Code
RAL 7035
Corrosion Resistant
No
Depth
251 mm
Depth
9.9 in
Finish
Powder Coated
Frequency
50/60 Hz
Height
20.92 in
Height
531 mm
Material
Mild Steel
Material
Steel
Max Current
3.5 A
Mechanical Advantage
Galvanized Sheet Metal Standard (Optional: Stainless Steel)
Mounting
Side wall
Mounting Type
Wall/Floor Mount
Mounting Type
Wall-mount or floor-mount
NEMA Rating
12 Indoor, dust-resistant
Nominal Capacity Btu/h
2,000 Btu/h
Nominal Capacity Watts
586 W
Nominal Voltage
230 V
Number Of Phases
1
Operating Temperature
-40-55
Operating Temperature
-40-131 °F
Operating Temperature
-40-55 °C
Outdoor Installation
Yes
Outdoor Installation
No
Product Family
SpectraCool
Protection Rating
NEMA Type 12
Refrigerant
R513A
Remote Access Control
Yes
Series
SpectraCool
Series
SpectraCool Narrow
Size
12-inch deep enclosures
Thickness
1.21 mm
Thickness
18 ga
Thickness
51.40mm (2.024")
Type
Air Conditioners
Voltage AC
200-250 V
Voltage Rating
230 V
Weight
25 kg
Weight
60 lb
Width
254 mm
Width
10 IN
Package Dimensions (L x W x H)
12 IN x 12 IN x 36 IN
Package Dimensions (L x W x H)
30.48 cm x 30.48 cm x 91.44 cm
Package Weight (Imperial)
60.000 L
Package Weight (Metric)
27.216 kg

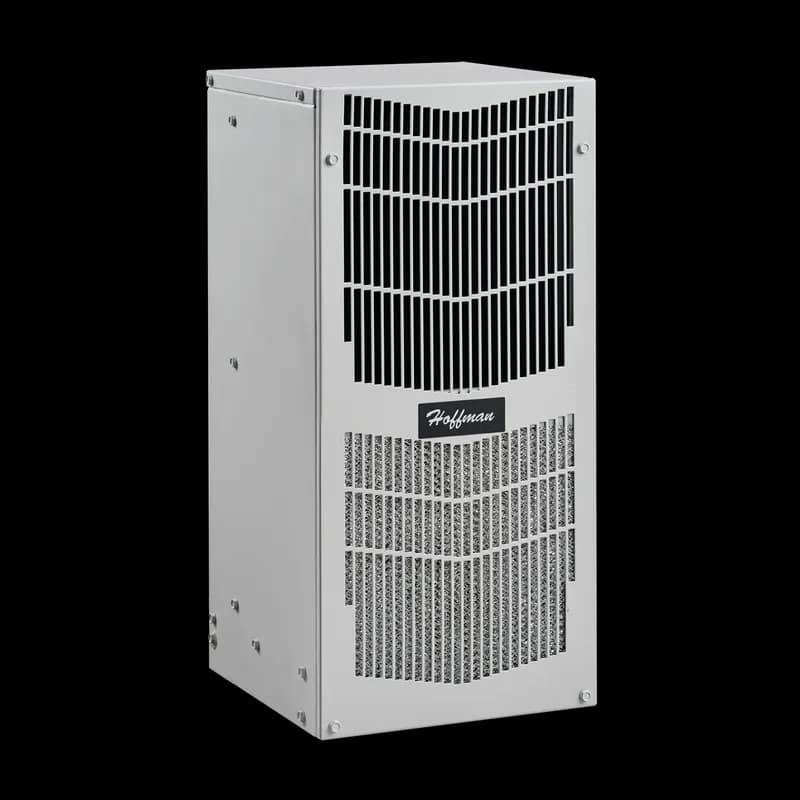

SpectraCool Compact Advanced Corrosion Protection Lvl 1 RAC, 2000BTU 230V, Lt Gray, Steel

N210226G360

SpectraCool Compact Advanced Corrosion Protection Lvl 1 RAC, 2000BTU 230V, Lt Gray, Steel
DTT 6201 230V SC 7035

13256241055

DTT 6201 230V SC 7035

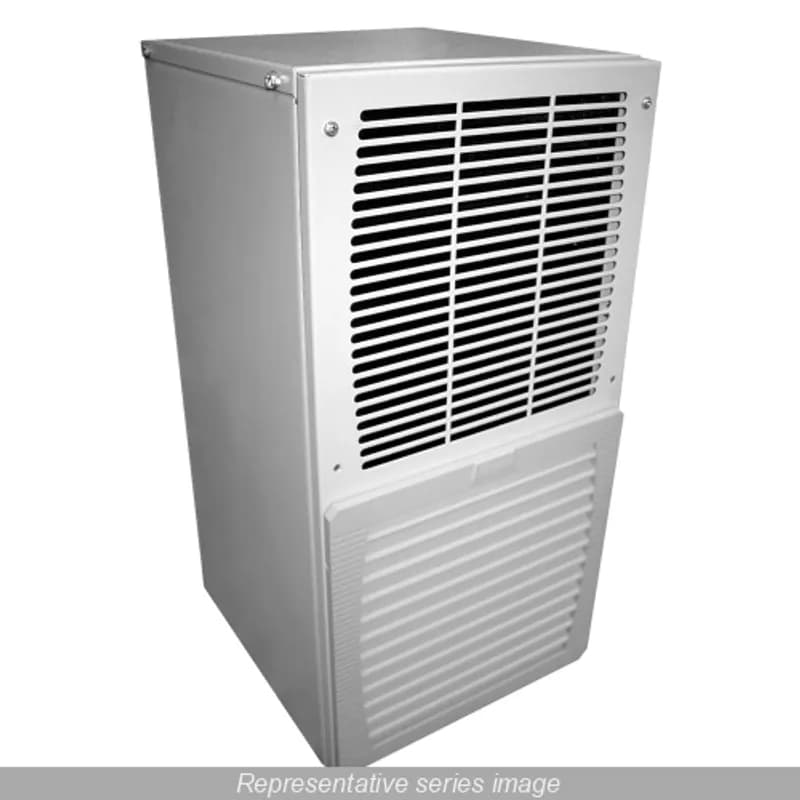

AC UNIT 12-20000BTU 230V N3R/4

DTS3461C230N3GY

AC UNIT 12-20000BTU 230V N3R/4
InRow RC 300mm Chilled Water

ACRC301S

InRow RC 300mm Chilled Water
SpectraCool Narrow Indoor/Outdoor AC, 2000BTU 115V, Lt Gray, Steel

N210216G050

SpectraCool Narrow Indoor/Outdoor AC, 2000BTU 115V, Lt Gray, Steel
SpectraCool Narrow Indoor/Outdoor AC with RAC, 2000 BTU 115V, Lt Gray, Steel

N210216G060

SpectraCool Narrow Indoor/Outdoor AC with RAC, 2000 BTU 115V, Lt Gray, Steel
SpectraCool Narrow Indoor/Outdoor AC, 2000BTU 230V, Lt Gray, Steel

N210226G050

SpectraCool Narrow Indoor/Outdoor AC, 2000BTU 230V, Lt Gray, Steel
SpectraCool Narrow Indoor/Outdoor AC, 2000BTU 115V, Brushed, SS304

N210216G051

SpectraCool Narrow Indoor/Outdoor AC, 2000BTU 115V, Brushed, SS304

How to Install the N210226G060 Air Conditioner

This guide provides step-by-step instructions for installing and configuring the N210226G060 air conditioner, ensuring proper functionality and safety.

Estimated time: 45m

Tools needed:

Screwdriver, Wire strippers, Multimeter

Supplies needed:

Mounting screws, Gasket kit, Drain tube

  1. Inspect the air conditioner

    Check the air conditioner for any visible damage and verify its functionality before mounting. Ensure it has been upright for at least five minutes if it was previously horizontal.

  2. Prepare the mounting location

    Determine if the unit will be surface or recess mounted. Prepare the enclosure opening according to the mounting cutout dimensions, ensuring adequate ventilation and clearance.

  3. Install the gaskets

    Using the provided gasket kit, install gaskets to the air conditioner to ensure a proper seal.

  4. Mount the air conditioner

    Secure the air conditioner to the enclosure using the provided 1/4-20x.625 mounting bolts. Use the 'EZ' mount tabs to hold the unit in place while mounting. Torque each bolt to 65 in./lbs.

  5. Connect the power supply

    Refer to the nameplate for electrical requirements. Connect the power cord or wire the unit to a properly grounded power supply, following national wiring regulations.

  6. Route the drain tube

    Ensure the drain tube is routed without kinks and on a continuous downward slope to prevent overflow of the condensate drain pan.

  7. Test the air conditioner

    After installation, power on the air conditioner and allow it to run for 5-10 minutes. Check for excessive noise or vibration and ensure the evaporator and condenser blowers are operating correctly.

  8. Calibrate the thermostat

    Adjust the thermostat to the desired temperature setting. Remove the nylon plug and use a screwdriver to set the temperature, turning clockwise for cooler and counterclockwise for warmer settings.
