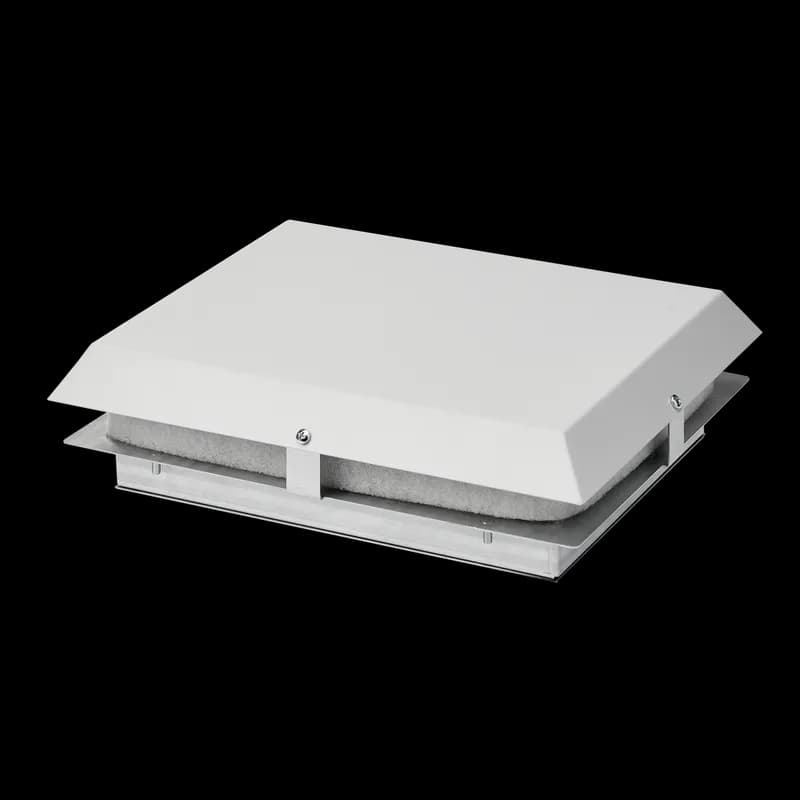

Overview
- Enclosure top mounting
- Bolt in place to ensure a tight seal
- Terminal block connections
- Free airflow up to 266 CFM (452 m3 /hr.) or 348 CFM (591 m3 /hr.)
- Compact dimensions: 13.52" H x 16.27" W x 4.19" D
Specifications
Airflow | 452 m³/h |
Airflow | 266 ft³/min |
Ambient Temperature | 14-131 F |
Ambient Temperature, Maximum | 131 F |
Ambient Temperature, Maximum | 55 C |
Ambient Temperature, Minimum | 1 F |
Ambient Temperature, Minimum | -17.2222 C |
Amperage Rating | 0.82 A |
Application | Controls and Drives;Power Distribution |
Application | Power Distribution; Controls and Drives |
Blade Material | Polyamide 66 Resin |
Blade Size | 7.48 in |
Blade Size | 189.992 mm |
Color | Lt Gray |
Color | Light Gray |
Color | Gray |
Color | Grey |
Color Code | RAL 7035 |
Depth | 106 mm |
Depth | 4.18 in |
Fan Speed | 2980 RPM |
Finish | Powder Coated |
Flow Rate | 250 CFM |
Frequency Rating | 50/60 Hz |
Frequency Rating, Minimum | 50 Hz |
Height | 12.66 in |
Height | 322 mm |
Housing Material | Mild Steel |
IP Rating | IP54 |
Material | Steel |
Material | Mild Steel |
Max Current | 0.48 A |
Motor Insulation | TOTALLY ENCLOSED WITH CLASS F INSULATION |
Motor Type | AC |
Mounting | Top Mount |
Mounting Type | Top-Mount |
Nominal Voltage | 230 V |
Operating Temperature | 14-131 °F |
Operating Temperature | -10-55 °C |
Operating Temperature | -40 to 60 |
Phase | 1 |
Phase | 1-Phase |
Power | 108 Watts |
Series | HR |
Shaft Diameter | 1.063 in |
Shaft Diameter | 27.0002 mm |
Size | 12.66 x 15.81 x 4.18 inch |
Size | 266 CFM |
Sound Pressure Level | 68 dBA |
Type | Fans and Filter Fans |
Voltage AC | 200-250 V |
Voltage Rating | 230 Volts |
Voltage Rating | 230V |
Weight | 7.8 kg |
Weight | 14.8 lb |
Width | 15.81 in |
Width | 402 mm |
Package Dimensions (L x W x H) | 19.5 IN x 16.2 IN x 8.1 IN |
Package Dimensions (L x W x H) | 49.53 cm x 41.148 cm x 20.574 cm |
Package Weight (Imperial) | 14.800 L |
Package Weight (Metric) | 6.713 kg |
How to Install the Top-Mount Filter Fan
This guide provides step-by-step instructions for installing a top-mount filter fan in an enclosure, ensuring proper airflow and cooling.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, M6 hex nuts, Gasket, Air filter
- Prepare the enclosure
Apply the cutout template to the top of the enclosure at the desired location. Cut out the hole in the enclosure carefully.
- Install the filter fan
Remove the cowl top from the top-mount filter fan. Apply the gasket to the enclosure, then insert the filter fan over the gasket into the cutout hole. Secure it with M6 hex nuts and torque to 35 in/lbs (4 Nm).
- Wire the filter fan
Follow the wiring diagram provided to connect the filter fan. Ensure all connections are secure and verify the wiring with a multimeter.
- Install the air filter and cowl top
Install the air filter around the filter fan and re-install the cowl top to complete the installation.
- Verify clearance
Ensure that the installed filter fan and grilles have a minimum clearance of 7.00 inches (178 mm) from any obstruction.
