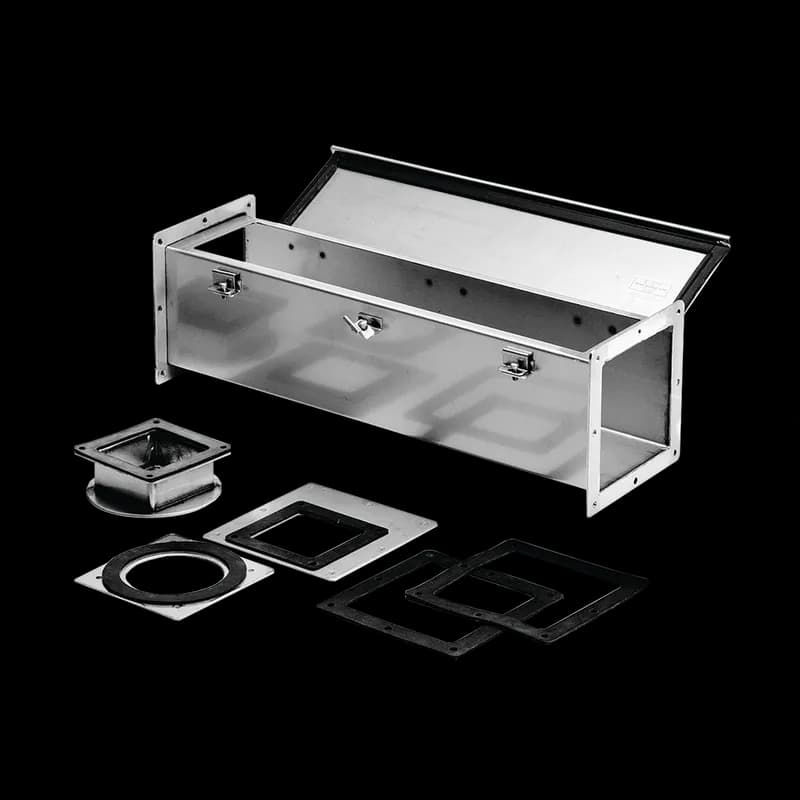

nVent F44W24SS Straight Section Feed-Through Type 4X, 4.00x4.00x24.00, Brushed, SS304
UPC: 783510154103
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Feed-Through Stainless Steel Hinged-Cover, Type 4X Straight Sections are used for enclosing wire and cable in wireway runs
- Its water-proof and stainless steel features makes it suitable for frequently hosed down, very wet or highly corrosive applications
- The traditional closed-loop design has an opening on one side for easy access to wires and cables
- Sections are available in lengths from 12 inch to 120 inch
- For modification and customization, Type 316 stainless steel covers and bodies available upon request
- Compatible with modular wireway systems (6" to 120" lengths available)
Specifications
Application | Corrosive Environments;Hygienic Environments;Power Distribution |
Color | Brushed |
Color | Unpainted |
Depth | 13 IN |
Depth | 610 mm |
Depth | 24 in |
Finish | No. 2B |
Height | 44 IN |
Height | 4 IN |
Height | 102 |
IP Rating | IP66 |
Material | SS304 Stainless Steel |
Material | Stainless Steel 304 |
Modification Services | Yes |
NEMA Rating | 4X Watertight, corrosion-resistant |
NEMA Rating | 4X |
Nema Rating | Type 4X |
Protection Rating | NEMA Type 12 |
Series | nVent |
Size | 4.00x4.00x24.00 |
Thickness | 16 ga |
Thickness | 1.59 mm |
Thickness | 51.40mm (2.024") |
Type | Straight Section |
Type | Industrial Feed-Through Wireway;Straight Section |
Type Number | Type 4X |
Weight | 9 lb |
Width | 4 IN |
Width | 102 |
Width | 23 IN |
Wireway | Stainless Steel Feed-Through NEMA Type 4X Wireway |
Package Dimensions (L x W x H) | 22.5 IN x 6.2 IN x 6.1 IN |
Package Dimensions (L x W x H) | 57.15 cm x 15.748 cm x 15.494 cm |
Package Weight (Imperial) | 9.000 L |
Package Weight (Metric) | 4.082 kg |
T70BEI8
The T-70 raceway Base provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-70 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 8 ft and Electric Ivory.
How to Install the Feed-Through Wireway
This guide provides step-by-step instructions for installing and configuring the Feed-Through Wireway, ensuring proper assembly and connection.
Estimated time: 1h
Tools needed:
Screwdriver, Drill, Wire strippers
Supplies needed:
Mounting screws, Gaskets, Nuts, Lockwashers
- Assemble the wireway sections
Place a gasket between the flanges of the wireway sections and secure them using screws and nuts as shown in the assembly details.
- Install the telescope fitting
Assemble the parts of the telescope fitting in the correct order, insert it into the straight section, and adjust to the desired length. Ensure the gasket is properly positioned against the flange.
- Anchor the telescope fitting
Drill .25 inch diameter holes through the straight section and telescope fitting. Install .25−20x.5 screws from the outside and secure with cap nuts and lockwashers.
- Cut the wireway to length
Cut the wireway body to the desired length, ensuring a square cut. Weld an extra flange to the body and grind off any burrs or sharp edges.
- Install the swivel nipple
Position the wireway section, flange gasket, swivel ring, round swivel gasket, and swivel nipple in order. Secure with clips, screws, and nuts.
- Make box entries
Cut out the necessary openings in the enclosure for box entries. Position the box connector and gasket inside the enclosure, and ensure another gasket is placed between the wireway and the enclosure.
- Install hangers
Assemble the hangers as shown in the details, ensuring they do not fit between adjacent wireway flanges. Attach them to the wireway flanges in various positions.
