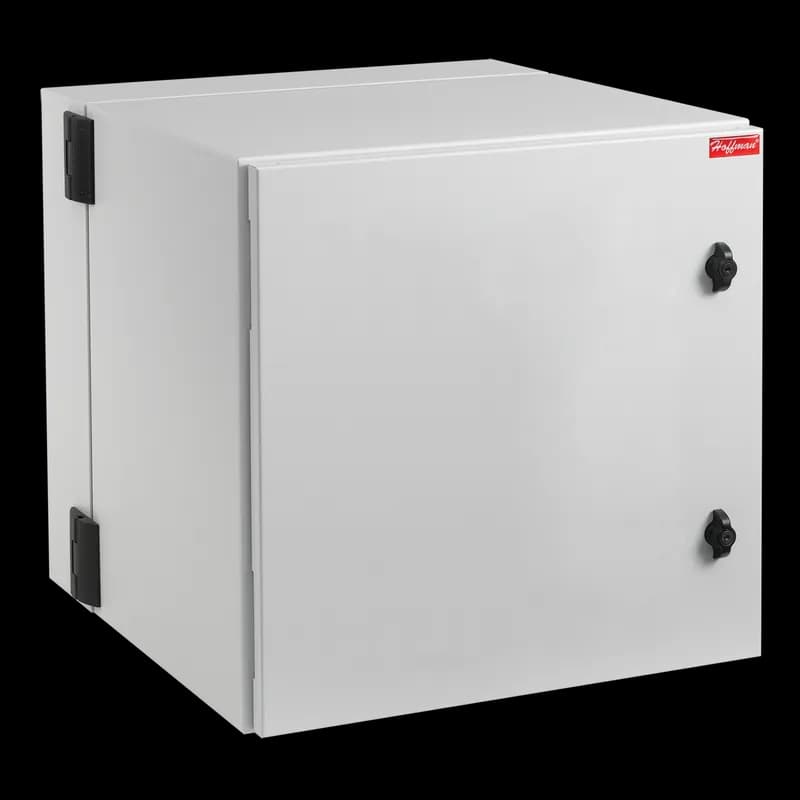

nVent EDH16U6055 - Double-Hinged Enclosure 16U, Bulletin DEC3 (Double Hinged Enclosures - Double Hinged Enclosures), Size/Dims: 767x600x550mm, Material: Steel, Finish: Lt Gray
nVent

EDH16U6055

UPC: 783510401801

Contact for Pricing

Overview

The nVent EDH16U6055, a 16U double-hinged steel enclosure from the Bulletin DEC3 series, offers robust protection for sensitive industrial equipment. Measuring 767x600x550mm and finished in light gray (RAL 7035), this enclosure is constructed from steel and features a double-insulated design conforming to EN61439-1 with a rated insulation voltage of Ui=1000V. It provides superior ingress protection, complying with IP 65 and Type 4, 4X, 12, 13 ratings for double-door configurations, ensuring defense against dust and water. The enclosure boasts an IK 10 impact resistance rating, safeguarding internal components from physical damage. Its self-extinguishing and halogen-free characteristics enhance safety. Ideal for industrial automation, control systems, and telecommunications, the double-hinged design facilitates easy access for maintenance and upgrades, minimizing downtime. Certifications include CE, CSA, and GOST, with cULus/UL listing for single-door configurations. The delivery includes the enclosure with door, fixing screws for the mounting plate, and wall mounting brackets. The lock cylinder is sold separately. This enclosure is suitable for wall-mounted installations in demanding environments where reliability and compliance are paramount.
  • 16U Double-Hinged Steel Enclosure (SKU: EDH16U6055)
  • Dimensions: 767x600x550mm
  • IP 65 | TYPE 4, 4X, 12, 13 Protection
  • IK 10 Impact Resistance
  • Double Insulated (EN61439-1), Ui=1000V

Specifications

Color
Light Gray
IP Rating
IP65
Material
Steel
Mounting Type
Wall Mount
Nema Rating
Type 4, 4X, 12, 13
Series
Bulletin DEC3
Size
767x600x550mm
Package Dimensions (L x W x H)
34.5 IN x 27.5 IN x 26 IN
Package Dimensions (L x W x H)
87.63 cm x 69.85 cm x 66.04 cm
Package Weight (Imperial)
100.000 L
Package Weight (Metric)
45.360 kg
