Overview

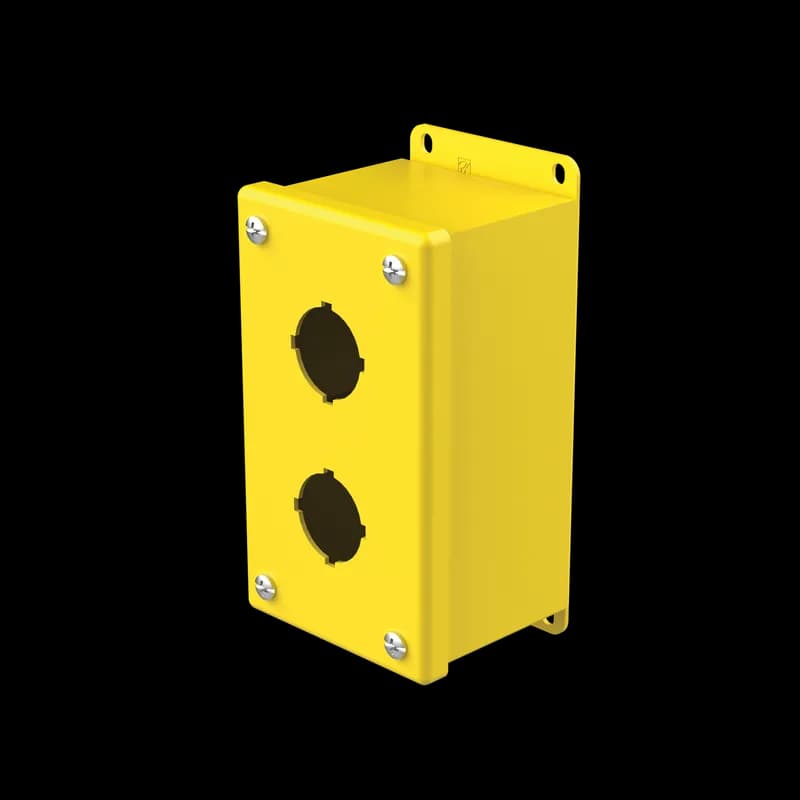

- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
- 30.5-mm or 22.5-mm size holes
Specifications
Application | Controls and Drives |
Color | Gray |
Color Code | ANSI 61 |
Depth | 13 IN |
Depth | 2.75 |
Depth | 70 |
Finish | Powder Coated |
Height | 44 IN |
Height | 5.75 |
Height | 146 |
Hole Quantity | 2 |
Hole Size | 1.2-1.2 in |
Hole Size | 14.3-14.3 |
Hole Size | 30.5 mm mm |
IP Rating | IP65 |
Material | Mild Steel;Steel |
Material | Mild Steel |
Modification Services | Yes |
Mounting | Wall Mounting Brackets Available |
Mounting | 6.25 x 2.38 in |
NEMA Rating | 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Number Of Holes | 2 |
Overall Dimensions | 6.75 x 3.47 in |
Overall Dimensions | 114 x 88 mm |
Product Family | PushButton |
Protection Rating | NEMA Type 12 |
Size | 2PB x 30.5mm |
Thickness | 1.52 mm |
Thickness | 16 ga |
Thickness | 51.40mm (2.024") |
Type | Mild Steel Industrial Terminal and Junction Boxes |
Type | Mild Steel Terminal and Junction Boxes |
Type Number | Type 13 |
Weight | 2.1 lb |
Width | 3.25 |
Width | 83 |
Width | 23 IN |
Package Dimensions (L x W x H) | 6.6 IN x 3.4 IN x 2.9 IN |
Package Dimensions (L x W x H) | 16.764 cm x 8.636 cm x 7.366 cm |
Package Weight (Imperial) | 2.100 L |
Package Weight (Metric) | 0.953 kg |
