Contact for Pricing
Overview

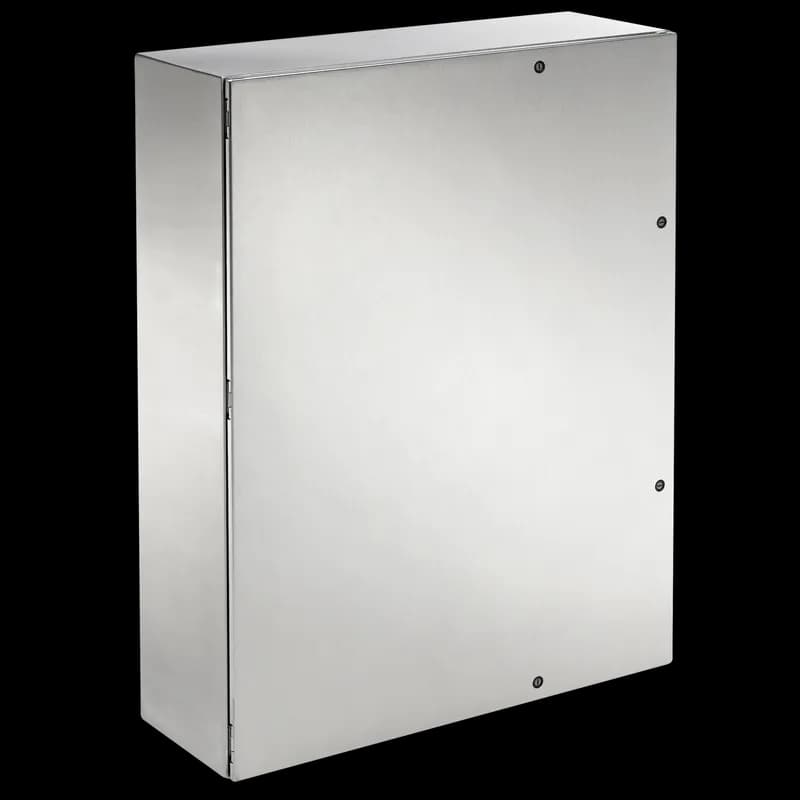

- Constructed from high-grade 316L stainless steel for superior corrosion resistance.
- Type 4X rated for protection against water and dust ingress in harsh environments.
- Features a secure three-point latching system with a convenient quarter-turn mechanism.
- Streamlined styling with a brushed stainless steel finish for enhanced durability and aesthetics.
- Generous dimensions (42"x30"x10") provide ample space for various industrial equipment.
- Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
- Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
- Quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
Specifications
Application | Controls and Drives;Corrosive Environments |
Application | Controls and Drives; Corrosive Environments |
Body Thickness | 1.98 mm |
Body Thickness | 14 ga |
Body Thickness | 16 ga |
Color | Brushed |
Color | Unpainted |
Conductive Panel | CP4230G |
Depth | 10 IN |
Depth | 254 mm |
Door Thickness | 14 ga |
Door Thickness | 1.98 mm |
Finish | Brushed #4 |
Height | 42 mm |
Height | 1,067 mm |
Ip Rating | IP66/IP67 |
IP Rating | IP66 |
Latch Quantity | 1 |
Latch Type | 3-Point |
Material | 316L Stainless Steel |
Material | Stainless Steel 316L |
Material Quality | Stainless Steel 316 |
Material Quality | Stainless Steel V4A |
Modification Services | Yes |
Mounting | Wall Mounting Brackets Available |
Mounting | 40.50 x 28.50 in |
Mounting Type | Wallmount |
NEMA Rating | 12 Indoor, dust-resistant |
NEMA Rating | 12 |
Nema Rating | Type 4X |
Panel | CP4230 |
Panel Size | 40.20 x 28.20 in |
Panel Size | 1021 x 716 mm |
Product Family | Concept |
Protection Rating | NEMA Type 3R |
Protection Rating | NEMA Type 12 |
Series | Concept Enclosure |
Size | 42x30x10 inches |
Style | 3-Point |
Type | Stainless Steel Wall Mounted Industrial Enclosures |
Type Number | Type 3R |
Weight | 95 lb |
Width | 30 IN |
Width | 762 mm |
Package Dimensions (L x W x H) | 47.25 IN x 31.5 IN x 11.75 IN |
Package Dimensions (L x W x H) | 120.015 cm x 80.01 cm x 29.845 cm |
Package Weight (Imperial) | 95.000 L |
Package Weight (Metric) | 43.092 kg |
